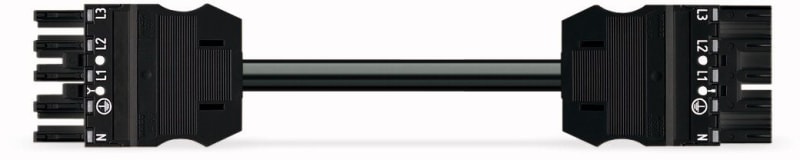

KBL3M 5X1,5 PLUG/Plinth
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 771-9995/006-301 Winsta Pluggable cabling system, quick-mounting system.
Technical Specifications
- Manufacturer part number (MPN)
- 771-9995/006-301
- EAN / GTIN
- 4044918588447
- Sales unit
- pcs
- Halogen free
- No
- Nominal cross section conductor
- 1.5 mm²
- Cable type
- H05VV-F
- Housing colour
- Black
- Type of locking
- Separate
- Rated current
- 16 A
- Rated voltage
- 400 V
- Total length
- 3000 mm
- Number of poles
- 5
- Housing material
- Polyamide (PA)
- Colour outer sheath
- Black
- Cable diameter
- 9.3–11.6 mm
- Surface treatment contacts
- Tinned
- Pollution degree
- 3
- Mechanical coding
- Yes
- Rated surge voltage
- 6 kV
- Continuity resistance
- 1 mOhm
- Contact material
- CuSn
- Degree of protection (IP)
- IP20
- Pole codification
- 3, N, PE, 2, 1
- Colour coding/contact insert
- Black
- Fire load
- 25.08028 kWh
- Type side 1
- Bus
- Type side 2
- Plug
- Insulating piece permanent temperature-resistant
- 105 °C
- Conductor end treatment
- Ultrasonic compressed wire ends
- Cable permanent temperature-resistant to
- 70 °C
- Max. operating temperature at conductor
- 85 °C
- Reaction-to-fire according to EN 13501-6
- Class: Eca
- RAL-number coding/contact insert
- 9004
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 4044918588447
- SAP 1000094382
- Code 8918078
Product Documentation
