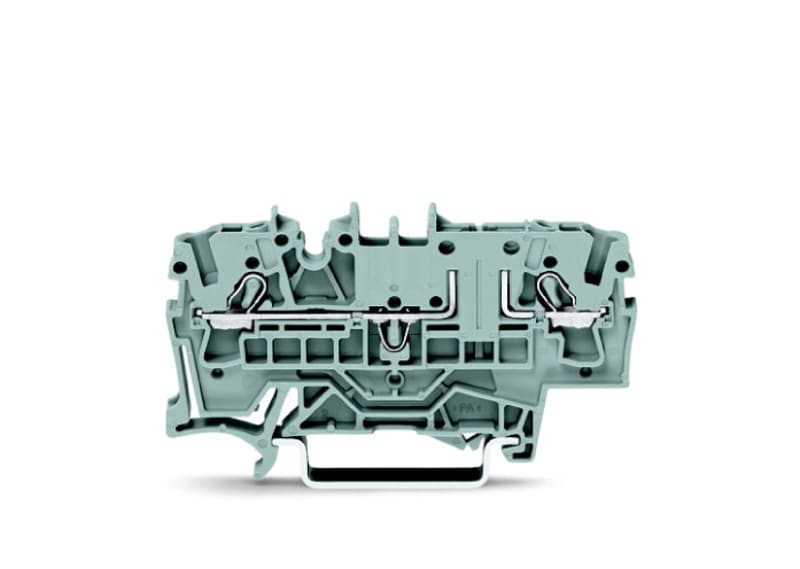

WAGO TOPJOB S 2-Conductor Carrier Terminal Block 2.5 mm² for DIN Rail 35x15 and 35x7.5, Grey
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 2002-1661 is a 2-conductor carrier terminal block from the TOPJOB S range, rated 16 A at 400 V for 2.5 mm² wiring with Push-in CAGE CLAMP spring connection. The 5.2 mm wide grey housing snaps onto DIN 35x15 and DIN 35x7.5 rail and accepts solid conductors from 0.75 to 4 mm² and stranded conductors from 0.25 to 2.5 mm². The polyamide body is UL 94 V0 rated for continuous operation from -60 to +105 °C. Supplied in boxes of 50.
Technical Specifications
- Manufacturer part number (MPN)
- 2002-1661
- EAN / GTIN
- 4055143897143
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Clamping units
- 2
- Total number of potentials
- 2
- Number of levels
- 1
- Number of jumper slots
- 2
- Width
- 5.2 mm / 0.205 inches
- Height
- 66.1 mm / 2.602 inches
- Depth from upper-edge of DIN-rail
- 32.9 mm / 1.295 inches
- Mounting type
- DIN-35 rail
- Marking level
- Center/side marking
- Color
- gray
- Material group
- I
- Insulation material (main housing)
- Polyamide (PA66)
- Flammability class per UL94
- V0
- Fire load
- 0.14 MJ
- Weight
- 7 g
- Processing temperature
- -35 … +85 °C
- Continuous operating temperature
- -60 … +105 °C
- Product Group
- 22 (TOPJOB S)
- PU (SPU)
- 50 pcs
- Packaging type
- box
- Country of origin
- CN
- Customs tariff number
- 85369010000
- UNSPSC
- 39,121,410
- eCl@ss 10.0
- 27-14-11-20
- eCl@ss 9.0
- 27-14-11-20
- ETIM 9.0
- EC000897
- ETIM 10.0
- EC000897
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- Conductor cross-section
- 2.5 mm²
- MPN
- 2002-1661
- Connectable conductor cross section solid-core
- 0.75–4 mm²
- Connectable conductor cross section multi-wired
- 0.25–2.5 mm²
- Rated current In
- 16 A
- Rated voltage
- 400 V
- Type of electrical connection 1
- Spring clamp connection
- Type of electrical connection 2
- Spring clamp connection
- Number of clamp positions per level
- 2
- Mounting method
- DIN rail (top hat rail) 35 mm
- Material insulation body
- Thermoplastic
- Operating temperature
- 105 °C
- Depth
- 32.9 mm
- Explosion-tested version 'Ex e'
- Yes
- Closing plate required
- Yes
- Colour
- Grey
- Internally connected stages
- No
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4055143897143
- SAP 1201001864
- Code 84340298
Product Documentation
More from WAGO
WAGO
WAGO Solid-State Relay Module 24 VDC Input, 0-24 VDC Output, 3 A
857-724
WAGO
WAGO TOPJOB S Three-Level Installation Terminal Block N/L/PE, 2.5 mm², Grey
2003-7646
WAGO
Electronic circuit breaker, 8-Channel, 24 VDC input voltage, adjustable 2 … 10 A, 10,00 mm²
787-1668
WAGO
Cable 2M 3X15MM Black
771-9993/006-201
WAGO
End and intermediate plate; 1 mm thick; gray (2004-1391)
WAGO
Supply Filter; 24 VDC
750-626
WAGO
Innpluglemme 4X4MM² in blister
2773-404/995-015
WAGO
Energy meter (MID), 65A, 3X230/400V, 50Hz, 2 x S0 interface, 4PS
879-3020
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 2002-1661?
- 2002-1661 can be ordered from cballast.com as a WAGO catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this WAGO product?
- The manufacturer part number is 2002-1661.
- What is the HS code for 2002-1661?
- The customs tariff (HS) code for 2002-1661 is 8536.90.
- Who manufactures 2002-1661?
- 2002-1661 is a WAGO product in the Electrical Components range.
- Is a datasheet available for 2002-1661?
- Yes — the 2002-1661 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 2002-1661?
- The minimum order quantity is 1.
- Is 2002-1661 available?
- Yes — 2002-1661 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
