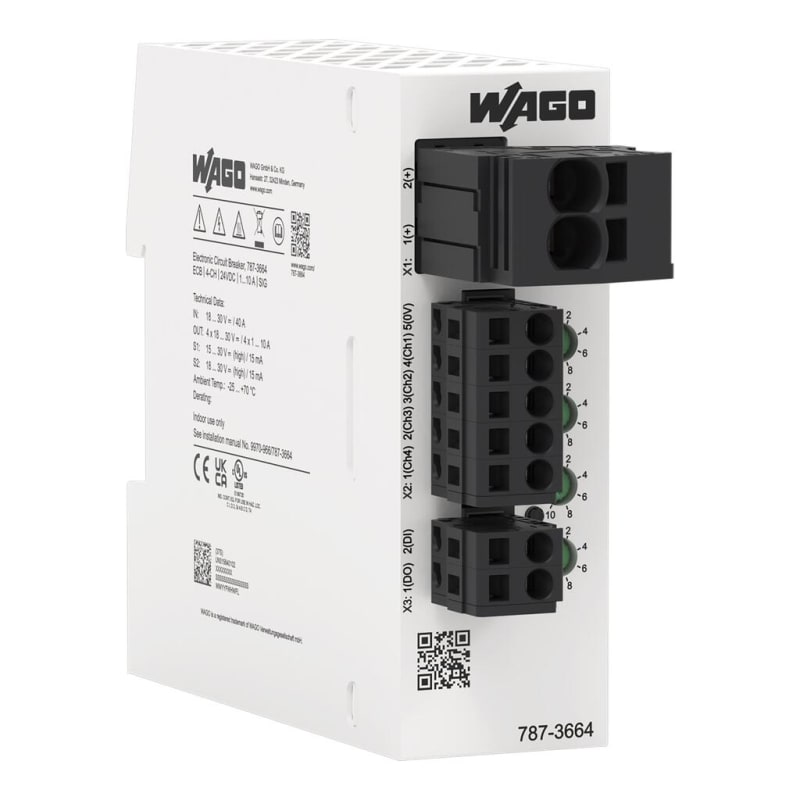

Electronic circuit breaker; 4-Channel; 24 VDC input voltage; adjustable 1 … 10 A; Signal contact
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 787-3664 Manufacturer description: Electronic circuit breaker; 4-channel; 24 VDC input voltage; adjustable 1 … 10 A; Signal contact. Electronic circuit breaker; 4-channel; 24 VDC input voltage; adjustable 1 … 10 A; Signal contact.
Technical Specifications
- Manufacturer part number (MPN)
- 787-3664
- EAN / GTIN
- 4066966493764
- HS code
- 8536.90
- Sales unit
- pcs
- Isolation voltage (connectors – housing)
- 0.5 kVDC
- Protection class
- III
- Protection type
- IP20; per EN 60529
- Reverse voltage protection
- No
- Resistance to reverse feed
- ≤ 35 VDC
- Pollution degree
- 2
- Transient suppression (primary)
- Suppressor diode (33 V)
- Parallel operation of single channels
- Permissible
- Series operation
- No
- Width
- 32 mm / 1.26 inches
- Height
- 95 mm / 3.74 inches
- Depth from upper-edge of DIN-rail
- 117.5 mm / 4.626 inches
- Mounting type
- DIN-35 rail
- Fire load
- 2.185 MJ
- Weight
- 152.7 g
- Ambient temperature (operation)
- -25 … +70 °C
- Ambient temperature (storage)
- -25 … +85 °C
- Relative humidity
- 5 … 96 % (no condensation permissible)
- Derating
- ≥ 50 °C (see instruction manual)
- Conformity marking
- CE
- Standards/specifications
- EN 61000-6-2 | EN 61000-6-3 | UL 61010-2-201 | UL 2367
- PU (SPU)
- 1 pcs
- Packaging type
- Box
- Country of origin
- IN
- Customs tariff number
- 85362010900
- UNSPSC
- 39,121,634
- ETIM 9.0
- EC001440
- ETIM 10.0
- EC001440
- ECCN
- NO US CLASSIFICATION
- CAS-No.
- 11120-22-2 | 1303-86-2 | 1317-36-8 | 7439-92-1
- REACH Candidate Strip Substance
- Diboron trioxide | Lead | Lead monoxide | Lead silicate
- RoHS Compliance Status
- Compliant,With Exemption
- RoHS Exemption
- 6(c) | 7(a) | 7(c)-I | 7(c)-II
- SCIP notification number (Austria)
- 770d0258-4fab-4b14-9c3b-8c07d2a2de62
- SCIP notification number (Belgium)
- 808de5c5-bfd4-463b-a91a-1d79bdd2a549
- SCIP notification number (Bulgaria)
- fd5ee284-c087-4d01-b003-b36bc59328d9
- SCIP notification number (Czech Republic)
- 086b0409-eaf9-4fa5-9cfc-8fa3f2633649
- SCIP notification number (Denmark)
- ccd5ad61-d492-409c-838b-006109b18149
- SCIP notification number (Finland)
- 03978a26-1fb5-4c30-ba89-22c9c9249c5a
- SCIP notification number (France)
- 89cbabec-d00c-4dfc-9803-bb5c106334f0
- SCIP notification number (Germany)
- 06760d83-7273-42a9-9ce9-07ddd1817cc1
- SCIP notification number (Hungary)
- 01a51be0-50c4-48ef-8dd7-25d668e6ac5f
- SCIP notification number (Italy)
- a0f3a029-f535-4074-b652-0920bdb89b42
- SCIP notification number (Netherlands)
- 7f04007f-93e7-47a7-8896-cb44a0762e97
- SCIP notification number (Poland)
- d9c6557a-34e9-431c-8ea4-73801fdf7ed0
- SCIP notification number (Romania)
- 376f4cf4-ede3-498d-9624-ae3494364574
- SCIP notification number (Sweden)
- 68a94c82-e3c9-4324-87cb-112be317bd67
- MPN
- 787-3664
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4066966493764
- SAP 1200778637
- Code 83936667
Product Documentation
More from WAGO
WAGO

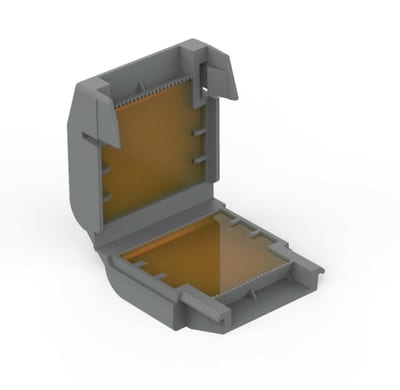

Gel box, 221 Series, max. 6 mm² connectors, Size 2
207-1432
WAGO
electronic fuse, 8-Channels, 0,5-6A
787-1668/106-054
WAGO
Junction box, 221 Series, max. 4 mm² connectors
207-4301
WAGO

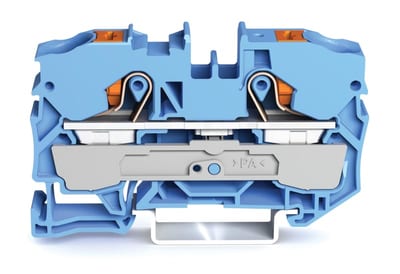

2-Conductor through terminal block, 10 mm², for DIN-rail 35 x 15 and 35 x 7.5 (2210-1204)
WAGO
Relay module, Nominal input voltage: 24 VDC, 2 changeover contacts, Limiting continuous current: 8 A (788-312)
WAGO
Relay module, Nominal input voltage: 230 V AC/DC, 1 changeover contact, Module width: 6 mm
857-358
WAGO
CABLE.1M 5X1,5 Plinth/PLUG
771-9985/006-101
WAGO

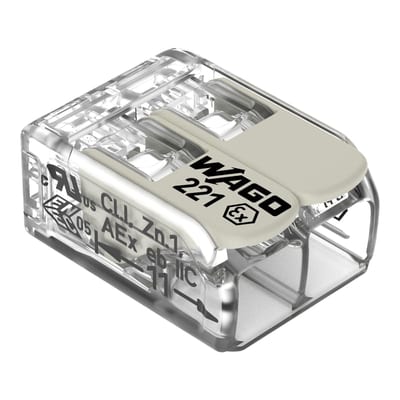

Splicing connector with levers, for all conductor types, max. 4 mm², 2-Conductor (221-482)
