electronic fuse, 8-Channels, 0,5-6A
Pricing
Request a quote
We reply within 24 hours
Product Description

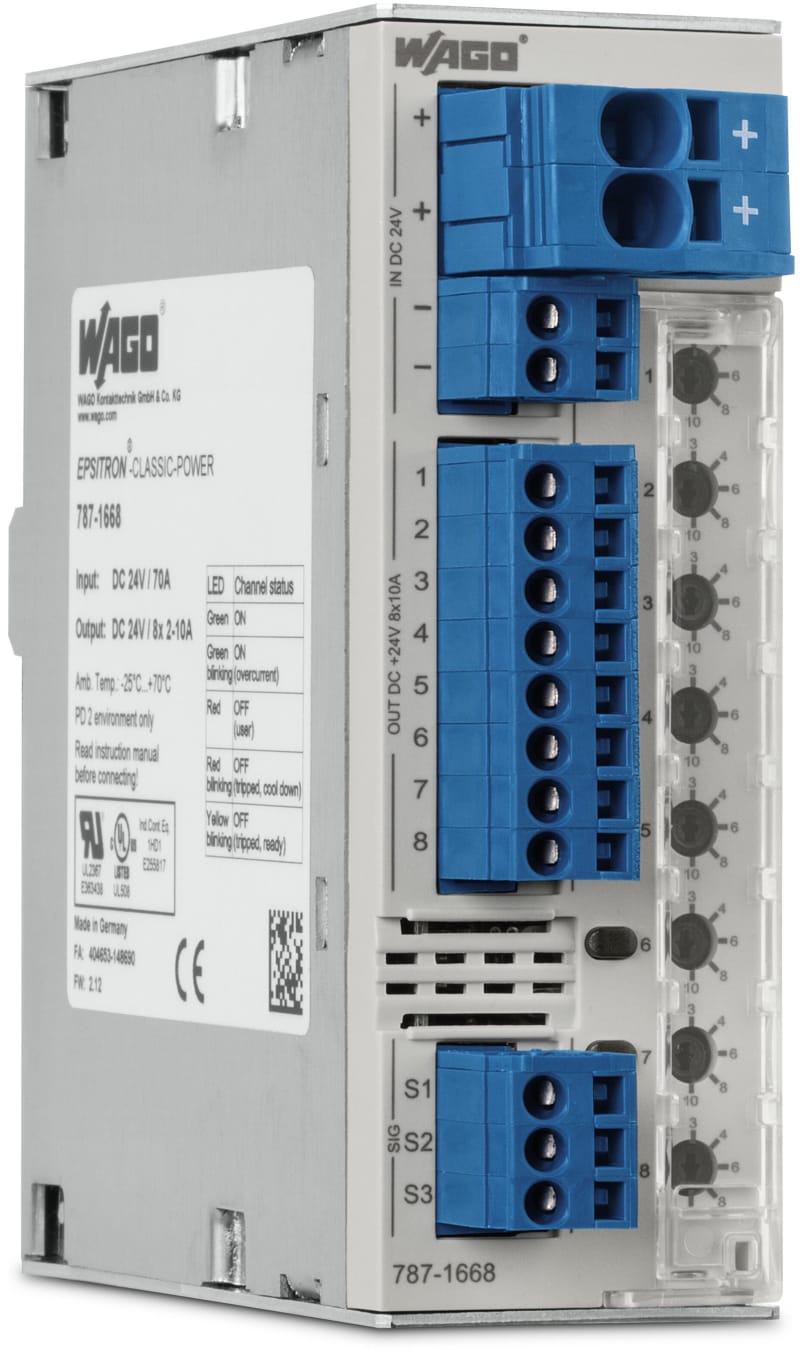

WAGO 787-1668/106-054 Electronic fuse, 8-channels, 0,5-6A.
Technical Specifications
- Manufacturer part number (MPN)
- 787-1668/106-054 EAN / GTIN: 4055143380423 HS code: 8536.90 Sales unit: pcs Isolation voltage (connectors – housing): 0.5 kVDC Protection class: III Protection type: IP20; per EN 60529 Reverse voltage protection: No Resistance to reverse feed: ≤ 35 VDC Pollution degree: 2 Transient suppression (primary): Suppressor diode (33 V) Parallel operation of single channels: Not permitted Series operation: No MTBF: > 500,000 h (per IEC 61709) Width: 42 mm / 1.654 inches Height: 127 mm / 5 inches Depth from upper-edge of DIN-rail: 142.5 mm / 5.61 inches Mounting type: DIN-35 rail Fire load: 0.689 MJ Ambient temperature (operation): -25 … +70 °C Ambient temperature (storage): -25 … +85 °C Relative humidity: 5 … 96 % (no condensation permissible) Derating: ≥ 50 °C (see instruction manual) Conformity marking: CE Standards/specifications: EN 61000-6-2 | EN 61000-6-3 | UL 508 | UL 2367 | DNV Product Group: 6 (INTERFACE ELECTRONIC) PU (SPU): 1 pcs Packaging type: Box Customs tariff number: 85362010900 UNSPSC: 39,121,601 eCl@ss 10.0: 27-37-18-02 eCl@ss 9.0: 27-37-18-02 ETIM 9.0: EC001440 ETIM 10.0: EC001440 ECCN: NO US CLASSIFICATION RoHS Compliance Status: Compliant,No Exemption
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4055143380423
- SAP 1200538499
- Code 82824066
Product Documentation
More from WAGO
WAGO
Junction box, 221 Series, max. 4 mm² connectors
207-4301
WAGO
2-Conductor through terminal block, 10 mm², for DIN-rail 35 x 15 and 35 x 7.5 (2210-1204)
WAGO
Relay module, Nominal input voltage: 24 VDC, 2 changeover contacts, Limiting continuous current: 8 A (788-312)
WAGO
Relay module, Nominal input voltage: 230 V AC/DC, 1 changeover contact, Module width: 6 mm
857-358
WAGO
CABLE.1M 5X1,5 Plinth/PLUG
771-9985/006-101
WAGO
Splicing connector with levers, for all conductor types, max. 4 mm², 2-Conductor (221-482)
WAGO

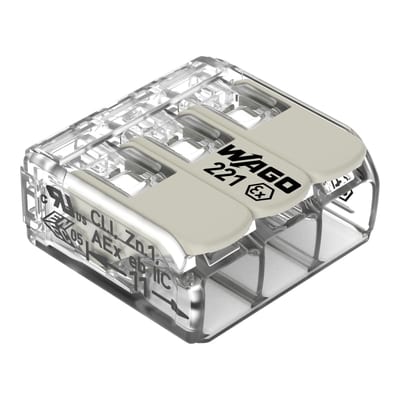

Splicing connector with levers, for all conductor types, max. 4 mm², 3-Conductor (221-483)
WAGO

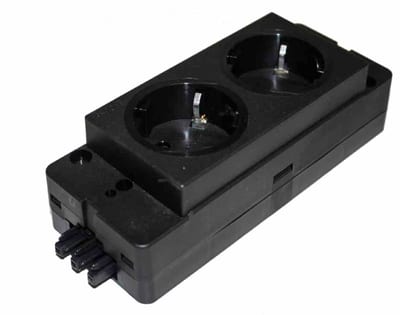

Evoline Express socket Black
