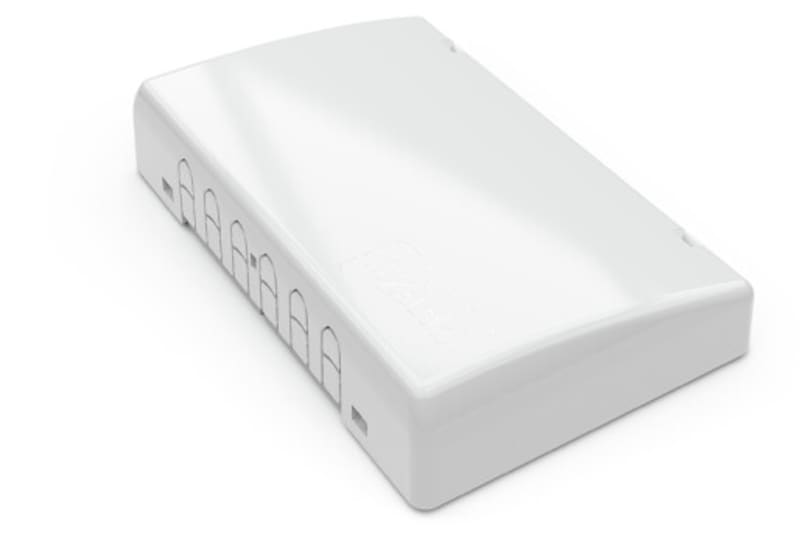

Junction box, 221 Series, max. 4 mm² connectors
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 207-4301 Manufacturer description: Junction box; Branch; for multicore cables; 221 Series; max. 4 mm² connectors; without splicing connectors; white. Junction box for WAGO 221-series.
Technical Specifications
- Manufacturer part number (MPN)
- 207-4301
- EAN / GTIN
- 4055144019247
- Sales unit
- pcs
- Width
- 225 mm / 8.858 inches
- Height from the surface
- 46 mm / 1.811 inches
- Depth
- 145 mm / 5.709 inches
- Protection type
- IP20
- Color
- white
- Cover color
- white
- Insulation material (main housing)
- Polycarbonate (PC)
- Flammability class per UL94
- V0
- Weight
- 422.7 g
- Ambient temperature (operation)
- -25 … +85 °C
- Ambient temperature (storage)
- -25 … +85 °C
- PU (SPU)
- 1 pcs
- Packaging type
- Box
- Country of origin
- CN
- Customs tariff number
- 39269097900
- UNSPSC
- 39,121,308
- ETIM 9.0
- EC001170
- ETIM 10.0
- EC001170
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- Conductor cross-section
- 4 mm²
- EAN
- 4066966072853
- MPN
- 207-4301
- Nominal cross section conductor main cable
- 0.2–4 mm²
- Mining sector approval
- No
- Connection accessories included
- None
- Halogen free
- Yes
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 4055144019247
- SAP 1200466041
- Code 82529875
Product Documentation
