WAGO

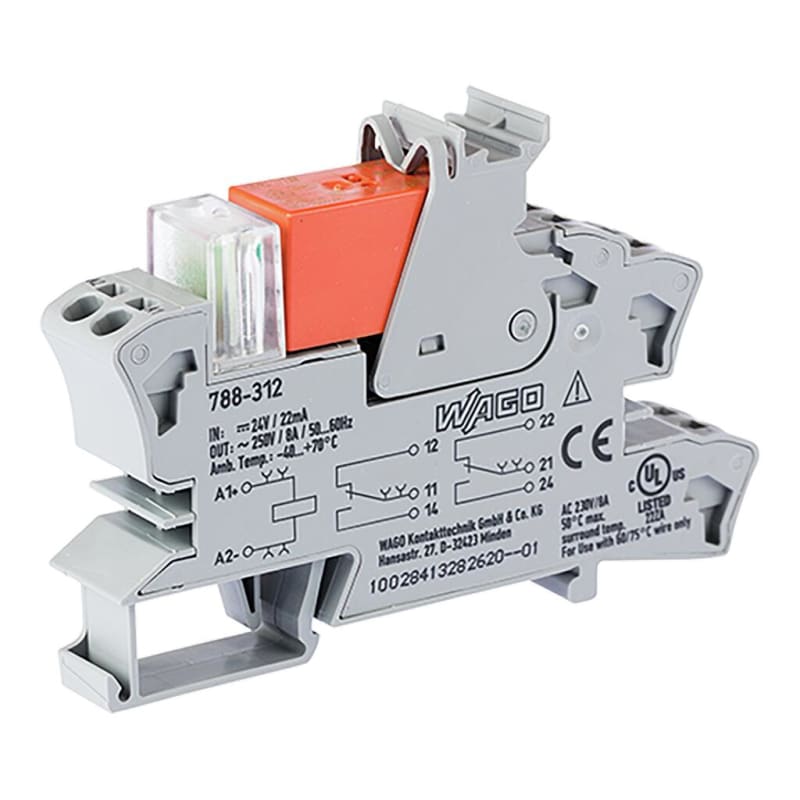

Relay module, Nominal input voltage: 24 VDC, 2 changeover contacts, Limiting continuous current: 8 A (788-312)
Part number788-312EAN / GTIN4055143184137HS code8536.49
Control & Automation
Relays & Timers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 788-312 Manufacturer description: Relay module; Nominal input voltage: 24 VDC; 2 changeover contacts; Limiting continuous current: 8 A; Red status indicator; Module width: 15 mm; 2,50 mm²; gray. Relay Module;Nominal input voltage: 24 VDC;2 changeover contacts;grey.
Technical Specifications
- Manufacturer part number (MPN)
- 788-312
- EAN / GTIN
- 4055143184137
- Sales unit
- pcs
- Package quantity
- 25 pcs
- Note
- Reinforced insulation between coil and contacts | To protect the relay coils and contacts, inductive loads must be dampened with an effective protection circuit.
- Rated Voltage
- 250 V
- Rated impulse withstand voltage
- 4 kV
- Pollution degree
- 3
- Dielectric strength (control/load circuit) (AC, 1 min)
- 5 kVrms
- Dielectric strength (open contact) (AC, 1 min)
- 1 kVrms
- Dielectric strength (load/load circuit) (AC, 1 min)
- 2.5 kVrms
- Protection type
- IP20
- Connection technology
- Push-in CAGE CLAMP®
- Solid conductor
- 0.34 … 2.5 mm² / 22 … 14 AWG
- Fine-stranded conductor
- 0.34 … 2.5 mm² / 22 … 14 AWG
- Strip length
- 9 … 10 mm / 0.35 … 0.39 inches
- Width
- 15 mm / 0.591 inches
- Height
- 86 mm / 3.386 inches
- Depth from upper-edge of DIN-rail
- 54 mm / 2.126 inches
- Mounting type
- DIN-35 rail
- Color
- gray
- Fire load
- 1.35 MJ
- Weight
- 45.5 g
- Ambient temperature (operation at UN)
- -40 … +70 °C
- Ambient temperature UL (operation at UN)
- -40 … +50 °C
- Ambient temperature (storage)
- -40 … +70 °C
- Processing temperature
- -25 … +50 °C
- Temperature range of connection cable
- ≥ (Tambient + 20 K)
- Standards/specifications
- EN 61010-2-201 | EN 61810-1 | EN 61373 | UL 508
- WAGO Basic Relay
- 788-156
- Product Group
- 6 (INTERFACE ELECTRONIC)
- PU (SPU)
- 20 (1) pcs
- Packaging type
- box
- Country of origin
- CN
- Customs tariff number
- 85364900990
- UNSPSC
- 39,122,334
- eCl@ss 10.0
- 27-37-16-01
- eCl@ss 9.0
- 27-37-16-01
- ETIM 9.0
- EC001437
- ETIM 10.0
- EC001437
- ECCN
- NO US CLASSIFICATION
- CAS-No.
- 7439-92-1 | 7440-43-9
- REACH Candidate Strip Substance
- Cadmium | Lead
- RoHS Compliance Status
- Compliant,No Exemption
- SCIP notification number (Austria)
- 24d2c028-d78a-47d5-854b-7e27c80364cd
- SCIP notification number (Belgium)
- 5ac37397-baae-4e58-a3d3-61435578db9f
- SCIP notification number (Bulgaria)
- de1cb4da-97c0-4008-9269-da951ab1ef16
- SCIP notification number (Czech Republic)
- c403f750-ef31-42a4-aad9-12e1c6f4fe05
- SCIP notification number (Denmark)
- 08d49e8e-6e93-4346-8e74-784ca6f59bef
- SCIP notification number (Finland)
- d1c1e038-ca63-45b9-b8ad-df061b16ed25
- SCIP notification number (France)
- 853c5f70-bd31-4f01-9c72-acb268d802cd
- SCIP notification number (Germany)
- 29efa91e-de52-404a-a3b5-7a02ea50bbb5
- SCIP notification number (Hungary)
- 05ecf633-f69c-4fac-b89c-9c17adcb3af3
- SCIP notification number (Italy)
- d0c19709-ee3b-4706-ba8a-2fcbb782cda1
- SCIP notification number (Netherlands)
- d263f759-daa0-4cac-a565-b787a6062566
- SCIP notification number (Poland)
- 252526f9-7a88-4d6b-b7b5-7ba6d6981d94
- SCIP notification number (Romania)
- d9b9f293-6b25-417a-96e3-84fe7cee93b2
- SCIP notification number (Sweden)
- 522525c4-ff5a-471a-bb93-f6be7d85275a
- Rated current
- 8 A
- MPN
- 788-312
- Type of electric connection
- Spring clamp connection
- With detachable clamps
- No
- Nominal current
- 8 A
- Rated control supply voltage AC 50 Hz
- 24 V
- Rated control supply voltage AC 60 Hz
- 24 V
- Rated control supply voltage DC
- 24 V
- Voltage type for actuating
- DC
- Drive, polarization
- Polarized
- Drive, switching attitude
- Mono stable
- Number of contacts as change-over contact
- 2
- With forced-guided contacts
- No
- Type of switch contact
- Single contact
- Complete with socket
- Yes
- With LED indication
- Yes
- Material of contact surface
- Silver
- Material contact
- Nickel
- Degree of protection (IP)
- IP20
- Depth
- 54 mm
Standards & Compliance
- HS Code
- 8536.49
Cross References
- EAN 4055143184137
- SAP 1200007054
- Code 8526458
Product Documentation
Document preview: Relay module, Nominal input voltage: 24 VDC, 2 changeover contacts, Limiting continuous current: 8 A (788-312) — Specification sheet
