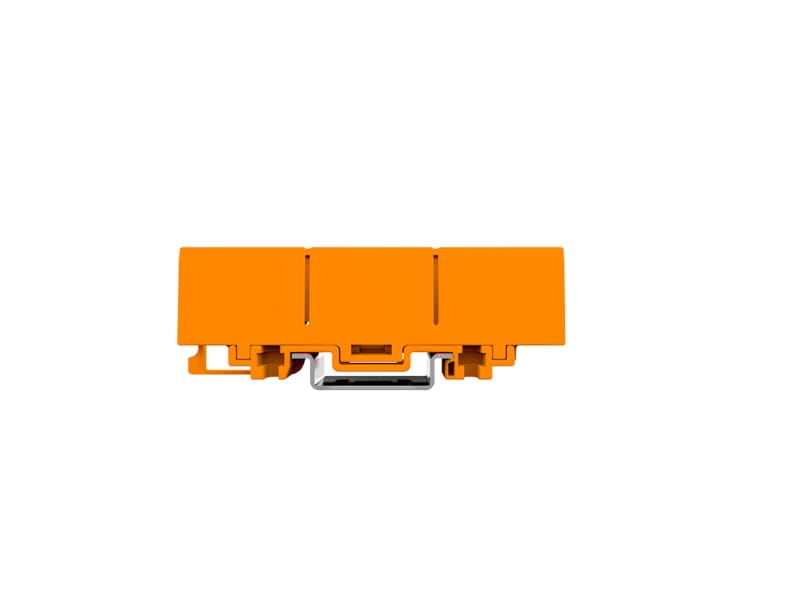

Mounting carrier, 2773 Series, for DIN-35 rail mounting/screw mounting
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 2773-500 Manufacturer description: Mounting carrier; for single- and double-row con.; 2773 Series; for DIN-35 rail mounting/screw mounting; orange. DIN-rail holder for WAGO 2773 Push-In Terminals.
Technical Specifications
- Manufacturer part number (MPN)
- 2773-500
- EAN / GTIN
- 4055143837439
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Width
- 18 mm / 0.709 inches
- Height
- 84 mm / 3.307 inches
- Depth from upper-edge of DIN-rail
- 23 mm / 0.906 inches
- Depth
- 28.9 mm / 1.138 inches
- Mounting type
- DIN-35 rail | Screw mount
- Suitable
- for single- and double-row connectors (2773 Series)
- Color
- orange
- Material group
- I
- Insulation material (main housing)
- Polyamide (PA66)
- Flammability class per UL94
- V0
- Fire load
- 0.35 MJ
- Weight
- 12.6 g
- PU (SPU)
- 50 (10) pcs
- Packaging type
- box
- Country of origin
- CN
- Customs tariff number
- 39269097900
- UNSPSC
- 39,121,410
- ETIM 9.0
- EC002848
- ETIM 10.0
- EC002848
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 4055143837439
- SAP 1200378854
- Code 82381238
