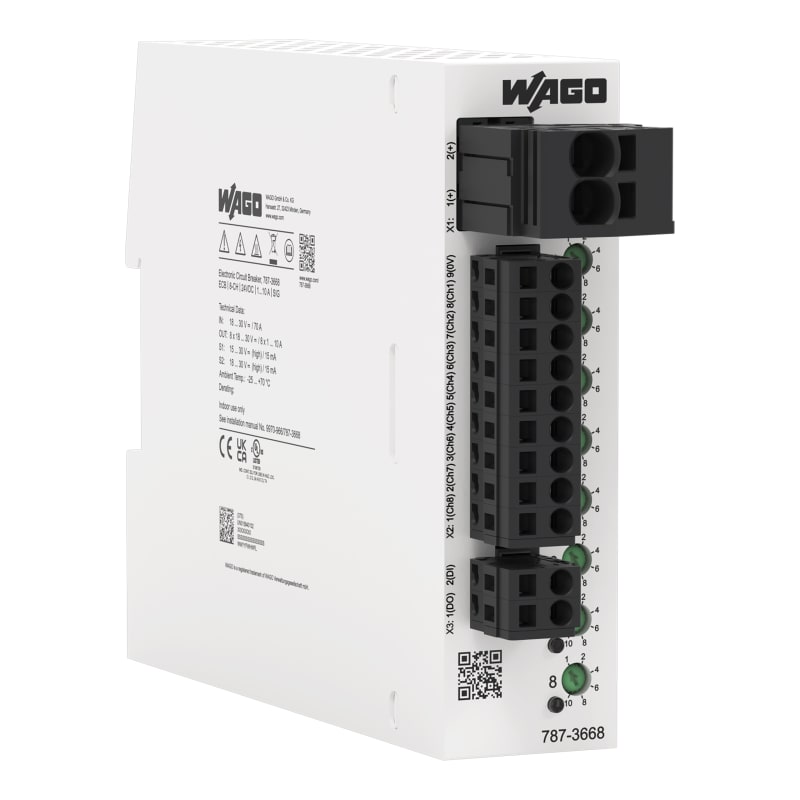

Electronic circuit breaker; 8-Channel; 24 VDC input voltage; adjustable 1 … 10 A; Signal contact
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 787-3668 Manufacturer description: Electronic circuit breaker; 8-channel; 24 VDC input voltage; adjustable 1 … 10 A; Signal contact. Electronic circuit breaker; 8-channel; 24 VDC input voltage; adjustable 1 … 10 A; Signal contact.
Technical Specifications
- Manufacturer part number (MPN)
- 787-3668
- EAN / GTIN
- 4066966493870
- HS code
- 8536.90
- Sales unit
- pcs
- Isolation voltage (connectors – housing)
- 0.5 kVDC
- Protection class
- III
- Protection type
- IP20; per EN 60529
- Reverse voltage protection
- No
- Resistance to reverse feed
- ≤ 35 VDC
- Pollution degree
- 2
- Transient suppression (primary)
- Suppressor diode (33 V)
- Parallel operation of single channels
- Permissible
- Series operation
- No
- Width
- 32 mm / 1.26 inches
- Height
- 115 mm / 4.527 inches
- Depth from upper-edge of DIN-rail
- 157.5 mm / 6.2 inches
- Mounting type
- DIN-35 rail
- Fire load
- 3.739 MJ
- Weight
- 250.3 g
- Ambient temperature (operation)
- -25 … +70 °C
- Ambient temperature (storage)
- -25 … +85 °C
- Relative humidity
- 5 … 96 % (no condensation permissible)
- Derating
- ≥ 50 °C (see instruction manual)
- Conformity marking
- CE
- Standards/specifications
- EN 61000-6-2 | EN 61000-6-3 | UL 61010-2-201 | UL 2367
- PU (SPU)
- 1 pcs
- Packaging type
- Box
- Country of origin
- IN
- Customs tariff number
- 85362010900
- UNSPSC
- 39,121,630
- ETIM 9.0
- EC001440
- ETIM 10.0
- EC001440
- ECCN
- NO US CLASSIFICATION
- CAS-No.
- 11120-22-2 | 1303-86-2 | 1317-36-8 | 7439-92-1
- REACH Candidate Strip Substance
- Diboron trioxide | Lead | Lead monoxide | Lead silicate
- RoHS Compliance Status
- Compliant,With Exemption
- RoHS Exemption
- 6(c) | 7(a) | 7(c)-I | 7(c)-II
- SCIP notification number (Austria)
- 1b096b43-55d6-42ac-9e27-a729b6c0f24a
- SCIP notification number (Belgium)
- 0e72ed8b-ad22-44d0-bc63-2ccf12256009
- SCIP notification number (Bulgaria)
- 129ec3e7-f34c-488e-88a9-23d5952da89d
- SCIP notification number (Czech Republic)
- c261144b-a59d-4439-b19b-452377eabd1f
- SCIP notification number (Denmark)
- 2298a4f3-869c-43c3-a0cb-9b1424c4be1f
- SCIP notification number (Finland)
- 6bbd5b85-da4c-40a0-bb96-ceb614172ee8
- SCIP notification number (France)
- 7ac1a503-2246-4ca5-b5f5-00c27a0a8304
- SCIP notification number (Germany)
- 505b9f67-7fd3-4b05-9418-2d3f2e18513b
- SCIP notification number (Hungary)
- 5201706a-78d1-44ca-b7ba-4feaddb56194
- SCIP notification number (Italy)
- 82097060-cc58-46c7-98d3-0e3ea1a7dd78
- SCIP notification number (Netherlands)
- ccc2cd1c-27b1-4300-957f-61c13a6e0243
- SCIP notification number (Poland)
- ca9ae455-3a43-453c-a133-f7eec5b3449f
- SCIP notification number (Romania)
- 6159b594-e5c2-4f48-9bb8-2ff4e8d4b6e0
- SCIP notification number (Sweden)
- 840aee4b-fc81-4c48-8cbb-dde2a9cab069
- MPN
- 787-3668
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4066966493870
- SAP 1200778638
- Code 83936670
Product Documentation
More from WAGO
WAGO

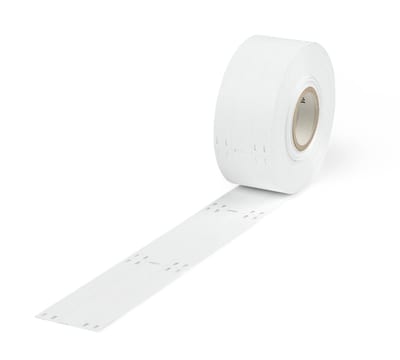

Cable tie marker; for Smart Printer; for use with cable ties; 100 x 15mm; white
211-836
WAGO

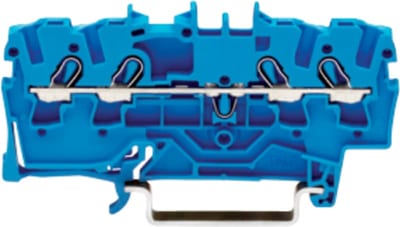

4-Conductor through terminal block, 2.5 mm², for DIN-rail 35 x 15 and 35 x 7.5 (2002-1404)
WAGO

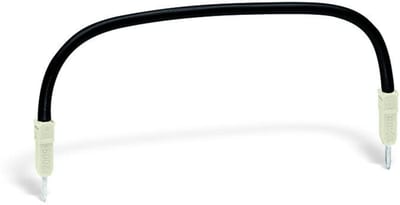

Push-in type wire jumper; insulated; 60 mm long; black
2009-412
WAGO

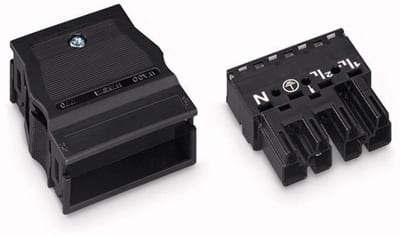

Plug; with strain relief housing; 4-Pole; Cod. A; 4,00 mm²; black
770-114
WAGO

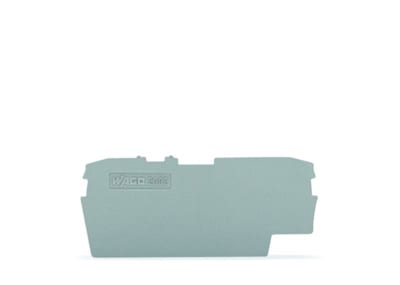

End and intermediate plate; 1 mm thick; gray (2002-1691)
WAGO

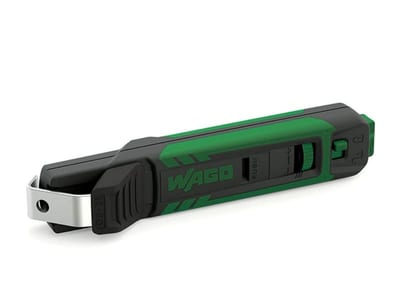

Cable knife; for Ø 8 mm … 28 mm / 0.31" … 1.10"; with intelligent bracket change system
206-1403
WAGO

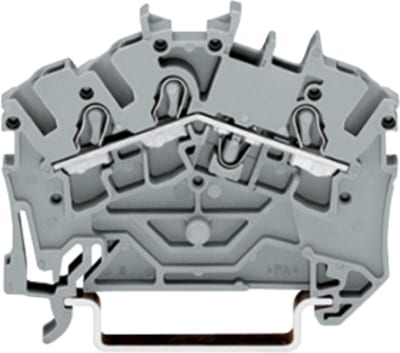

3-Conductor through terminal block, 2.5 mm², for DIN-rail 35 x 15 and 35 x 7.5 (2002-6301)
