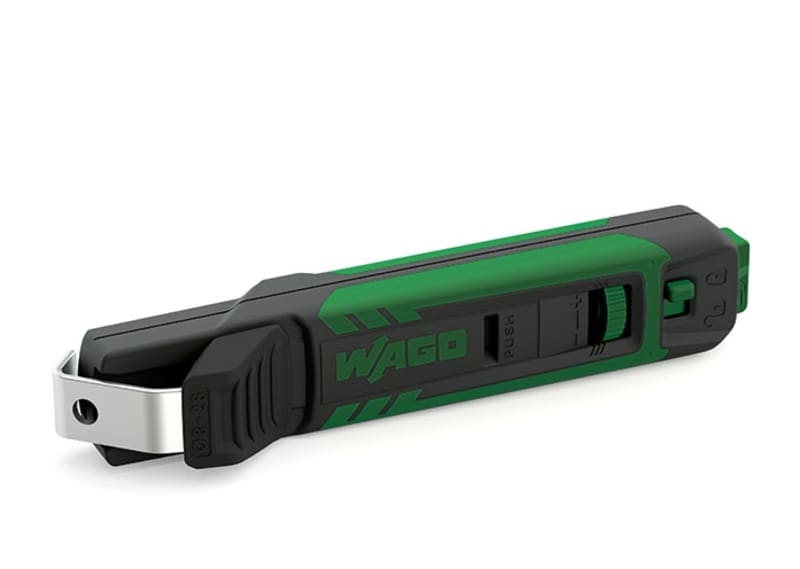

Cable knife; for Ø 8 mm … 28 mm / 0.31" … 1.10"; with intelligent bracket change system
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 206-1403 Manufacturer description: Cable knife; for Ø 8 mm … 28 mm / 0.31" … 1.10"; with intelligent bracket change system. Cable knife; for Ø 8 mm … 28 mm / 0.31" … 1.10"; with intelligent bracket change system.
Technical Specifications
- Manufacturer part number (MPN)
- 206-1403
- EAN / GTIN
- 4055143835930
- Sales unit
- pcs
- Appropriate diameter of the sheathed cable
- 8 … 28 mm / 0.315 … 1.102 inches
- Width
- 31 mm / 1.22 inches
- Height
- 37 mm / 1.457 inches
- Depth
- 166 mm / 6.535 inches
- Hook blade
- Yes
- Hook blade, adjustable
- Step adjustment
- Replaceable blade
- Yes
- Cutting function
- No
- Cutting depth (max.)
- 3.5 mm
- Partial stripping function
- No
- Weight
- 123 g
- PU (SPU)
- 1 pcs
- Packaging type
- box
- Country of origin
- DE
- Customs tariff number
- 82119300000
- UNSPSC
- 27,111,510
- ETIM 9.0
- EC000155
- ETIM 10.0
- EC000155
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- Extendable
- No
- Total length
- 167 mm
- Foldable
- No
- Isolation protection 1000 V
- No
- With interlocking
- Yes
- Shape of blade
- Hook shape
- With protective cover
- Yes
- With scraper
- No
- With floating shoe
- No
- Material handle
- Plastic
- Cable knife
- Yes
- Retractable knife
- No
- Self retracting
- Yes
Standards & Compliance
- HS Code
- 8211.93
Cross References
- EAN 4055143835930
- SAP 1200710040
- Code 83815169
Product Documentation
