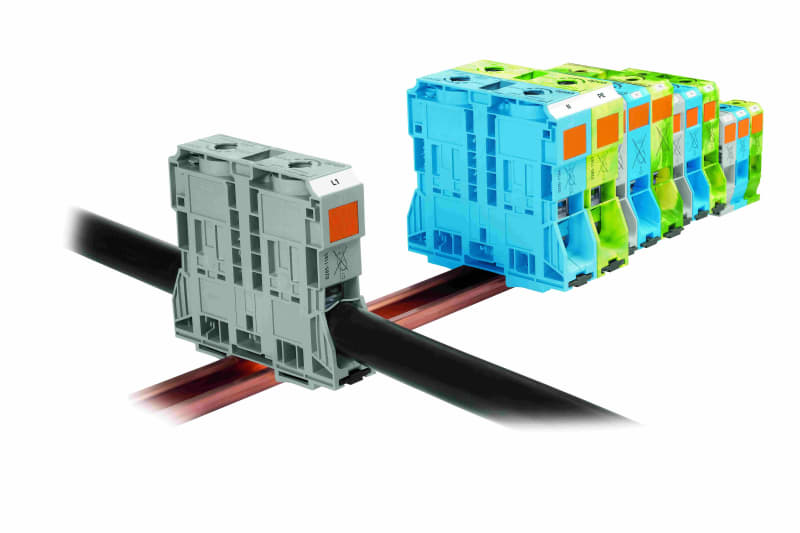

2-Conductor through terminal block, 185 mm², only for DIN 35 x 15 rail
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 285-1185 Manufacturer description: 2-conductor through terminal block; 185 mm²; lateral marker slots; only for DIN 35 x 15 rail; POWER CAGE CLAMP; 185,00 mm²; gray. 2-conductor through-going DIN-rail terminal;185 mm²;laterale merkespor;grey.
Technical Specifications
- Manufacturer part number (MPN)
- 285-1185
- EAN / GTIN
- 4055143067065
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Clamping units
- 2
- Total number of potentials
- 1
- Number of levels
- 1
- Number of jumper slots
- 2
- Width
- 32 mm / 1.26 inches
- Height
- 130 mm / 5.118 inches
- Depth from upper-edge of DIN-rail
- 116 mm / 4.567 inches
- Mounting type
- DIN-35 x 15 rail | DIN-rail 35 x 15
- Mounting (note)
- only suitable for DIN 35 x 15 rail
- Marking level
- Side marking
- Color
- gray
- Material group
- I
- Insulation material (main housing)
- Polyamide (PA66)
- Flammability class per UL94
- V0
- Fire load
- 4.528 MJ
- Weight
- 534.9 g
- Processing temperature
- -35 … +85 °C
- Continuous operating temperature
- -60 … +105 °C
- Product Group
- 1 (Rail Mounted Terminal Blocks)
- PU (SPU)
- 5 pcs
- Packaging type
- box
- Country of origin
- DE
- Customs tariff number
- 85369010000
- UNSPSC
- 39,121,410
- eCl@ss 10.0
- 27-14-11-20
- eCl@ss 9.0
- 27-14-11-20
- ETIM 9.0
- EC000897
- ETIM 10.0
- EC000897
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- Conductor cross-section
- 185 mm²
- MPN
- 285-1185
- Connectable conductor cross section solid-core
- 50–185 mm²
- Connectable conductor cross section multi-wired
- 50–185 mm²
- Rated current In
- 353 A
- Rated voltage
- 1000 V
- Type of electrical connection 1
- Spring clamp connection
- Type of electrical connection 2
- Spring clamp connection
- Connection position
- Sideways
- Number of clamp positions per level
- 2
- Mounting method
- DIN rail (top hat rail) 35 mm
- Material insulation body
- Thermoplastic
- Operating temperature
- 105 °C
- Width/grid dimension
- 32 mm
- Depth
- 116 mm
- Length
- 130 mm
- Explosion-tested version 'Ex e'
- No
- Closing plate required
- No
- Colour
- Grey
- Internally connected stages
- No
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4055143067065
- SAP 1200141043
- Code 82041929
Product Documentation
More from WAGO
WAGO
End and intermediate plate; 1 mm thick; gray (2022-1391)
WAGO
Splicing connector with levers, for all conductor types, max. 4 mm², 10-Conductor
221-490
WAGO
KBL5M 5X1,5 Plug/Open END
771-9985/206-501
WAGO
Splicing connector with levers, for all conductor types, max. 6 mm², 5-Conductor (221-685)
WAGO

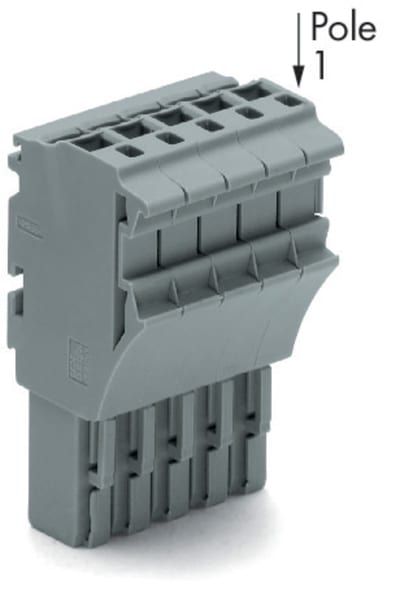

1-Conductor female connector; Push-in CAGE CLAMP®; 4 mm²; Pin spacing 5.2 mm; 5-Pole; 4,00 mm²; gray
2022-105
WAGO

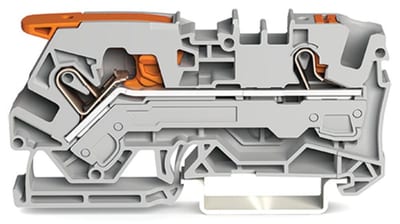

2-Conductor through terminal block, 6 mm², for DIN-rail 35 x 15 and 35 x 7.5 (2106-5201)
WAGO

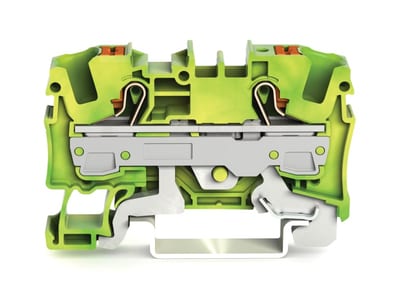

2-Conductor ground terminal block, 6 mm², for DIN-rail 35 x 15 and 35 x 7.5 (2206-1207)
