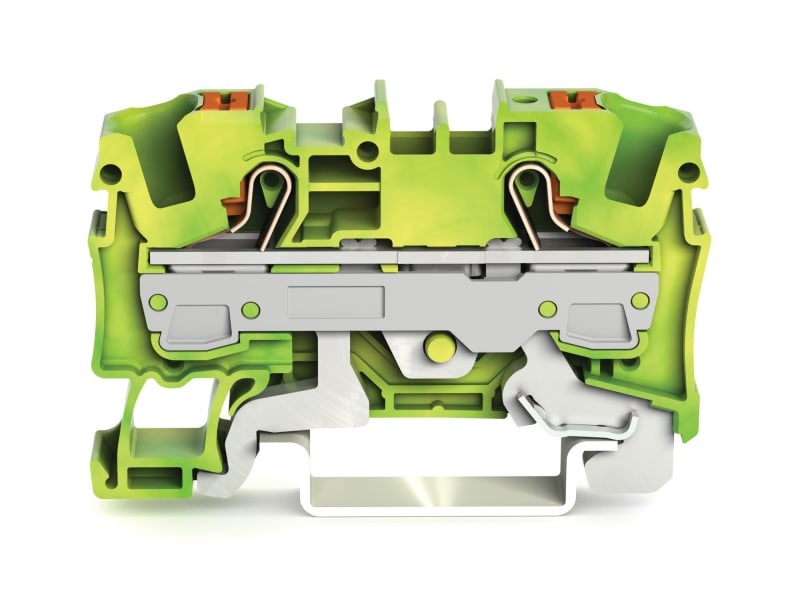

2-Conductor ground terminal block, 6 mm², for DIN-rail 35 x 15 and 35 x 7.5 (2206-1207)

WAGO 2206-1207 Manufacturer description: 2-conductor ground terminal block; with push-button; 6 mm²; with test port; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 6,00 mm²; green-yellow. 2-conductor earth clamp;with push-button;6 mm²;green-yellow.

Manufacturer part number (MPN)

2206-1207

EAN / GTIN

4055143712064

Sales unit

pcs

Package quantity

50 pcs

Clamping units

2

Total number of potentials

1

Number of levels

1

Number of jumper slots

2

Width

7.5 mm / 0.295 inches

Height

57.3 mm / 2.256 inches

Depth from upper-edge of DIN-rail

32.9 mm / 1.295 inches

Depth

39.5 mm / 1.555 inches

Mounting type

DIN-35 rail

Marking level

Center/side marking

Color

green-yellow

Material group

I

Insulation material (main housing)

Polyamide (PA66)

Flammability class per UL94

V0

Fire load

0.157 MJ

Actuator color

orange

Weight

18.3 g

Continuous operating temperature

-60 … +105 °C

PU (SPU)

50 pcs

Packaging type

box

Country of origin

DE

Customs tariff number

85369010000

UNSPSC

39,121,410

eCl@ss 10.0

27-14-11-41

eCl@ss 9.0

27-14-11-41

ETIM 9.0

EC000901

ETIM 10.0

EC000901

ECCN

NO US CLASSIFICATION

RoHS Compliance Status

Compliant,No Exemption

Conductor cross-section

6 mm²

EAN

4055143846721

MPN

2206-1207

PEN function possible

Yes

Connectable conductor cross section solid-core

1–10 mm²

Connectable conductor cross section multi-wired

0.5–6 mm²

Type of electrical connection 1

Spring clamp connection

Type of electrical connection 2

Spring clamp connection

Connection position

Atop

Number of clamp positions per level

2

Mounting method

DIN rail (top hat rail) 35 mm

Material insulation body

Thermoplastic

Operating temperature

105 °C

Width/grid dimension

7.5 mm

Length

57.3 mm

Closing plate required

Yes

Colour

Green/yellow

HS Code

8536.90
