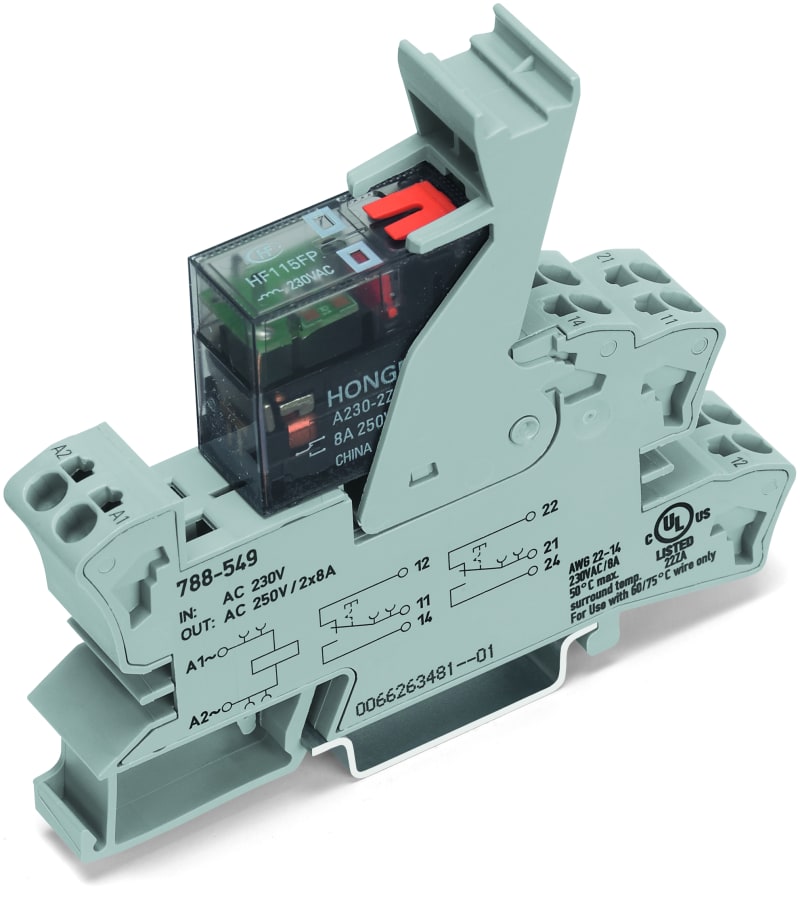

Relay module, Nominal input voltage: 230 VAC, 2 changeover contacts, Module width: 15 mm
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 788-549 Manufacturer description: Relay module; Nominal input voltage: 230 VAC; 2 changeover contacts; Limiting continuous current: 8 A; with manual operation; Red status indicator; Module width: 15 mm. Relay Module; Nominal input voltage: 230 VAC; 2 changeover contacts.
Technical Specifications
- Manufacturer part number (MPN)
- 788-549
- EAN / GTIN
- 4050821226802
- HS code
- 8536.90
- Sales unit
- pcs
- Note
- Reinforced insulation between coil and contacts | To protect the relay coils and contacts, inductive loads must be dampened with an effective protection circuit.
- Rated Voltage
- 250 V
- Rated impulse withstand voltage
- 4 kV
- Pollution degree
- 3
- Dielectric strength (control/load circuit) (AC, 1 min)
- 5 kVrms
- Dielectric strength (open contact) (AC, 1 min)
- 1 kVrms
- Dielectric strength (load/load circuit) (AC, 1 min)
- 2.5 kVrms
- Protection type
- IP20
- Connection technology
- Push-in CAGE CLAMP®
- Solid conductor
- 0.34 … 2.5 mm² / 22 … 14 AWG
- Fine-stranded conductor
- 0.34 … 2.5 mm² / 22 … 14 AWG
- Strip length
- 9 … 10 mm / 0.35 … 0.39 inches
- Width
- 15 mm / 0.591 inches
- Height
- 86 mm / 3.386 inches
- Depth from upper-edge of DIN-rail
- 73 mm / 2.874 inches
- Mounting type
- DIN-35 rail
- Fire load
- 0.596 MJ
- Weight
- 46 g
- Ambient temperature (operation at UN)
- -40 … +70 °C
- Ambient temperature UL (operation at UN)
- -40 … +50 °C
- Ambient temperature (storage)
- -40 … +70 °C
- Processing temperature
- -25 … +50 °C
- Temperature range of connection cable
- ≥ (Tambient + 20 K)
- Relative humidity
- 5 … 85 % (no condensation permissible)
- Standards/specifications
- EN 61010-2-201 | EN 61810-1 | EN 61373 | UL 508
- WAGO Basic Relay
- 788-949
- Product Group
- 6 (INTERFACE ELECTRONIC)
- PU (SPU)
- 15 (1) pcs
- Packaging type
- box
- Country of origin
- DE
- Customs tariff number
- 85364900990
- UNSPSC
- 39,122,334
- eCl@ss 10.0
- 27-37-16-01
- eCl@ss 9.0
- 27-37-16-01
- ETIM 9.0
- EC001437
- ETIM 10.0
- EC001437
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- MPN
- 788-549
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4050821226802
- SAP 1000337663
- Code 8937648
Product Documentation
More from WAGO
WAGO

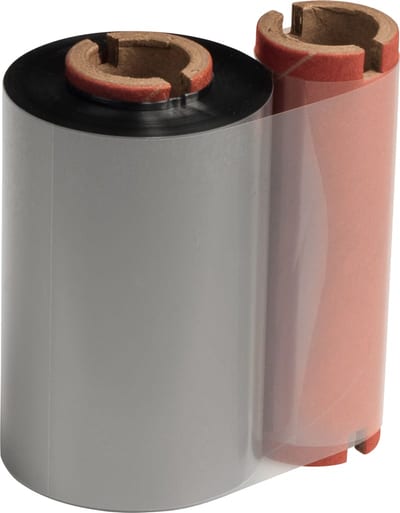

Thermal transfer ink ribbon; for Smart Printer; black
258-5005
WAGO

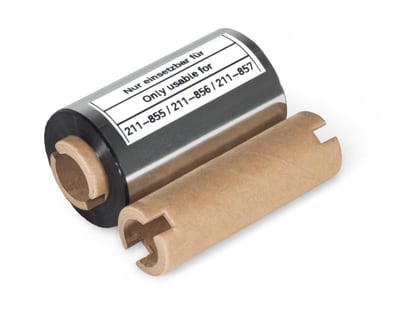

WAGO 258-5014 Thermal Transfer Ink Ribbon Black 57 mm x 74 m
WAGO
Jumper; for jumper slot; 6-Way; insulated; light gray
859-406
WAGO

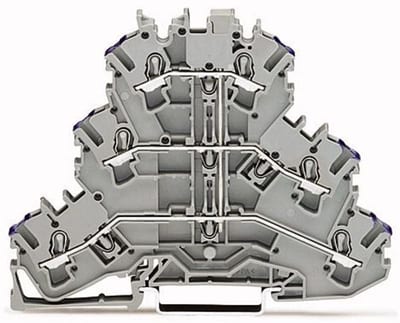

WAGO 2002-3208 TOPJOB S Three-Level Terminal Block, One Potential, Grey
WAGO
WAGO 210-721 Operating Tool, 5.5 x 0.8 mm Blade, Partially Insulated
WAGO

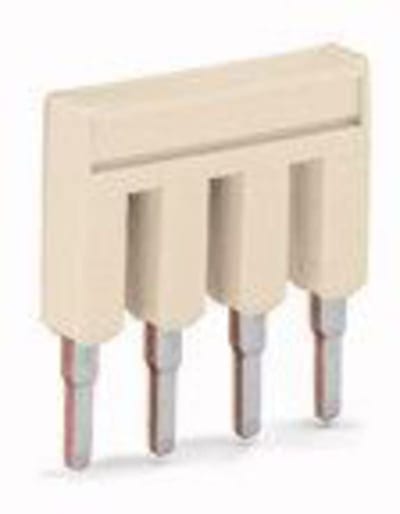

Jumper; 6-Way; insulated; light gray (2002-406)
WAGO

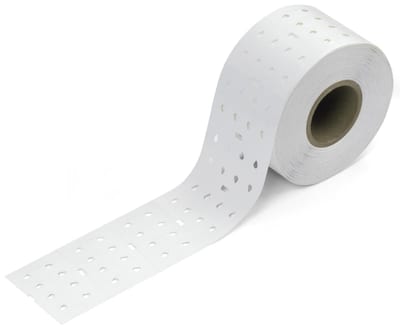

WAGO 211-862 Conductor Markers for Thread-On Mounting 7 x 10.5 mm White
WAGO

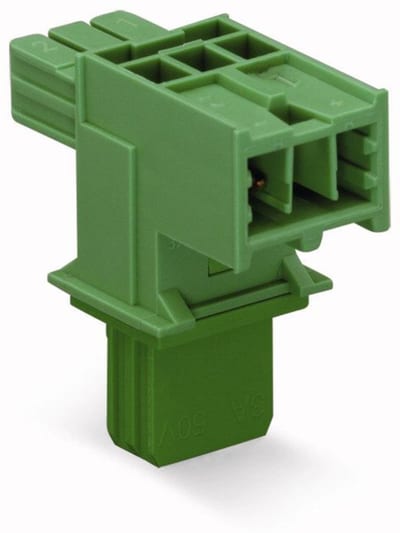

T-distribution connector; 2-Pole; Cod. E; 1 input; 2 outputs; green
