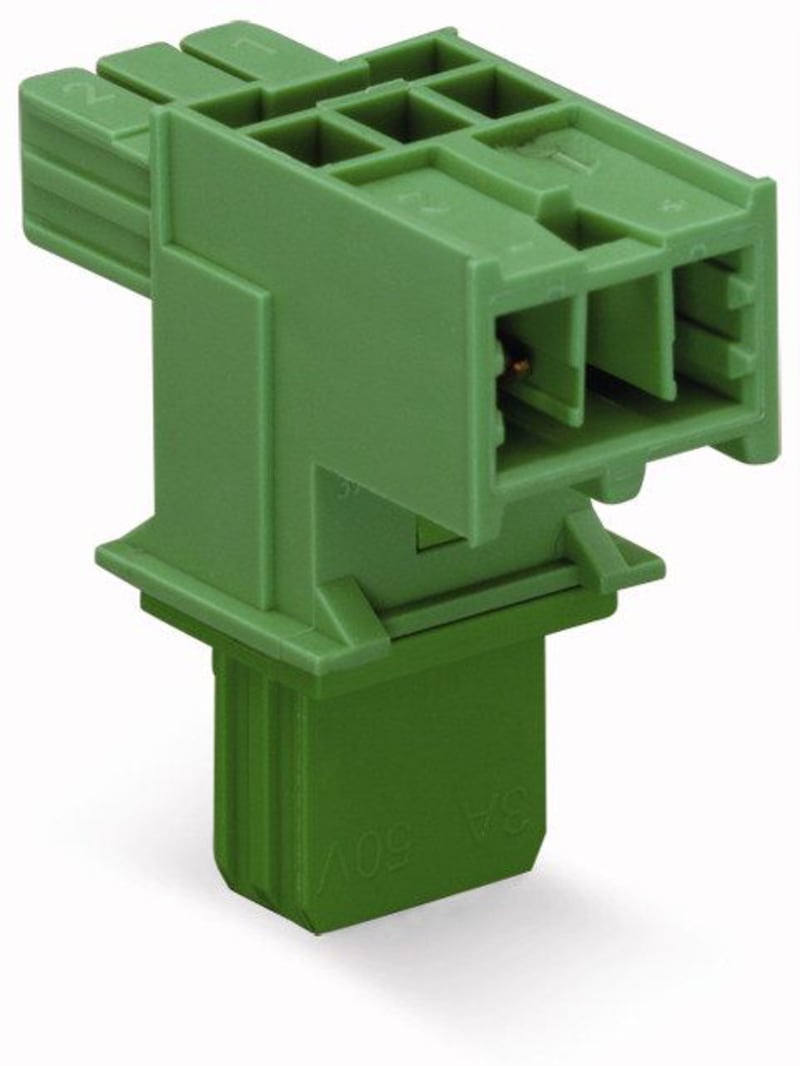

T-distribution connector; 2-Pole; Cod. E; 1 input; 2 outputs; green
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 893-1606 Manufacturer description: T-distribution connector; 2-pole; Cod. E; 1 input; 2 outputs; green. Winsta Pluggable cabling system, quick-mounting system.
Technical Specifications
- Manufacturer part number (MPN)
- 893-1606
- EAN / GTIN
- 4045454547677
- Sales unit
- pcs
- Package quantity
- 25 pcs
- Total number of potentials
- 2
- Width
- 15 mm / 0.591 inches
- Height
- 28.9 mm / 1.138 inches
- Depth
- 28.7 mm / 1.13 inches
- Technology
- KNX
- Use
- KNX
- Coding
- E
- Variable coding
- No
- Marking
- 1+ 2-
- Potential marking
- 1+ 2-
- Mating force of a plug-in connection
- Approx. 10 … 15 N
- Retention force of a plug-in connection
- When locked: > 80 N
- Unmating force of a plug-in connection
- Unlocked: approx. 15 … 20 N
- Number of mating cycles
- 200
- Type of distribution box
- T-distribution connector
- Protection type
- IP20; Only when mated and secured with a strain relief housing (These compact connectors are not designed for use in open, easily accessible areas.)
- Contact type (pluggable connector)
- Socket/plug
- Mismating protection
- Yes
- Locking lever
- Yes
- Locking of plug-in connection
- Locking lever
- Number of locking levers
- 2
- Color
- green
- Insulation material (main housing)
- Polyamide (PA66)
- Flammability class per UL94
- V0
- Contact material
- Copper alloy; surface-treated
- Contact Plating
- Tin
- Fire load
- 0.048 MJ
- Weight
- 3.3 g
- Processing temperature
- -5 … +40 °C
- Continuous operating temperature
- -35 … +85 °C
- Product Group
- 20 (Winsta)
- PU (SPU)
- 25 pcs
- Packaging type
- box
- Country of origin
- DE
- Customs tariff number
- 85366990990
- UNSPSC
- 39,121,406
- eCl@ss 10.0
- 27-44-06-03
- eCl@ss 9.0
- 27-44-06-03
- ETIM 9.0
- EC002567
- ETIM 10.0
- EC002567
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- Number of poles
- 2P
- MPN
- 893-1606
- Rated voltage
- 50 V
- Rated current
- 3 A
- Rated current to luminaire
- 3 A
- Degree of protection (IP)
- IP20
- Number of inputs
- 2
- Number of outputs
- 4
- Pole codification
- 1+, 2-
- Mechanical coding
- Yes
- Colour coding/contact insert
- Green
- Colour of the separate adaptor piece
- Without adapter piece
- Type of locking
- None
- Halogen free
- Yes
- Max. continuous temperature resistance contact part
- 85 °C
- Max. continuous temperature resistance strain relief
- 105 °C
- Housing material
- Polyamide (PA)
- Surface treatment contacts
- Tinned
- Pollution degree
- 3
- Continuity resistance
- 1 mOhm
- Rated surge voltage
- 0.8 kV
- Length
- 28.7 mm
- Type of distributor
- T-distributor
- Type of integrated switching
- None
- Mounting possibility
- No
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 4045454547677
- SAP 1000094435
- Code 8876087
