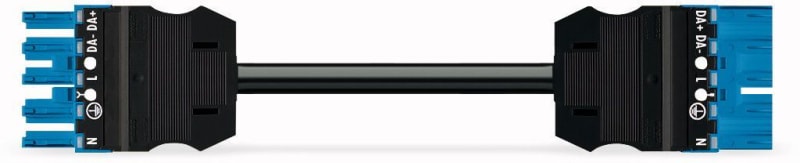

CABLE.7M 5X2,5 Plinth/PLUG
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 771-9985/007-701 Winsta Pluggable cabling system, quick-mounting system.
Technical Specifications
- Manufacturer part number (MPN)
- 771-9985/007-701
- EAN / GTIN
- 4045454001513
- HS code
- 8544.42
- Sales unit
- pcs
- Halogen free
- No
- Nominal cross section conductor
- 2.5 mm²
- Cable type
- H05VV-F
- Housing colour
- Black
- Type of locking
- Separate
- Rated current
- 20 A
- Rated voltage
- 400 V
- Total length
- 7000 mm
- Number of poles
- 5
- Housing material
- Polyamide (PA)
- Colour outer sheath
- Black
- Cable diameter
- 11.2–13.9 mm
- Surface treatment contacts
- Tinned
- Pollution degree
- 3
- Mechanical coding
- Yes
- Rated surge voltage
- 6 kV
- Continuity resistance
- 1 mOhm
- Contact material
- CuSn
- Degree of protection (IP)
- IP20
- Colour coding/contact insert
- Blue
- Fire load
- 58.40833 kWh
- Type of finished cable
- Connecting cable
- Type side 1
- Bus
- Type side 2
- Plug
- Insulating piece permanent temperature-resistant
- 105 °C
- Conductor end treatment
- Ultrasonic compressed wire ends
- Cable permanent temperature-resistant to
- 70 °C
- Max. operating temperature at conductor
- 85 °C
- Reaction-to-fire according to EN 13501-6
- Class: Eca
- RAL-number coding/contact insert
- 5015
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 4045454001513
- SAP 1000094261
- Code 8870790
Product Documentation
More from WAGO
WAGO
Feed from Schuko for Winsta 3M
771-9993/307-301
WAGO

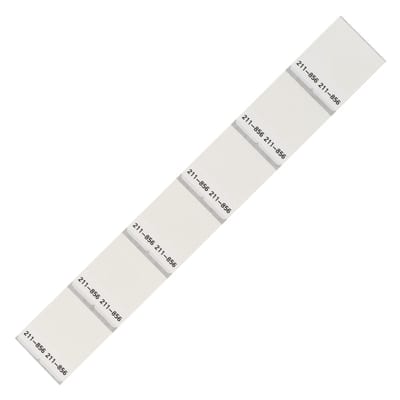

Self-laminating labels; for Smart Printer; 13 x 22 mm; white
211-856
WAGO

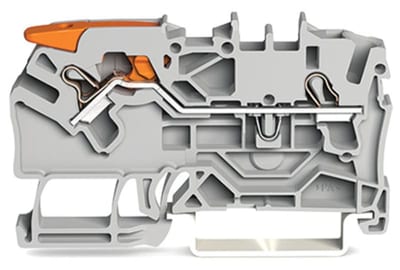

2-Conductor through terminal block, 2.5 mm², for DIN-rail 35 x 15 and 35 x 7.5 (2102-1201)
WAGO

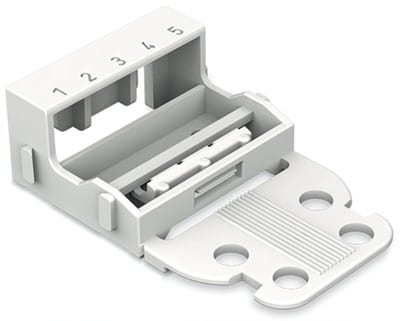

Mounting carrier; for 5-Conductor terminal blocks; 221 Series - 4 mm²; for screw mounting; white
221-505
WAGO

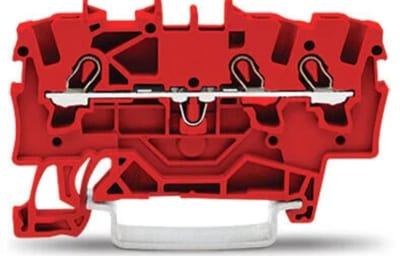

3-Conductor through terminal block, 1.5 mm², for DIN-rail 35 x 15 and 35 x 7.5 (2001-1303)
WAGO

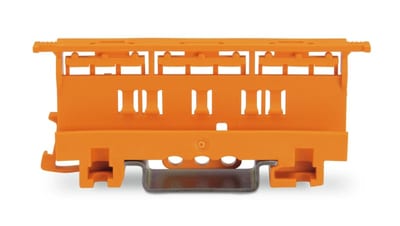

Holder for WAGO 221 in blister (221-500/995-002)
WAGO

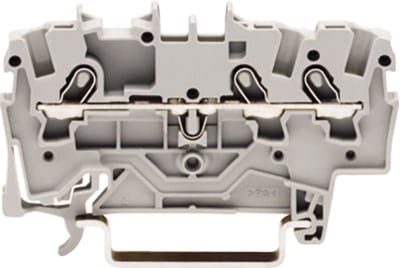

3-Conductor through terminal block, 1.5 mm², for DIN-rail 35 x 15 and 35 x 7.5 (2001-1301)
