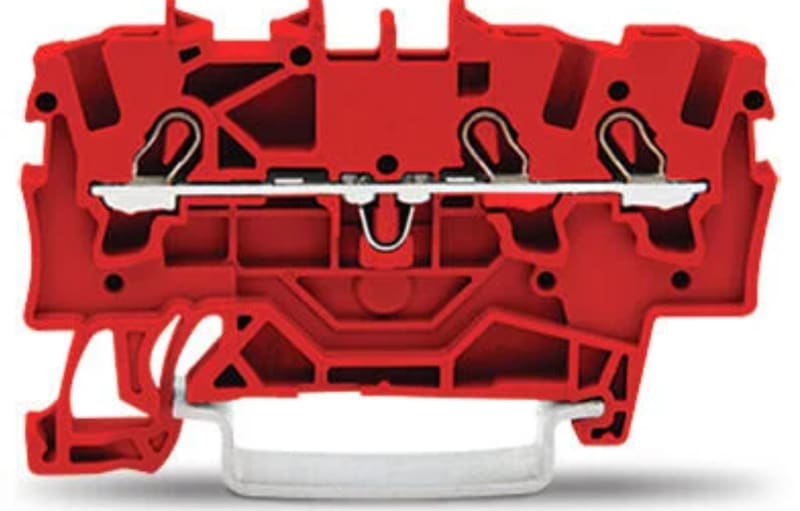

3-Conductor through terminal block, 1.5 mm², for DIN-rail 35 x 15 and 35 x 7.5 (2001-1303)
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 2001-1303 Manufacturer description: 3-conductor through terminal block; 1.5 mm²; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 1,50 mm²; red. 3-conductor through-going DIN-rail terminal; 1,5 mm², Red.
Technical Specifications
- Manufacturer part number (MPN)
- 2001-1303
- EAN / GTIN
- 4045454397487
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Clamping units
- 3
- Total number of potentials
- 1
- Number of levels
- 1
- Number of jumper slots
- 2
- Width
- 4.2 mm / 0.165 inches
- Height
- 59.2 mm / 2.33 inches
- Depth from upper-edge of DIN-rail
- 32.9 mm / 1.295 inches
- Depth
- 39.5 mm / 1.555 inches
- Mounting type
- DIN-35 rail
- Marking level
- Center/side marking
- Color
- red
- Material group
- I
- Insulation material (main housing)
- Polyamide (PA66)
- Flammability class per UL94
- V0
- Fire load
- 0.107 MJ
- Weight
- 4.3 g
- Processing temperature
- -35 … +85 °C
- Continuous operating temperature
- -60 … +105 °C
- Product Group
- 22 (TOPJOB S)
- PU (SPU)
- 100 pcs
- Packaging type
- box
- Country of origin
- DE
- Customs tariff number
- 85369010000
- UNSPSC
- 39,121,410
- eCl@ss 10.0
- 27-14-11-20
- eCl@ss 9.0
- 27-14-11-20
- ETIM 9.0
- EC000897
- ETIM 10.0
- EC000897
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- Conductor cross-section
- 1.5 mm²
- MPN
- 2001-1303
- Suitable for conductor material
- Copper
- Connectable conductor cross section solid-core
- 0.25–10 mm²
- Connectable conductor cross section multi-wired
- 0.25–10 mm²
- Rated current In
- 41 A
- Rated voltage
- 450 V
- Type of electrical connection 1
- Push-in clamp connection
- Type of electrical connection 2
- Spring clamp connection
- Connection position
- Atop
- Number of clamp positions per level
- 7
- Mounting method
- DIN rail (top hat rail) 35 mm
- Material insulation body
- Thermoplastic
- Operating temperature
- -40–105 °C
- Width/grid dimension
- 4.2 mm
- Length
- 59.2 mm
- Explosion-tested version 'Ex e'
- No
- Closing plate required
- No
- Colour
- Grey
- Internally connected stages
- Yes
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4045454397487
- SAP 1000340016
- Code 8373777
Product Documentation
More from WAGO
WAGO
Holder for WAGO 221 in blister (221-500/995-002)
WAGO
3-Conductor through terminal block, 1.5 mm², for DIN-rail 35 x 15 and 35 x 7.5 (2001-1301)
WAGO
KNX Cable PLUG AND PLINTH, 3 M
894-8992/033-306
WAGO
WMB-Inline, 1500 pieces on roll, stretchable 5 - 5.2 mm
2009-115
WAGO
Interface module; RJ-45; IDC technology; Cat. 6; in mounting carrier; with shield connection
289-195
WAGO
Power supply; Eco 2; 1-Phase; 24 VDC output voltage; 5 A output current; DC OK contact
2687-2144
WAGO
Cutter, for marking strips, equipment markers, conductor and cable markers
258-5030
WAGO
Socket; with strain relief housing; 4-Pole; Cod. A; 4,00 mm²; black
770-104
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 2001-1303?
- 2001-1303 can be ordered from cballast.com as a WAGO catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this WAGO product?
- The manufacturer part number is 2001-1303.
- What is the HS code for 2001-1303?
- The customs tariff (HS) code for 2001-1303 is 8536.90.
- Who manufactures 2001-1303?
- 2001-1303 is a WAGO product in the Electrical Components range.
- Is a datasheet available for 2001-1303?
- Yes — the 2001-1303 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 2001-1303?
- The minimum order quantity is 1.
- Is 2001-1303 available?
- Yes — 2001-1303 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
