WAGO

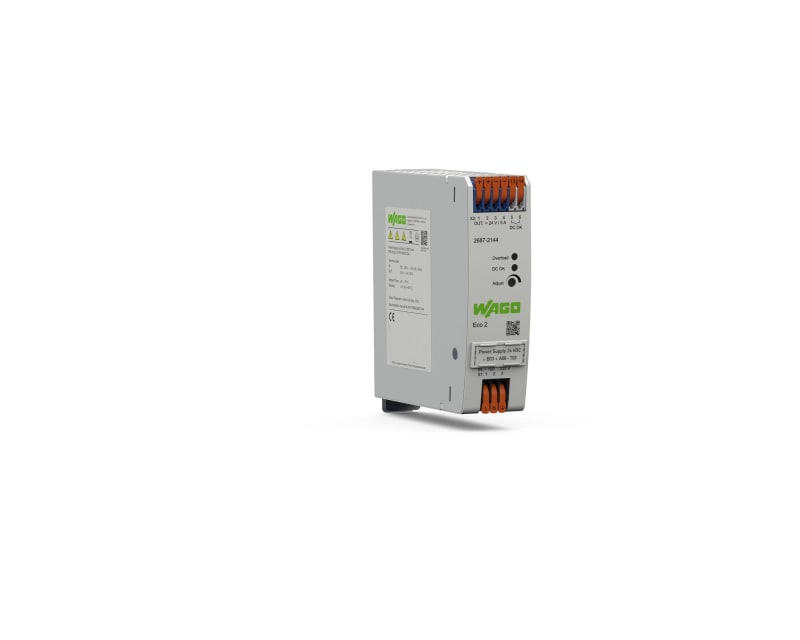

Power supply; Eco 2; 1-Phase; 24 VDC output voltage; 5 A output current; DC OK contact
Part number2687-2144EAN / GTIN4066966401080HS code8504.40
Switchgear & Protection
DIN Rail Power Supplies
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 2687-2144 Manufacturer description: Power supply; Eco 2; 1-phase; 24 VDC output voltage; 5 A output current; DC OK contact. WAGO Power supply ECO2 24V/5A with hendeltilkoblinger.
Technical Specifications
- Manufacturer part number (MPN)
- 2687-2144
- EAN / GTIN
- 4066966401080
- Sales unit
- pcs
- Isolation voltage (pri.-sec., AC)
- 3,510 V
- Isolation voltage (pri.-PE, AC)
- 2,200 V
- Isolation voltage (sec.-PE)
- 0.5 kVDC
- Isolation voltage (sec.-signal)
- 0.5 kVDC
- Protection class
- I
- Protection type
- IP20; per EN 60529
- Overvoltage category
- III (≤ 2000 m a.s.l.); II (> 2000 m a.s.l.)
- Pollution degree
- 2
- Short-circuit-protected
- Yes
- Open-circuit-proof
- Yes
- Parallel operation
- Yes
- Series operation
- Yes
- MTBF
- > 1,000,000 h (per IEC 61709)
- Width
- 38 mm / 1.496 inches
- Height
- 130 mm / 5.118 inches
- Depth from upper-edge of DIN-rail
- 130 mm / 5.118 inches
- Mounting type
- DIN-35 rail
- Weight
- 620 g
- Ambient temperature (operation)
- -25 … +70 °C (Device starts at -40 °C (type-tested))
- Ambient temperature (storage)
- -40 … +85 °C
- Relative humidity
- 5 … 96 % (no condensation permissible)
- Derating
- -2.5 %/K, > 55 °C; -10 %/V, > 24 V
- Climatic category
- 3K3 (per EN 60721)
- Operating altitude (max.)
- 5000 m
- Conformity marking
- CE
- Standards/specifications
- EN 61010-1 | EN 61010-2-201 | EN 61204-3 | UL 61010-1 | UL 61010-2-201 | SEMI F47 | UL 121201 (HazLoc)
- PU (SPU)
- 1 pcs
- Packaging type
- Box
- Country of origin
- CN
- Customs tariff number
- 85044083900
- UNSPSC
- 39,121,004
- ETIM 9.0
- EC002540
- ETIM 10.0
- EC002540
- ECCN
- NO US CLASSIFICATION
- CAS-No.
- 1303-86-2 | 1317-36-8 | 7439-92-1 | 79-94-7
- REACH Candidate Strip Substance
- 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | Diboron trioxide | Lead | Lead monoxide
- RoHS Compliance Status
- Compliant,With Exemption
- RoHS Exemption
- 6(c) | 7(a) | 7(c)-I | 7(c)-II
- SCIP notification number (Austria)
- 88b095ec-76a2-44ba-bc4f-8af04d3aa869
- SCIP notification number (Belgium)
- 1f36d4b5-c2bd-4fa4-9ba7-fab4560274ea
- SCIP notification number (Bulgaria)
- ece2741c-94c2-4643-8455-4af30ed67835
- SCIP notification number (Czech Republic)
- cd95343d-b393-43cf-80b0-cccb5257bbfd
- SCIP notification number (Denmark)
- 8de2a84b-c12a-4761-91dd-b119773534c8
- SCIP notification number (Finland)
- 37dca7ef-68a8-4237-96ee-ffc69fca1b79
- SCIP notification number (France)
- be625ff9-61f8-44cb-a1b4-9c91e7ab498f
- SCIP notification number (Germany)
- 0f1a79bc-42ce-497c-93aa-169b84dec80a
- SCIP notification number (Hungary)
- c75d9660-e9e0-4f6a-8094-a02f7eb002c5
- SCIP notification number (Italy)
- 4058ebcb-e5d3-4e13-8a2c-bb034a513773
- SCIP notification number (Netherlands)
- e09550f1-21a2-4612-b815-cd116bb56de2
- SCIP notification number (Poland)
- 42928b5b-13e1-44dc-bfe4-9af43f5d13b6
- SCIP notification number (Romania)
- 42dd0d9d-70ff-4898-aa20-05f92774b9fb
- SCIP notification number (Sweden)
- d048877f-4660-48fa-8533-a6cfed8010d2
- Rated current
- 5 A
- MPN
- 2687-2144
- Radio frequency
- 868 MHz
- Rolling code system
- No
- Range
- 300 m
- With manual radio transmitter
- No
- Flush-mounted radio transmitter
- No
- Surface mounted radio transmitter
- Yes
- With radio coding device
- No
- Degree of protection (IP)
- IP20
- Keyboard protection cover
- No
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4066966401080
- SAP 1200549154
- Code 82881267
Product Documentation
Document preview: Power supply; Eco 2; 1-Phase; 24 VDC output voltage; 5 A output current; DC OK contact (2687-2144) — Specification sheet
