4-Channel analog input; for PT100/RTD resistance sensors

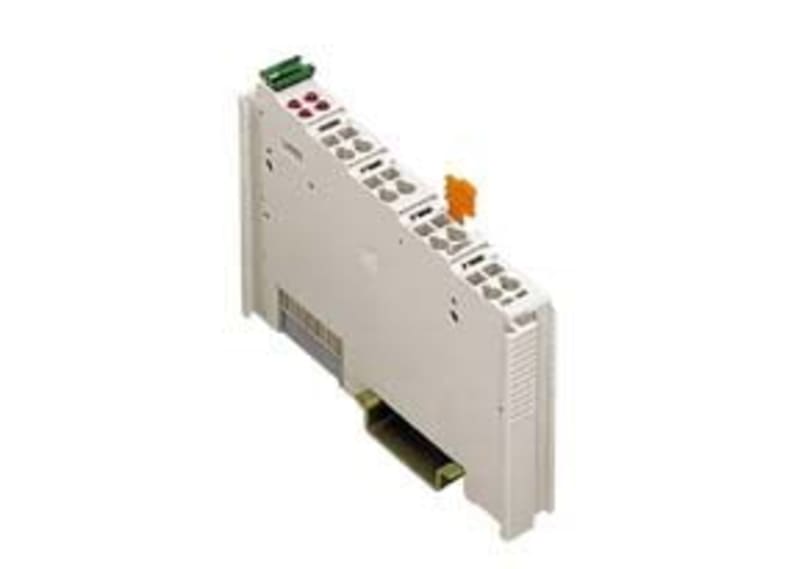

WAGO 750-460 Manufacturer description: 4-channel analog input; For Pt100/RTD resistance sensors. 4-channel analog input;For Pt100/RTD motstandssensorer;light grey.

Manufacturer part number (MPN)

750-460

EAN / GTIN

4045454848927

Sales unit

pcs

Number of analog inputs

4

Total number of channels (module)

4

Signal type

Resistance measurement

Sensor connection

4 x (2-wire)

Data width

4 x 16-bit data; 4 x 8-bit control/status (optional)

Resolution (over entire range)

0.1 °C

Conversion time (typ.)

250 ms

Measurement error (reference temperature)

25 °C

Measurement error, deviation (max.) from the upper-range value

0.2 %

Temperature error (max.) of the upper-range value

0.01 %/K

Measuring current (typ.)

0.5 mA

Sensor types

Pt100

Temperature range

−200 … +850 °C

Supply voltage (system)

5 VDC; via data contacts

Current consumption (system supply)

65 mA

Isolation

500 V system/field

Indicators

LED (A-D) red: Error AI 1 … AI 4

Connection technology

I/O: 8 x CAGE CLAMP®

Connectable conductor materials

Copper

Connection type

Inputs/Outputs

Solid conductor

0.08 … 2.5 mm² / 28 … 14 AWG

Fine-stranded conductor

0.08 … 2.5 mm² / 28 … 14 AWG

Strip length

8 … 9 mm / 0.31 … 0.35 inches

Width

12 mm / 0.472 inches

Height

100 mm / 3.937 inches

Depth

69.8 mm / 2.748 inches

Depth from upper-edge of DIN-rail

62.6 mm / 2.465 inches

Mounting type

DIN-35 rail

Pluggable connector

fixed

Color

light gray

Housing material

Polycarbonate; polyamide 6.6

Fire load

0.085 MJ

Weight

51.8 g

Conformity marking

CE

Ambient temperature (operation)

0 … +55 °C

Ambient temperature (storage)

-40 … +85 °C

Protection type

IP20

Pollution degree

2 per IEC 61131-2

Operating altitude

0 … 2000 m / 0 … 6562 ft

Mounting position

Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom

Relative humidity (without condensation)

95 %

Vibration resistance

Per IEC 60068-2-6

Shock resistance

15g per IEC 60068-2-27

EMC immunity to interference

per EN 61000-6-2

EMC emission of interference

per EN 61000-6-4

Exposure to pollutants

Per IEC 60068-2-42 and IEC 60068-2-43

Permissible H2S contaminant concentration at a relative humidity 75 %

10 ppm

Permissible SO2 contaminant concentration at a relative humidity 75 %

25 ppm

Product Group

15 (I/O System)

PU (SPU)

1 pcs

Packaging type

box

Country of origin

DE

Customs tariff number

85437090990

UNSPSC

32,151,706

eCl@ss 10.0

27-24-26-01

eCl@ss 9.0

27-24-26-01

ETIM 9.0

EC001596

ETIM 10.0

EC001596

ECCN

NO US CLASSIFICATION

RoHS Compliance Status

Compliant,No Exemption

Power consumption

1 W

Certified for UL hazardous location division 1

Yes

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

Yes

Certified for UL hazardous location group B (hydrogen)

Yes

Certified for UL hazardous location group C (ethylene)

Yes

Certified for UL hazardous location group D (propane)

Yes

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

Yes

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Supply voltage DC

5 V

Voltage type (supply voltage)

DC

Input, current

No

Input, voltage

No

Input, resistor

Yes

Input, resistance thermometer

No

Input, thermocouple

No

Input signal, configurable

No

Resolution of the analogue inputs

12 Bit

Output, current

No

Output, voltage

No

Output signal configurable

No

Number of analogue inputs

4

Analogue inputs configurable

No

Analogue outputs configurable

No

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

No

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

System accessory

Yes

Degree of protection (IP)

IP20

HS Code

8538.90
