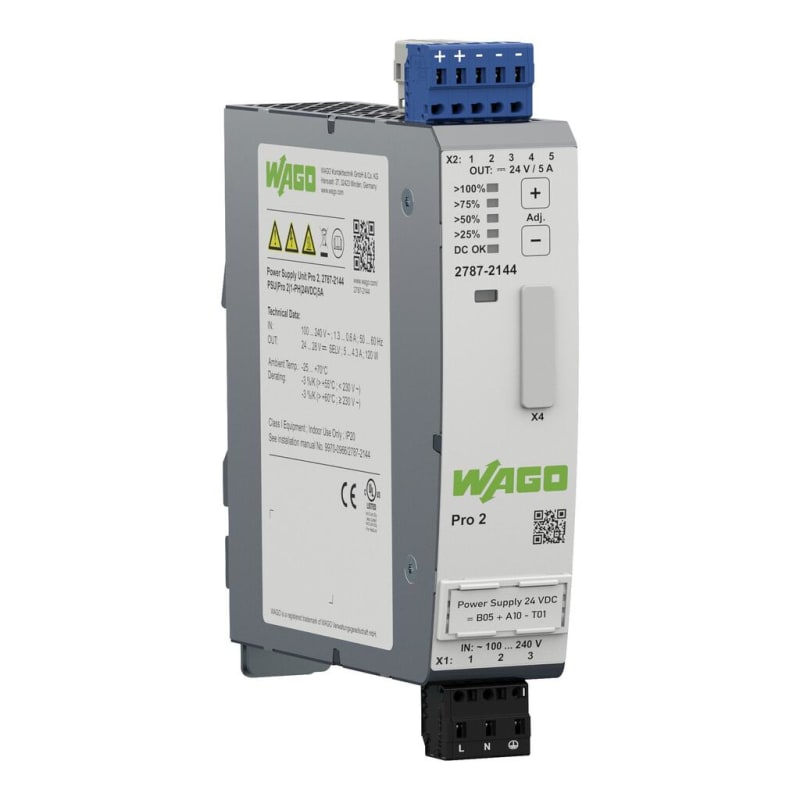

Power supply, Pro 2, 1-Phase, 24 VDC output voltage, 5 A output current

WAGO 2787-2144 Manufacturer description: Power supply; Pro 2; 1-phase; 24 VDC output voltage; 5 A output current; TopBoost + PowerBoost; communication capability. Power supply; Pro 2; 1-phase; 24 VDC; 5 A; TopBoost + PowerBoost; communication capability.

Manufacturer part number (MPN)

2787-2144

EAN / GTIN

4055143907415

Sales unit

pcs

Isolation voltage (pri.-sec., AC)

3,510 V

Isolation voltage (pri.-PE, AC)

2,200 V

Isolation voltage (sec.-PE)

0.5 kVDC

Isolation voltage (sec.-signal)

0.5 kVDC

Protection class

I

Protection type

IP20; per EN 60529

Resistance to reverse feed

≤ 35 VDC

Overvoltage category

III (≤ 2000 m a.s.l.); II (> 2000 m a.s.l.)

Pollution degree

2

Transient suppression (primary)

Yes

Overvoltage protection; secondary

Internal protective circuit | ≤ 35 VDC (in the event of a fault)

Short-circuit-protected

Yes

Open-circuit-proof

Yes

Parallel operation

Yes

Series operation

Yes

MTBF

> 1,000,000 h (per IEC 61709)

Width

35 mm / 1.378 inches

Height

130 mm / 5.118 inches

Depth from upper-edge of DIN-rail

130 mm / 5.118 inches

Mounting type

DIN-35 rail

Weight

650 g

Ambient temperature (operation)

-25 … +70 °C (Device starts at -40 °C (type-tested))

Ambient temperature (storage)

-40 … +85 °C

Relative humidity

5 … 96 % (no condensation permissible)

Derating

See instruction leaflet

Climatic category

3K3 (per EN 60721)

Operating altitude (max.)

5000 m

Conformity marking

CE

Standards/specifications

UL 121201 (HazLoc) | EN 61010-2-201 | EN 61204-3 | UL 61010-1 | UL 61010-2-201 | SEMI F47

PU (SPU)

1 pcs

Packaging type

box

Country of origin

CN

Customs tariff number

85044083900

UNSPSC

39,121,004

ETIM 9.0

EC002540

ETIM 10.0

EC002540

ECCN

NO US CLASSIFICATION

RoHS Compliance Status

Compliant,No Exemption

Rated current

5 A

MPN

2787-2144

Voltage type (supply voltage)

AC

1st secondary output voltage

24–28 V

Max. output current 1

5 A

Secondary voltage adjustable

Yes

Nominal value output voltage 1

24 V

Nominal value output current 1

5 A

Nominal value output current 2

5 A

Nominal value output current 3

5 A

Short-circuit-proof

Yes

Rated supply voltage AC 50 Hz

100–240 V

Rated supply voltage AC 60 Hz

100–240 V

Rated supply voltage DC

100–240 V

Output voltage stabilized

Yes

Power output

120 W

Stabilized

Yes

Type of electric connection

Spring clamp connection

Suitable for rail mounting

Yes

Wall mounting possible

No

Suitable for distribution board

No

Width in number of modular spacings

2

Direct mounting possible

No

Depth

130 mm

Suitable for safety functions

No

Degree of protection (IP)

IP20

Suitable for wall mounting

No

HS Code

8504.40
