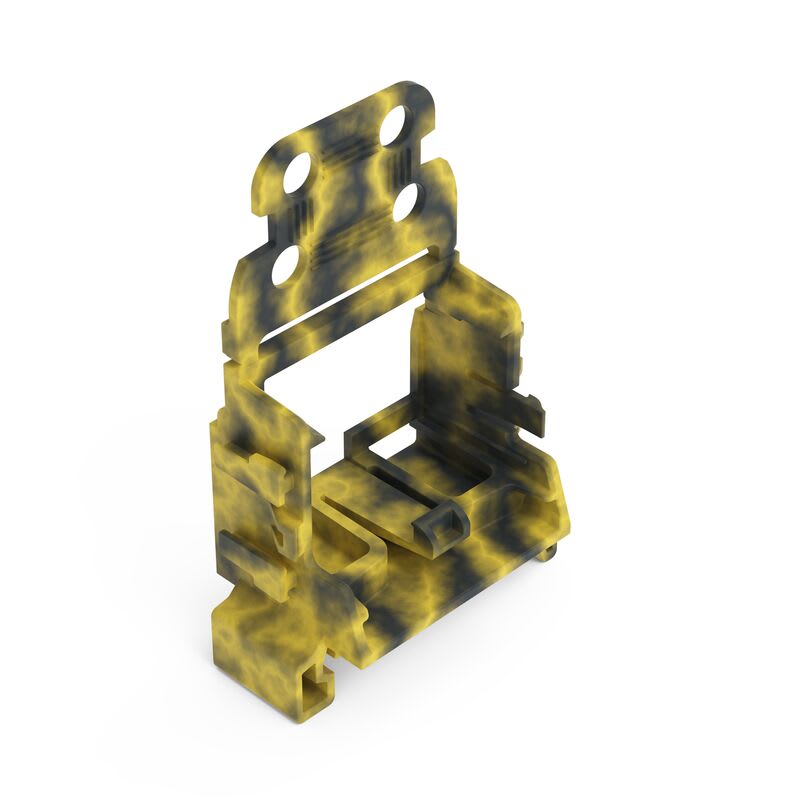

WAGO 221-549/000-053 Holder for 221 10-Way, grey/yellow
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 221-549/000-053 mounting carrier for 221 Series 10-way splicing connectors with strain relief, DIN-35 rail mount, grey/yellow. Suits 10-wire connectors up to 4 mm² conductor cross-section; snap-on installation for tool-free assembly. Polyamide PA66 body rated V0 per UL94 for flammability performance.
Technical Specifications
- Manufacturer part number (MPN)
- 221-549/000-053
- EAN / GTIN
- 4066966603866
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Width
- 43 mm / 1.693 inches
- Height
- 23.7 mm / 0.933 inches
- Depth from upper-edge of DIN-rail
- 57.7 mm / 2.272 inches
- Depth
- 64 mm / 2.52 inches
- Mounting type
- Snapping on
- Suitable
- for 10-wire connectors (4 mm²)
- Color
- white
- Material group
- I
- Insulation material (main housing)
- Polyamide (PA66)
- Flammability class per UL94
- V0
- Fire load
- 0.191 MJ
- PU (SPU)
- 10 pcs
- Packaging type
- Box
- Customs tariff number
- 39269097900
- ETIM 9.0
- EC002848
- ETIM 10.0
- EC002848
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- Type of accessory/spare part
- Mounting foot
- Accessory
- Yes
- Spare part
- Yes
- Country of origin
- China
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 4066966603866
- SAP 1200824269
- Code 84010314
