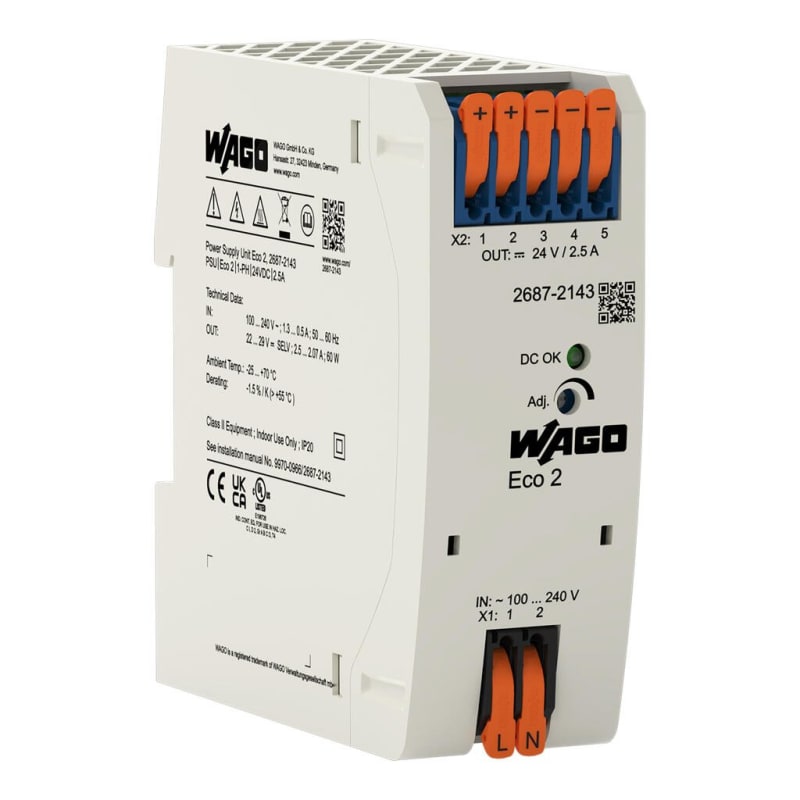

WAGO 2687-2143 Power Supply Eco 2 1-Phase 24 VDC 2.5 A DC-OK LED
Pricing
Request a quote
We reply within 24 hours
Product Description
Single-phase primary-switched DIN-rail power supply from the WAGO Eco 2 range delivering 24 VDC at 2.5 A with a DC-OK LED indicator. Protection class II, IP20, with short-circuit, open-circuit, parallel and series operation support and 3510 V isolation between primary and secondary. Housing 35 x 100 mm with 90 mm depth from the DIN-35 rail; ambient operating range -25 to +70 °C.
Technical Specifications
- Manufacturer part number (MPN)
- 2687-2143
- EAN / GTIN
- 4066966480061
- Sales unit
- pcs
- Isolation voltage (pri.-sec., AC)
- 3,510 V
- Protection class
- II
- Protection type
- IP20; per EN 60529
- Resistance to reverse feed
- ≤ 35 VDC
- Overvoltage category
- III (≤ 2000 m a. s.l.); II (>2000 m a. s.l.)
- Pollution degree
- 2
- Short-circuit-protected
- Yes
- Open-circuit-proof
- Yes
- Parallel operation
- Yes
- Series operation
- Yes
- MTBF
- > 1,100,000 h
- Width
- 35 mm / 1.378 inches
- Height
- 100 mm / 3.937 inches
- Depth from upper-edge of DIN-rail
- 90 mm / 3.54 inches
- Mounting type
- DIN-35 rail
- Weight
- 250 g
- Ambient temperature (operation)
- -25 … +70 °C (Device starts at -40 °C (type-tested))
- Ambient temperature (storage)
- -40 … +85 °C
- Relative humidity
- 5 … 96 % (no condensation permissible)
- Derating
- -1.5 %/K (> 55 °C)
- Climatic category
- 3K3 (per EN 60721)
- Operating altitude (max.)
- 5000 m
- Conformity marking
- CE; UKCA
- Standards/specifications
- EN 61010-1 | EN 61010-2-201 | EN 61204-3 | UL 61010-1 | UL 61010-2-201 | SEMI F47 | UL 121201 (HazLoc)
- PU (SPU)
- 1 pcs
- Packaging type
- Box
- Country of origin
- CN
- Customs tariff number
- 85044083900
- UNSPSC
- 39,121,004
- ETIM 9.0
- EC002540
- ETIM 10.0
- EC002540
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- SCIP notification number (Austria)
- e017187f-9e94-48f1-87d8-dd2bb4c80249
- SCIP notification number (Belgium)
- 48b90fd9-af9e-42fb-9817-40509f3746fc
- SCIP notification number (Bulgaria)
- be1e41b3-a542-4051-9b85-652f2f6d1a4d
- SCIP notification number (Czech Republic)
- 23e57abf-4f13-4729-8ee6-037120462b0b
- SCIP notification number (Denmark)
- ce5521f3-89fa-46ed-b119-44241bcbb9da
- SCIP notification number (Finland)
- af0ac358-7114-4f8c-8e4a-39cfc778c6d1
- SCIP notification number (France)
- 7059bd10-bc24-4622-b9a7-52edb8b6ac4f
- SCIP notification number (Germany)
- 15c620d6-5799-4bbb-8261-2cd43fe6fae6
- SCIP notification number (Hungary)
- f5d0f531-abaa-4b3f-aae9-38875074b6c5
- SCIP notification number (Italy)
- fb3cb27a-d888-4690-83cc-95d6d15b4906
- SCIP notification number (Netherlands)
- a0188a42-c999-4daa-9d0d-92c37e10b6a3
- SCIP notification number (Poland)
- 14ad6c5a-05de-4056-beeb-51cd36b95272
- SCIP notification number (Romania)
- 596802ac-d363-4a11-95de-76252c1e49d6
- SCIP notification number (Sweden)
- 4dc8b222-ea9a-4c84-82fa-83702da0254b
- MPN
- 2687-2143
- Voltage type (supply voltage)
- AC
- 1st secondary output voltage
- 22–29 V
- Max. output current 1
- 2.5 A
- Secondary voltage adjustable
- Yes
- Nominal value output voltage 1
- 24 V
- Nominal value output current 1
- 2.5 A
- Short-circuit-proof
- Yes
- Rated supply voltage AC 50 Hz
- 100–240 V
- Rated supply voltage AC 60 Hz
- 100–240 V
- Output voltage stabilized
- Yes
- Power output
- 60 W
- Stabilized
- Yes
- Type of electric connection
- Spring clamp connection
- Suitable for rail mounting
- Yes
- Wall mounting possible
- No
- Suitable for distribution board
- Yes
- Width in number of modular spacings
- 2
- Direct mounting possible
- No
- Depth
- 90 mm
- Suitable for safety functions
- No
- Degree of protection (IP)
- IP20
- Suitable for wall mounting
- No
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4066966480061
- SAP 1200824938
- Code 84010839
Product Documentation
More from WAGO
WAGO

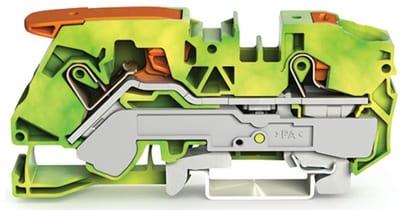

2-Conductor ground terminal block, 16 mm², for DIN-rail 35 x 15 and 35 x 7.5 (2116-5207)
WAGO

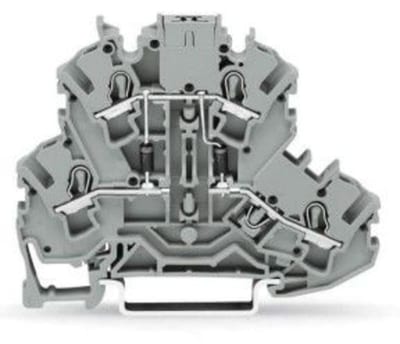

Komponentklemme (2002-2214/1000-492)
WAGO

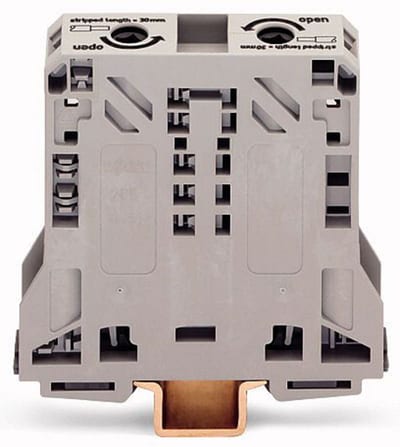

2-Conductor through terminal block, 50 mm², only for DIN 35 x 15 rail (285-150)
WAGO

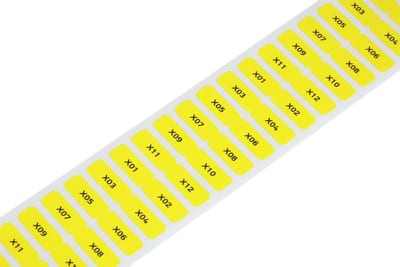

WAGO Marking Tag (210-807/000-002)
WAGO

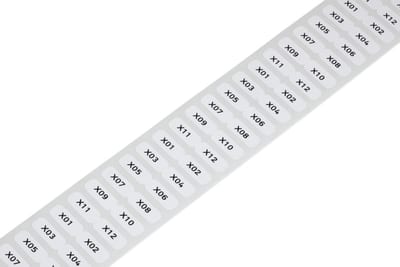

Labels; for Smart Printer; permanent adhesive; 6 x 15 mm; 3000 pieces on roll; white
210-805
WAGO

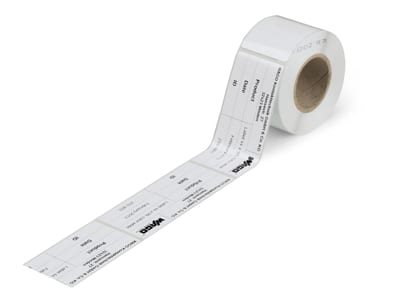

Type labels; 70 x 33 mm; white
