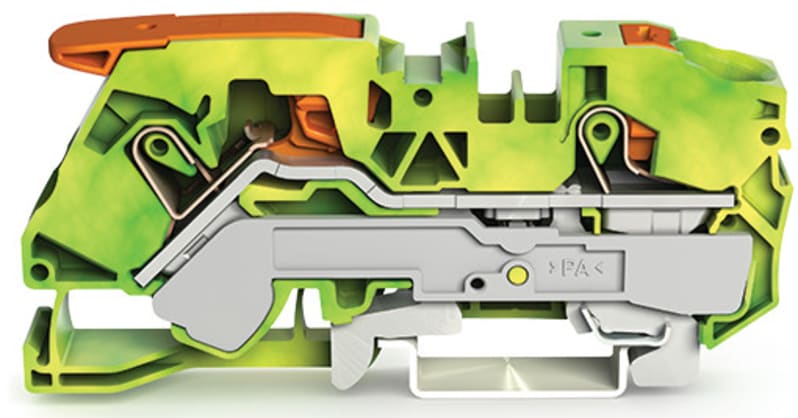

2-Conductor ground terminal block, 16 mm², for DIN-rail 35 x 15 and 35 x 7.5 (2116-5207)

WAGO 2116-5207 Manufacturer description: 2-conductor ground terminal block; with lever and push-button; 16 mm²; with test port; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 16,00 mm²; green-yellow. 2-conductor earth clamp;with lever and push-button;16 mm²;green-yellow.

Manufacturer part number (MPN)

2116-5207

EAN / GTIN

4055143754453

Sales unit

pcs

Package quantity

20 pcs

Clamping units

2

Total number of potentials

1

Number of levels

1

Number of jumper slots

2

Width

12 mm / 0.472 inches

Height

91.5 mm / 3.602 inches

Depth from upper-edge of DIN-rail

37.1 mm / 1.461 inches

Depth

43.7 mm / 1.72 inches

Mounting type

DIN-35 rail

Marking level

Center/side marking

Color

green-yellow

Material group

I

Insulation material (main housing)

Polyamide (PA66)

Flammability class per UL94

V0

Fire load

0.464 MJ

Actuator color

orange

Weight

40.2 g

Continuous operating temperature

-60 … +105 °C

PU (SPU)

20 pcs

Packaging type

box

Country of origin

DE

Customs tariff number

85369010000

UNSPSC

39,121,410

eCl@ss 10.0

27-14-11-41

eCl@ss 9.0

27-14-11-41

ETIM 9.0

EC000901

ETIM 10.0

EC000901

ECCN

NO US CLASSIFICATION

RoHS Compliance Status

Compliant,No Exemption

Conductor cross-section

16 mm²

MPN

2116-5207

PEN function possible

Yes

Connectable conductor cross section solid-core

2.5–16 mm²

Connectable conductor cross section multi-wired

0.5–16 mm²

Type of electrical connection 1

Spring clamp connection

Type of electrical connection 2

Spring clamp connection

Connection position

Atop

Number of clamp positions per level

2

Mounting method

DIN rail (top hat rail) 35 mm

Material insulation body

Thermoplastic

Operating temperature

105 °C

Width/grid dimension

12 mm

Length

91 mm

Closing plate required

Yes

Colour

Green/yellow

HS Code

8536.90
