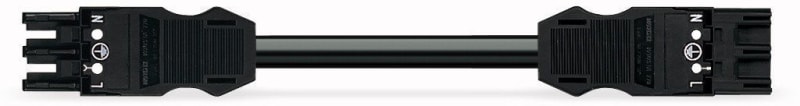

Cable 2M 3X25MM Black
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 771-9993/007-201 Winsta Pluggable cabling system, quick-mounting system.
Technical Specifications
- Manufacturer part number (MPN)
- 771-9993/007-201
- EAN / GTIN
- 4044918585088
- HS code
- 8544.42
- Sales unit
- pcs
- Halogen free
- No
- Nominal cross section conductor
- 2.5 mm²
- Cable type
- H05VV-F
- Housing colour
- Black
- Type of locking
- Separate
- Rated current
- 20 A
- Rated voltage
- 250 V
- Total length
- 2000 mm
- Number of poles
- 3
- Housing material
- Polyamide (PA)
- Colour outer sheath
- Black
- Cable diameter
- 9.2–11.4 mm
- Surface treatment contacts
- Tinned
- Pollution degree
- 3
- Mechanical coding
- Yes
- Rated surge voltage
- 4 kV
- Continuity resistance
- 1 mOhm
- Contact material
- CuSn
- Degree of protection (IP)
- IP20
- Pole codification
- L, N, PE
- Colour coding/contact insert
- Black
- Fire load
- 1.61306 kWh
- Type of finished cable
- Connecting cable
- Type side 1
- Bus
- Type side 2
- Plug
- Insulating piece permanent temperature-resistant
- 105 °C
- Conductor end treatment
- Ultrasonic compressed wire ends
- Cable permanent temperature-resistant to
- 70 °C
- Max. operating temperature at conductor
- 85 °C
- Reaction-to-fire according to EN 13501-6
- Class: Eca
- RAL-number coding/contact insert
- 9004
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 4044918585088
- SAP 1000094304
- Code 8917920
Product Documentation
More from WAGO
WAGO

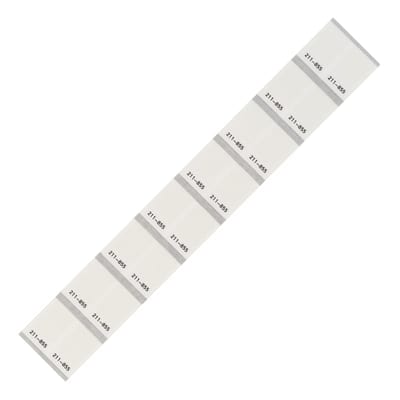

Self-laminating labels; for Smart Printer; 9 x 18 mm; white
211-855
WAGO

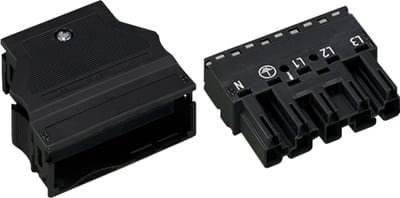

Plug; with strain relief housing; 5-Pole; Cod. A; 4,00 mm²; black
770-115
WAGO

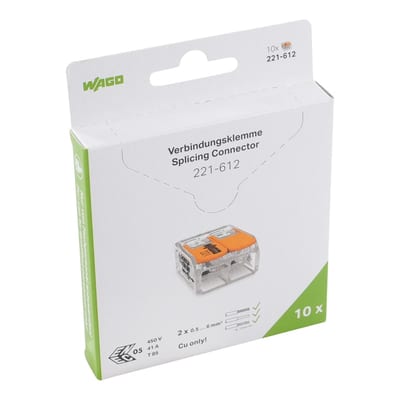

Wago Terminal block Blister (221-612/995-010)
WAGO

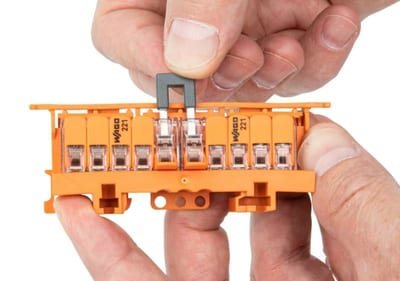

Jumper; for conductor entry; 2-Way; insulated; dark gray (221-941)
WAGO

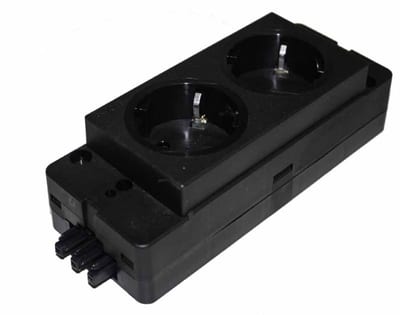

Evoline Express socket White
8006-099/K000-0012
WAGO

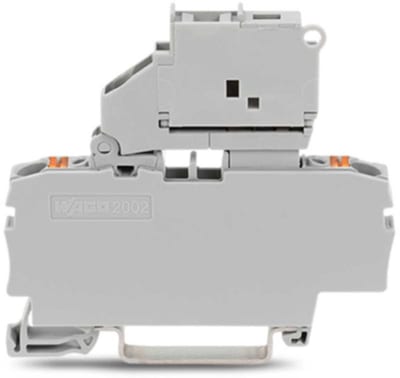

2-Conductor fuse terminal
2202-1611/1000-541
WAGO

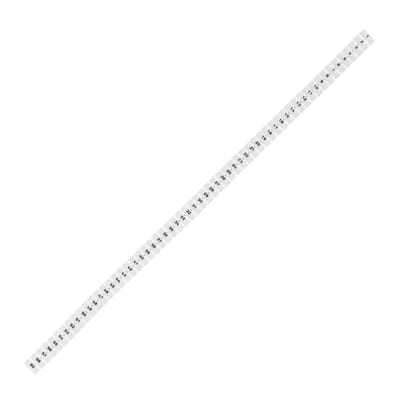

WMB-Inline, 900 pieces on roll, stretchable 5 - 5.2 mm
2009-515
WAGO

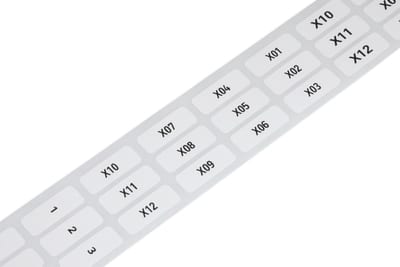

Labels; for Smart Printer; 9.5 x 25 mm; white
