2-Conductor fuse terminal
Pricing
Request a quote
We reply within 24 hours
Product Description

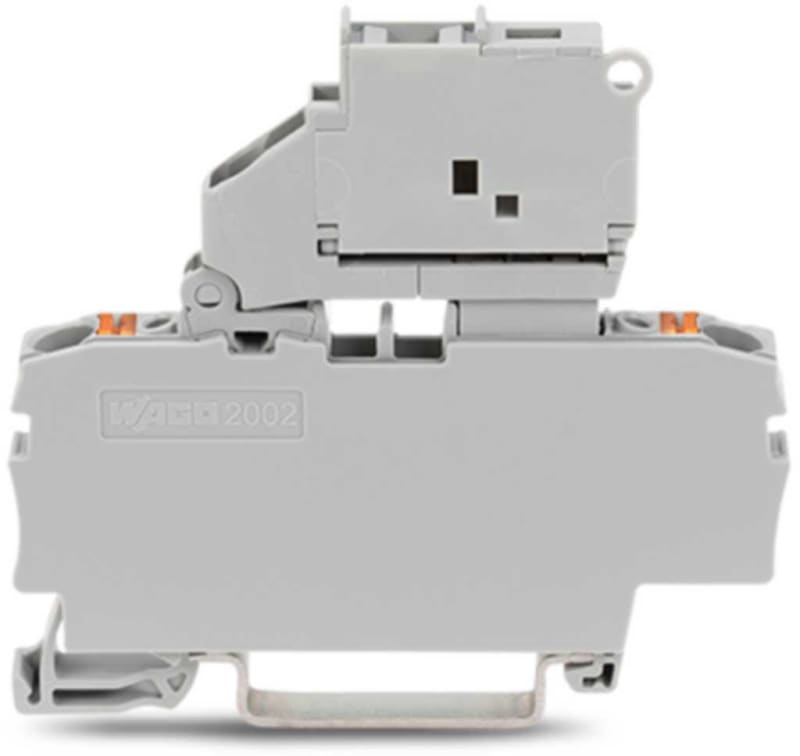

WAGO 2202-1611/1000-541 2-conductor fuse terminal;with swivelling fuse holder;with end plate;grey.
Technical Specifications
- Manufacturer part number (MPN)
- 2202-1611/1000-541
- EAN / GTIN
- 4066966333978
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Clamping units
- 2
- Total number of potentials
- 1
- Number of levels
- 1
- Number of jumper slots
- 2
- Width
- 6.2 mm / 0.244 inches
- Height
- 66.1 mm / 2.602 inches
- Depth from upper-edge of DIN-rail
- 57.6 mm / 2.268 inches
- Mounting type
- DIN-35 rail
- Marking level
- Center/side marking
- Color
- gray
- Material group
- I
- Insulation material (main housing)
- Polyamide (PA66)
- Flammability class per UL94
- V0
- Fire load
- 0.256 MJ
- Actuator color
- orange
- Processing temperature
- -35 … +85 °C
- Continuous operating temperature
- -60 … +105 °C
- PU (SPU)
- 50 pcs
- Packaging type
- box
- Customs tariff number
- 85369095000
- UNSPSC
- 39,121,410
- ETIM 9.0
- EC000899
- ETIM 10.0
- EC000899
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4066966333978
- SAP 1200854254
- Code 84068908
Product Documentation
More from WAGO
WAGO
WMB-Inline, 900 pieces on roll, stretchable 5 - 5.2 mm
2009-515
WAGO
Labels; for Smart Printer; 9.5 x 25 mm; white
210-808
WAGO

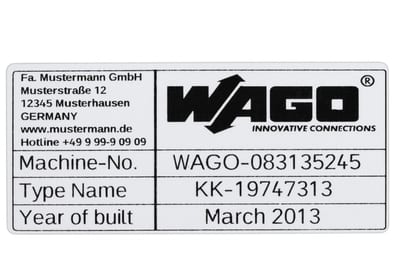

Type labels; 70 x 33 mm; silver-colored
210-802
WAGO

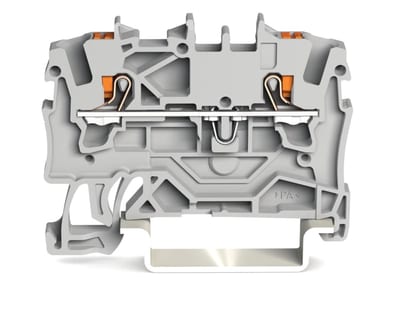

2-Conductor through terminal block, 1.5 mm², for DIN-rail 35 x 15 and 35 x 7.5 (2201-1201)
WAGO

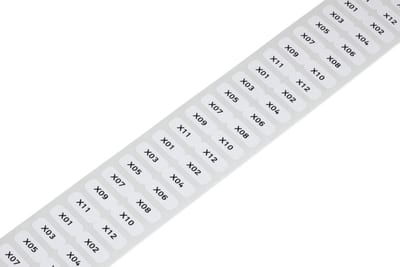

WAGO Marking Tag (210-805/000-002)
WAGO

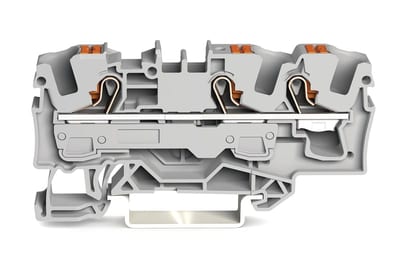

3-Conductor through terminal block, 6 mm², for DIN-rail 35 x 15 and 35 x 7.5 (2206-1301)
WAGO

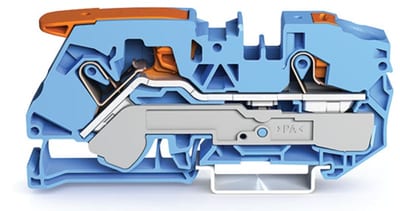

2-Conductor through terminal block, 16 mm², for DIN-rail 35 x 15 and 35 x 7.5 (2116-5204)
WAGO

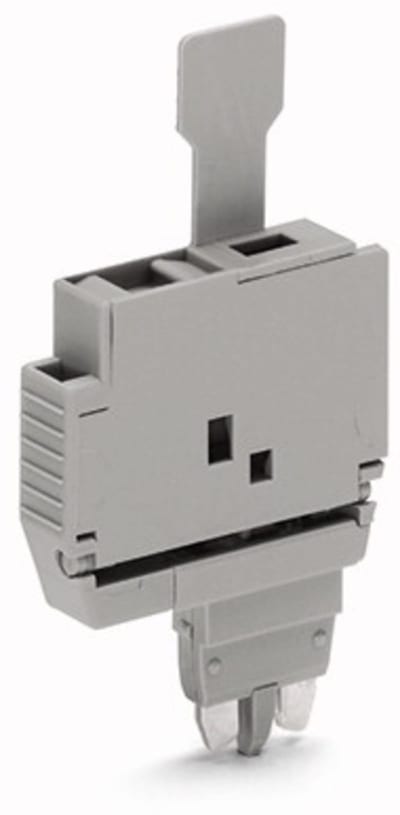

Fuse plug, for miniature metric fuses 5 x 20 mm and 5 x 25 mm, 6.1 mm wide
