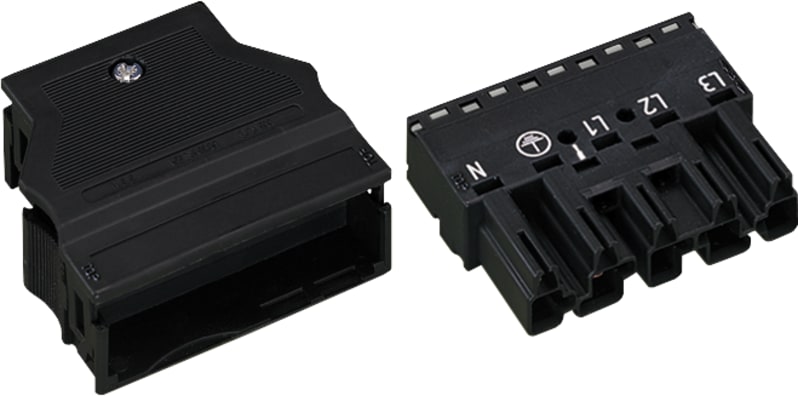

Plug; with strain relief housing; 5-Pole; Cod. A; 4,00 mm²; black

WAGO 770-115 Manufacturer description: Plug; with strain relief housing; 5-pole; Cod. A; 4,00 mm²; black. Winsta Pluggable cabling system, quick-mounting system.

Manufacturer part number (MPN)

770-115

EAN / GTIN

4044918254441

Sales unit

pcs

Package quantity

25 pcs

Clamping units

10

Total number of potentials

5

PE function

Preceding PE contact

Pin spacing

10 mm / 0.394 inches

Width

54.6 mm / 2.15 inches

Height

17 mm / 0.669 inches

Depth

76 mm / 2.992 inches

Use

General mains applications

Coding

A

Variable coding

Yes

Marking

L3 L2 L1 ⏚ N

Potential marking

L3 L2 L1 ⏚ N

Mating force of a plug-in connection

approx. 20 … 70 N (depending on pole number)

Retention force of a plug-in connection

Locked: > 80 N

Unmating force of a plug-in connection

Unlocked: approx. 20 … 70 N (depending on pole number)

Number of mating cycles

200, without resistive load

Protection type

IP20; When mated and secured with a strain relief housing: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)

Screw tightening torque

0.5 Nm

Contact type (pluggable connector)

Male connector/plug

Connector (connection type)

for conductor

Mismating protection

Yes

Locking lever

Can be retrofitted

Locking of plug-in connection

Locking lever

Strain relief

Strain relief housing

Color

black

Cover color

gray

Material group

I

Insulation material (main housing)

Polyamide (PA66)

Flammability class per UL94

V0

Clamping spring material

Chrome-nickel spring steel (CrNi)

Contact material

Copper or copper alloy; surface-treated

Contact Plating

Tin

Fire load

0.687 MJ

Connector color

black

Strain relief color

black

Weight

29.8 g

Processing temperature

-5 … +40 °C

Continuous operating temperature

-35 … +85 °C

Product Group

20 (Winsta)

PU (SPU)

25 pcs

Packaging type

box

Country of origin

PL

Customs tariff number

85366990990

UNSPSC

39,121,402

eCl@ss 10.0

27-44-06-05

eCl@ss 9.0

27-44-06-05

ETIM 9.0

EC002560

ETIM 10.0

EC002560

ECCN

NO US CLASSIFICATION

RoHS Compliance Status

Compliant,No Exemption

MPN

770-115

RAL-number coding/contact insert

9004

Rated voltage

400 V

Rated current

25 A

Number of poles

5

Degree of protection (IP)

IP20

Connection type

Spring clamp connection

Model

Plug

Cable diameter

9–13 mm

Connection cross section (fine-strand)

0.5–4 mm²

Number of connections per pole

2

Pole codification

N, E, 1, 2, 3

Mechanical coding

Yes

Colour coding/contact insert

Black

Type of locking

Separate

With strain relief

Yes

Max. continuous temperature resistance contact part

85 °C

Max. continuous temperature resistance strain relief

105 °C

Housing material

Polyamide (PA)

Halogen free

No

Surface treatment contacts

Tinned

Pollution degree

3

Continuity resistance

1 mOhm

Rated surge voltage

6 kV

Length

76 mm

HS Code

8536.69
