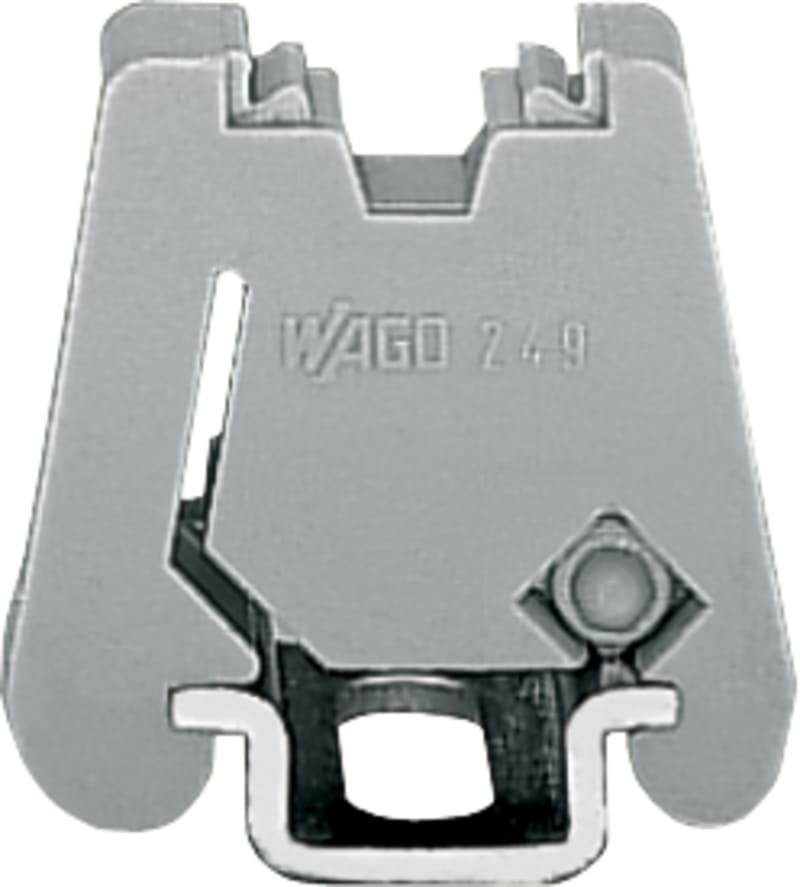

Screwless end stop; 6 mm wide; for WMB markers; gray
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 249-101 Manufacturer description: Screwless end stop; 6 mm wide; for WMB markers; gray. End Stop din 15.
Technical Specifications
- Manufacturer part number (MPN)
- 249-101
- EAN / GTIN
- 4050821427766
- Sales unit
- pcs
- Package quantity
- 25 pcs
- Mounting type
- DIN-15 rail
- Width
- 6 mm / 0.236 inches
- Height
- 23.2 mm / 0.913 inches
- Depth
- 23 mm / 0.906 inches
- Depth from upper-edge of DIN-rail
- 16 mm / 0.63 inches
- Color
- gray
- Insulation material (main housing)
- Polyamide (PA66)
- Flammability class per UL94
- V0
- Fire load
- 0.049 MJ
- Weight
- 1.6 g
- Product Group
- 2 (Terminal Block Accessories)
- PU (SPU)
- 50 (25) pcs
- Packaging type
- box
- Country of origin
- CN
- Customs tariff number
- 39269097900
- UNSPSC
- 39,121,702
- eCl@ss 10.0
- 27-14-11-35
- eCl@ss 9.0
- 27-14-11-35
- ETIM 9.0
- EC001041
- ETIM 10.0
- EC001041
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- MPN
- 249-101
- Mounting method
- DIN rail (top hat rail) 15 mm
- Colour
- Grey
- Length
- 23.2 mm
- Material
- Plastic
- Width/grid dimension
- 6 mm
- Type of latching
- Screwless
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 4050821427766
- SAP 1000054569
- Code 8841727
Product Documentation
More from WAGO
WAGO
KNX Cable Plinth/OPEN END 3M
894-8992/133-306
WAGO
Power supply, Pro 2, 1-Phase, 24 VDC output voltage, 5 A output current
2787-2144
WAGO
WAGO 221-549/000-053 Holder for 221 10-Way, grey/yellow
WAGO
WAGO 285-195 Two-Conductor DIN-Rail Terminal Block, 95 mm², Grey
WAGO
WAGO 221-549/000-006 Holder for 221 10-Way, blue
WAGO
2-Conductor through terminal block, 4 mm², for DIN-rail 35 x 15 and 35 x 7.5 (2004-1204)
WAGO
Relay module, Nominal input voltage: 24 VDC, 2 changeover contacts, Limiting continuous current: 8 A (788-346)
WAGO
KBL3M 5X2,5 Plug/Open END
771-9985/207-301
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 249-101?
- 249-101 can be ordered from cballast.com as a WAGO catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this WAGO product?
- The manufacturer part number is 249-101.
- What is the HS code for 249-101?
- The customs tariff (HS) code for 249-101 is 3926.90.
- Who manufactures 249-101?
- 249-101 is a WAGO product in the Electrical Components range.
- Is a datasheet available for 249-101?
- Yes — the 249-101 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 249-101?
- The minimum order quantity is 1.
- Is 249-101 available?
- Yes — 249-101 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
