Socket; with strain relief housing; 4-Pole; Cod. A; 4,00 mm²; black

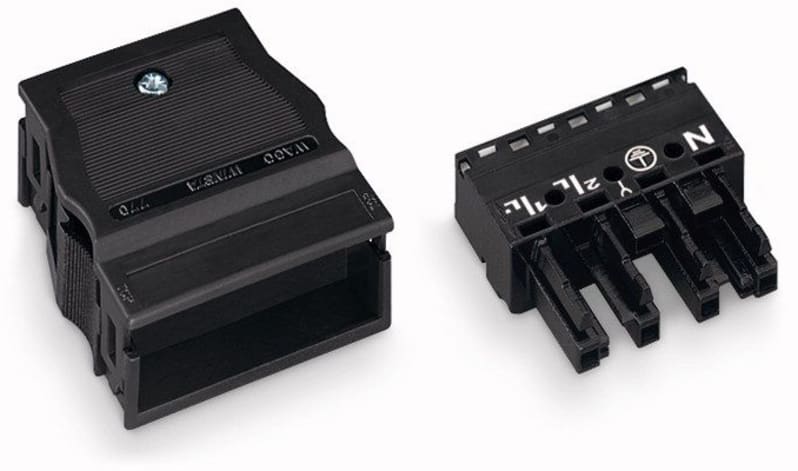

WAGO 770-104 Manufacturer description: Socket; with strain relief housing; 4-pole; Cod. A; 4,00 mm²; black. Winsta Pluggable cabling system, quick-mounting system.

Manufacturer part number (MPN)

770-104

EAN / GTIN

4044918252126

Sales unit

pcs

Package quantity

25 pcs

Clamping units

8

Total number of potentials

4

Pin spacing

10 mm / 0.394 inches

Width

44.6 mm / 1.756 inches

Height

17 mm / 0.669 inches

Depth

76 mm / 2.992 inches

Use

General mains applications

Coding

A

Variable coding

Yes

Marking

N ⏚ 2/L 1/L'

Potential marking

N ⏚ 2/L 1/L'

Mating force of a plug-in connection

approx. 20 … 70 N (depending on pole number)

Retention force of a plug-in connection

Locked: > 80 N

Unmating force of a plug-in connection

Unlocked: approx. 20 … 70 N (depending on pole number)

Number of mating cycles

200, without resistive load

Protection type

IP20; When mated and secured with a strain relief housing: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)

Screw tightening torque

0.5 Nm

Contact type (pluggable connector)

Female connector/socket

Connector (connection type)

for conductor

Mismating protection

Yes

Locking lever

Can be retrofitted

Locking of plug-in connection

Locking lever

Strain relief

Strain relief housing

Color

black

Cover color

gray

Material group

I

Insulation material (main housing)

Polyamide (PA66)

Flammability class per UL94

V0

Clamping spring material

Chrome-nickel spring steel (CrNi)

Contact material

Copper or copper alloy; surface-treated

Contact Plating

Tin

Fire load

0.542 MJ

Connector color

black

Strain relief color

black

Weight

24.6 g

Processing temperature

-5 … +40 °C

Continuous operating temperature

-35 … +85 °C

Product Group

20 (Winsta)

PU (SPU)

25 pcs

Packaging type

box

Country of origin

PL

Customs tariff number

85366990990

UNSPSC

39,121,421

eCl@ss 10.0

27-44-06-05

eCl@ss 9.0

27-44-06-05

ETIM 9.0

EC002560

ETIM 10.0

EC002560

ECCN

NO US CLASSIFICATION

RoHS Compliance Status

Compliant,No Exemption

MPN

770-104

RAL-number coding/contact insert

9004

Rated voltage

400 V

Rated current

25 A

Number of poles

4

Degree of protection (IP)

IP20

Connection type

Spring clamp connection

Model

Bus

Cable diameter

9–13 mm

Connection cross section (fine-strand)

0.5–4 mm²

Number of connections per pole

2

Mechanical coding

Yes

Colour coding/contact insert

Black

Type of locking

Separate

With strain relief

Yes

Max. continuous temperature resistance contact part

85 °C

Max. continuous temperature resistance strain relief

105 °C

Housing material

Polyamide (PA)

Halogen free

No

Surface treatment contacts

Tinned

Pollution degree

3

Continuity resistance

1 mOhm

Rated surge voltage

6 kV

Length

76 mm

HS Code

8536.69
