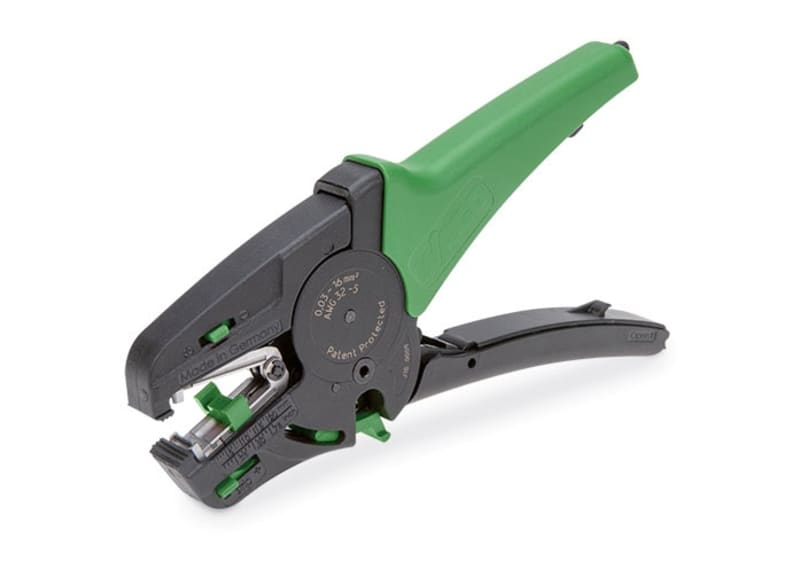

WAGO Quickstrip Vario Wire Stripper 0.03-16 mm2 with Cutter
Pricing
Request a quote
We reply within 24 hours
Product Description
Self-adjusting Quickstrip Vario wire stripper for solid, stranded and fine-stranded copper and aluminium conductors from 0.03 to 16 mm2 (AWG 32 to 5), with strip length adjustable from 3 to 21 mm and integrated wire cutter. Replaceable blade, adjustable notch depth and one-component insulated grip; overall length 210 mm and weight 195 g. Typical application is high-volume termination work in control-panel and switchgear assembly.
Technical Specifications
- Manufacturer part number (MPN)
- 206-1125
- EAN / GTIN
- 4055143885478
- Sales unit
- pcs
- Strip length
- 3 … 21 mm / 0.12 … 0.83 inches
- Solid conductor
- 0.03 … 16 mm² / 32 … 5 AWG
- Fine-stranded conductor
- 0.03 … 16 mm² / 32 … 5 AWG
- Stranded conductor
- 0.03 … 16 mm² / 32 … 5 AWG
- Replaceable blade
- Yes
- Cutting function
- Yes
- Automatic conductor cross-section adjustment
- Yes
- Partial stripping function
- Yes
- Color
- green/black
- Weight
- 195 g
- Conductor material
- For copper / for aluminum
- PU (SPU)
- 1 pcs
- Packaging type
- box
- Country of origin
- DE
- Customs tariff number
- 82032000000
- UNSPSC
- 27,112,116
- ETIM 9.0
- EC002109
- ETIM 10.0
- EC002109
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- EAN
- 4066966861747
- MPN
- 206-1125
- Length
- 210 mm
- Strip range cross-section
- 0.3–16 mm²
- Strip length adjustable
- Yes
- Depth of notch adjustable
- Yes
- Self-adjusting
- Yes
- Jaw length
- 15 mm
- Head width
- 17 mm
- Head height
- 50 mm
- Longitudinal section
- No
- Round edge
- Yes
- Spiral cut
- No
- With wire cutter
- Yes
- Insulated
- Yes
- Isolation protection 1000 V
- No
- Grip design
- 1-component
- ESD tested
- No
- With impact protection
- No
Standards & Compliance
- HS Code
- 8203.20
Cross References
- EAN 4055143885478
- SAP 1200710041
- Code 83815187
