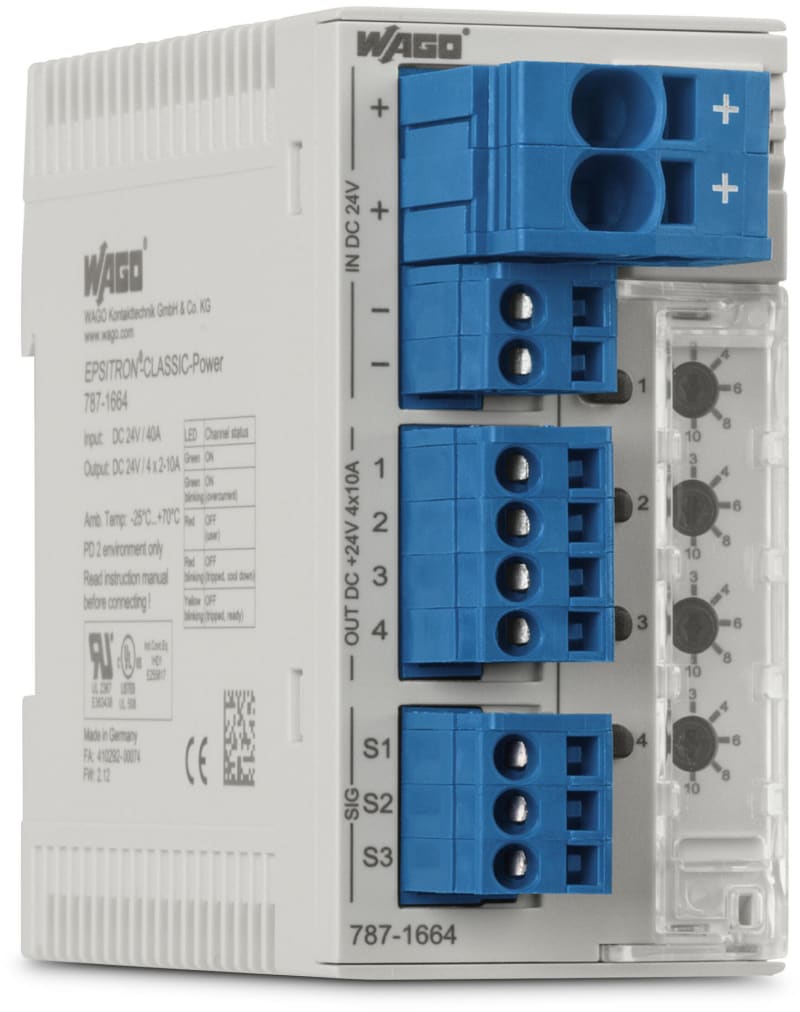

Electronic circuit breaker, 4-Channel, 24 VDC input voltage, adjustable 2 … 10 A, 10,00 mm²
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 787-1664 Manufacturer description: Electronic circuit breaker; 4-channel; 24 VDC input voltage; adjustable 2 … 10 A; communication capability; 10,00 mm². Electronic fuse, 4-channels, 2-10A.
Technical Specifications
- Manufacturer part number (MPN)
- 787-1664
- EAN / GTIN
- 4050821502609
- HS code
- 8536.90
- Sales unit
- pcs
- Isolation voltage (connectors – housing)
- 0.5 kVDC
- Protection class
- III
- Protection type
- IP20; per EN 60529
- Reverse voltage protection
- No
- Resistance to reverse feed
- ≤ 35 VDC
- Pollution degree
- 2
- Transient suppression (primary)
- Suppressor diode (33 V)
- Parallel operation of single channels
- Not permitted
- Series operation
- No
- MTBF
- > 500,000 h (per IEC 61709)
- Width
- 45 mm / 1.772 inches
- Height
- 90 mm / 3.543 inches
- Depth from upper-edge of DIN-rail
- 115.5 mm / 4.547 inches
- Mounting type
- DIN-35 rail
- Weight
- 170 g
- Ambient temperature (operation)
- -25 … +70 °C
- Ambient temperature (storage)
- -25 … +85 °C
- Relative humidity
- 5 … 96 % (no condensation permissible)
- Derating
- ≥ 50 °C (see instruction manual)
- Conformity marking
- CE
- Standards/specifications
- EN 61000-6-2 | EN 61000-6-3 | UL 508 | UL 2367 | DNV
- Product Group
- 6 (INTERFACE ELECTRONIC)
- PU (SPU)
- 1 pcs
- Packaging type
- Box
- Country of origin
- DE
- Customs tariff number
- 85362010900
- UNSPSC
- 39,121,601
- eCl@ss 10.0
- 27-37-18-02
- eCl@ss 9.0
- 27-37-18-02
- ETIM 9.0
- EC001440
- ETIM 10.0
- EC001440
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- Rated current
- 10 A
- MPN
- 787-1664
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4050821502609
- SAP 1000337648
- Code 8965595
Product Documentation
More from WAGO
WAGO
WAGO Cable Marker (211-836/000-002)
WAGO
WAGO Quickstrip Vario Wire Stripper 0.03-16 mm2 with Cutter
206-1125
WAGO
4-Channel analog input; for PT100/RTD resistance sensors
750-460
WAGO
Locking lever; for flying leads; for manual operation; black
770-101
WAGO

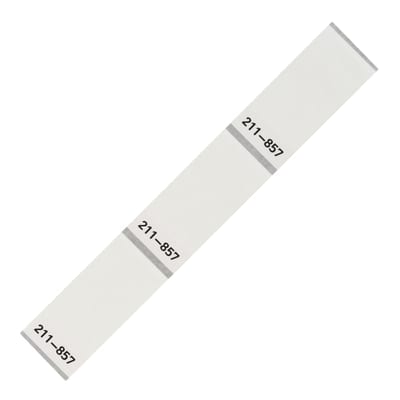

Self-laminating labels; for Smart Printer; 18 x 44 mm; white
211-857
WAGO

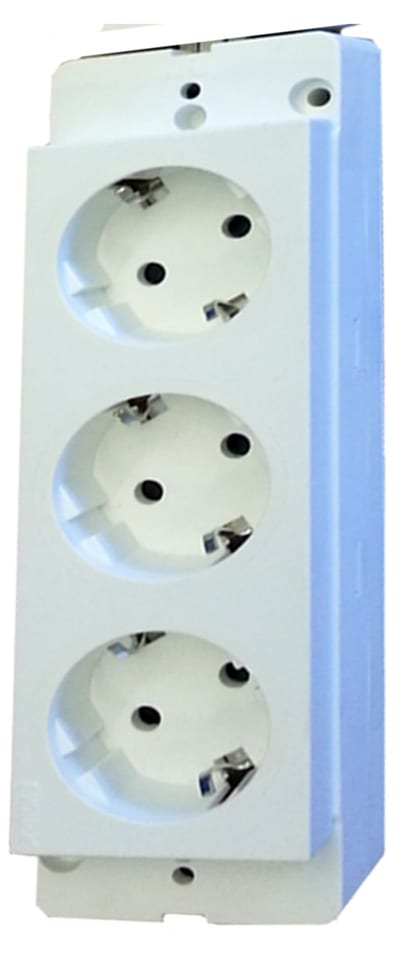

WAGO 51286565 Evoline 3-Way Schuko Socket Push-In In/Out, White
WAGO

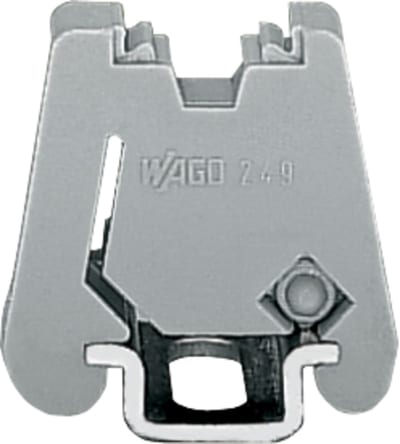

Screwless end stop; 6 mm wide; for WMB markers; gray
