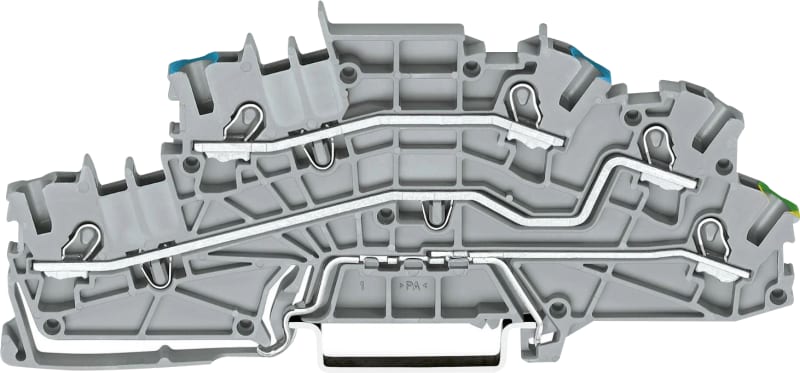

WAGO 2003-6646 TOPJOB S Multi-Level Installation Terminal Block 2.5 mm-squared N/L/PE Grey
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 2003-6646 is a three-level TOPJOB S installation terminal block with Push-in CAGE CLAMP connections, five clamp positions and integrated N/L/PE potential distribution in a 5.2 mm width. Rated 20 A at 250 V, it accepts solid conductors from 0.75 to 4 mm-squared and stranded conductors from 0.25 to 2.5 mm-squared and mounts on 35 mm DIN rail. The design compresses feed-in, neutral and PE circuits onto a single row, typical of distribution boards in residential and commercial installations.
Technical Specifications
- Manufacturer part number (MPN)
- 2003-6646
- EAN / GTIN
- 4050821322061
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Clamping units
- 5
- Total number of potentials
- 3
- Number of levels
- 3
- Width
- 5.2 mm / 0.205 inches
- Height
- 110 mm / 4.331 inches
- Depth from upper-edge of DIN-rail
- 45.2 mm / 1.78 inches
- Potential marking
- N/L/PE
- Mounting type
- DIN-35 rail
- Marking level
- Center/side marking
- Color
- gray
- Material group
- I
- Insulation material (main housing)
- Polyamide (PA66)
- Flammability class per UL94
- V0
- Fire load
- 0.308 MJ
- Weight
- 20.1 g
- Processing temperature
- -35 … +85 °C
- Continuous operating temperature
- -60 … +105 °C
- Product Group
- 22 (TOPJOB S)
- PU (SPU)
- 50 pcs
- Packaging type
- box
- Country of origin
- CN
- Customs tariff number
- 85369010000
- UNSPSC
- 39,121,410
- eCl@ss 10.0
- 27-14-11-25
- eCl@ss 9.0
- 27-14-11-25
- ETIM 9.0
- EC001329
- ETIM 10.0
- EC001329
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- Conductor cross-section
- 2.5 mm²
- MPN
- 2003-6646
- Connectable conductor cross section solid-core
- 0.75–4 mm²
- Connectable conductor cross section multi-wired
- 0.25–2.5 mm²
- Rated current In
- 20 A
- Rated voltage
- 250 V
- Type of electrical connection 1
- Spring clamp connection
- Type of electrical connection 2
- Spring clamp connection
- Number of potentials
- 3
- Mounting method
- DIN rail (top hat rail) 35 mm
- Material insulation body
- Thermoplastic
- Operating temperature
- 105 °C
- Depth
- 45.2 mm
- Closing plate required
- Yes
- Basic colour
- Grey
- PE-function
- Yes
- With N-disconnect slide
- No
- N function possible
- Yes
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4050821322061
- SAP 1200635372
- Code 83049019
