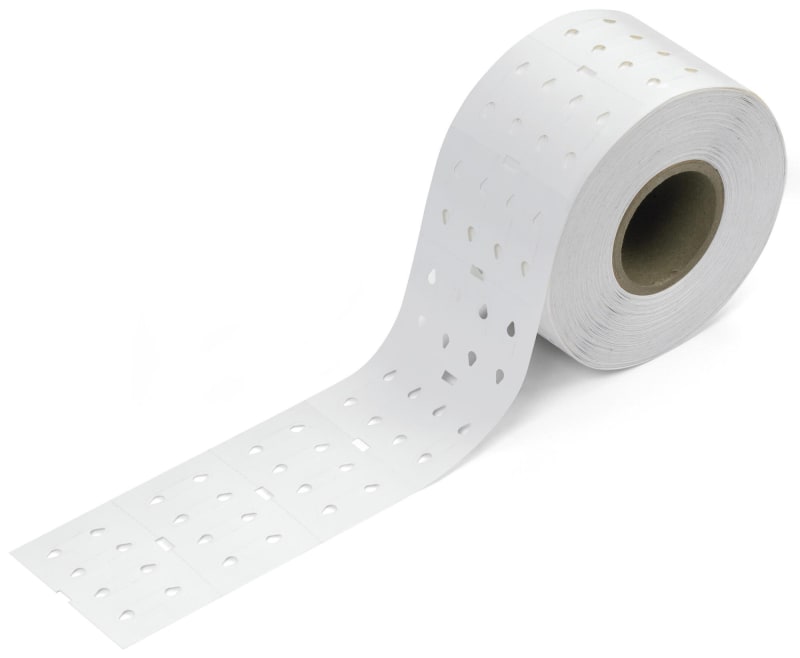

WAGO 211-862 Conductor Markers for Thread-On Mounting 7 x 10.5 mm White
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 211-862 conductor markers thread onto individual wires and identify circuits printed on a WAGO Smart Printer via thermal transfer. The polyester marker measures 7 x 10.5 mm with a 7 x 26 mm marking surface and suits conductor cross-sections from 2.5 to 6 mm-squared. Supplied on a reel of 1000 pieces in three lines, halogen-free and rated for continuous service from -40 to +150 degrees C. Typical use is legend marking of control-cabinet wiring, terminal-block feeds and machine harnesses.
Technical Specifications
- Manufacturer part number (MPN)
- 211-862
- EAN / GTIN
- 4050821688662
- Sales unit
- pcs
- Suitable
- for wire cross-section 2.5 … 6 mm²
- Marking method
- Thermal transfer
- Marking
- plain
- Delivery form
- Roll
- Delivery form configuration
- 1000 pcs/reel; 3 lines
- Printing device
- Smart Printer (Thermal Transfer Printer)
- Depth
- 0.22 mm
- Marking surface
- 7 x 26 mm
- Mounting type
- Sliding on conductor
- Smear resistance
- in conjunction with 258-5005 Ink Ribbon
- Color
- white
- Material
- Polyester
- UV resistance
- EN 60068-2-5:2010 Procedure B
- Adhesive information
- without adhesive
- Halogen-free
- Yes
- Weight
- 156 g
- Fire load
- 0.01 MJ
- Ambient temperature (operation)
- -40 … +150 °C
- Relative humidity
- 40 … 50 %
- Product Group
- 2 (Terminal Block Accessories)
- PU (SPU)
- 1 pcs
- Packaging type
- box
- Country of origin
- DE
- Customs tariff number
- 39269097900
- UNSPSC
- 55,121,612
- eCl@ss 10.0
- 27-40-04-01
- eCl@ss 9.0
- 27-40-06-29
- ETIM 9.0
- EC001530
- ETIM 10.0
- EC001530
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- MPN
- 211-862
- Model
- Roller shape
- Type
- Thin-walled
- Toothing
- None
- Core diameter
- 2.5–6 mm
- Length
- 10.5 mm
- Width
- 7 mm
- Colour
- White
- Transparent
- No
- With label space
- Yes
- Imprint
- None
- Mounting method
- Suspend
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 4050821688662
- SAP 1200079451
- Code 81947356
Product Documentation
