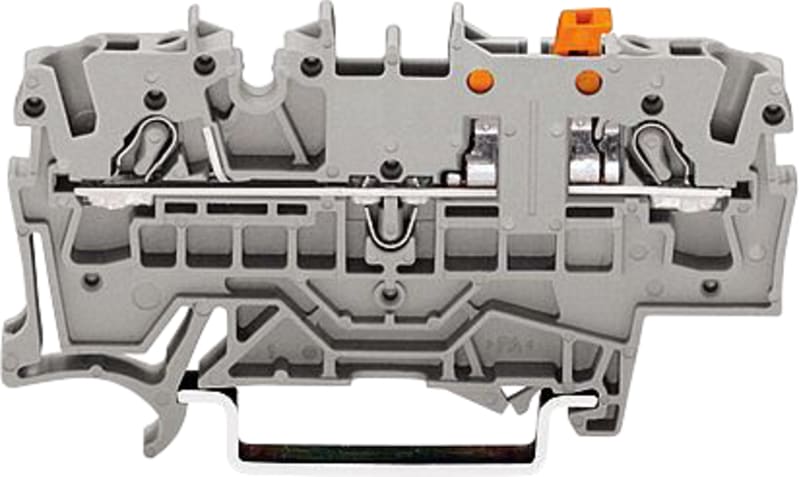

2-Conductor disconnect/test terminal block, for DIN-rail 35 x 15 and 35 x 7.5, 2.5 mm² (2002-1671)
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 2002-1671 Manufacturer description: 2-conductor disconnect/test terminal block; with test option; orange disconnect link; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; gray. Disconnect Terminal 2 Conductor 2,5mm², grey. With ''test option".
Technical Specifications
- Manufacturer part number (MPN)
- 2002-1671
- EAN / GTIN
- 4045454974794
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Clamping units
- 2
- Total number of potentials
- 2
- Number of levels
- 1
- Number of jumper slots
- 2
- Width
- 5.2 mm / 0.205 inches
- Height
- 66.1 mm / 2.602 inches
- Depth from upper-edge of DIN-rail
- 32.9 mm / 1.295 inches
- Mounting type
- DIN-35 rail
- Marking level
- Center/side marking
- Color
- gray
- Material group
- I
- Insulation material (main housing)
- Polyamide (PA66)
- Flammability class per UL94
- V0
- Fire load
- 0.144 MJ
- Weight
- 7.7 g
- Processing temperature
- -35 … +85 °C
- Continuous operating temperature
- -60 … +105 °C
- Product Group
- 22 (TOPJOB S)
- PU (SPU)
- 50 pcs
- Packaging type
- box
- Country of origin
- CN
- Customs tariff number
- 85365080000
- UNSPSC
- 39,121,410
- eCl@ss 10.0
- 27-14-11-26
- eCl@ss 9.0
- 27-14-11-26
- ETIM 9.0
- EC000902
- ETIM 10.0
- EC000902
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- Conductor cross-section
- 2.5 mm²
- EAN
- 4055143872713
- MPN
- 2002-1671
- Connectable conductor cross section solid-core
- 0.75–4 mm²
- Connectable conductor cross section multi-wired
- 0.25–2.5 mm²
- Rated current In
- 16 A
- Rated voltage
- 400 V
- Type of electrical connection 1
- Spring clamp connection
- Type of electrical connection 2
- Spring clamp connection
- Connection position
- Atop
- Number of clamp positions per level
- 2
- Internally connected stages
- No
- Mounting method
- DIN rail (top hat rail) 35 mm
- Material insulation body
- Thermoplastic
- Operating temperature
- 105 °C
- Width/grid dimension
- 5.2 mm
- Depth
- 32.9 mm
- Closing plate required
- Yes
- Colour
- Grey
- Type of slitting
- None
- Type of cross disconnection
- None
- With integrated test socket
- No
- Length
- 66.1 mm
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4045454974794
- SAP 1000078454
- Code 8569603
Product Documentation
