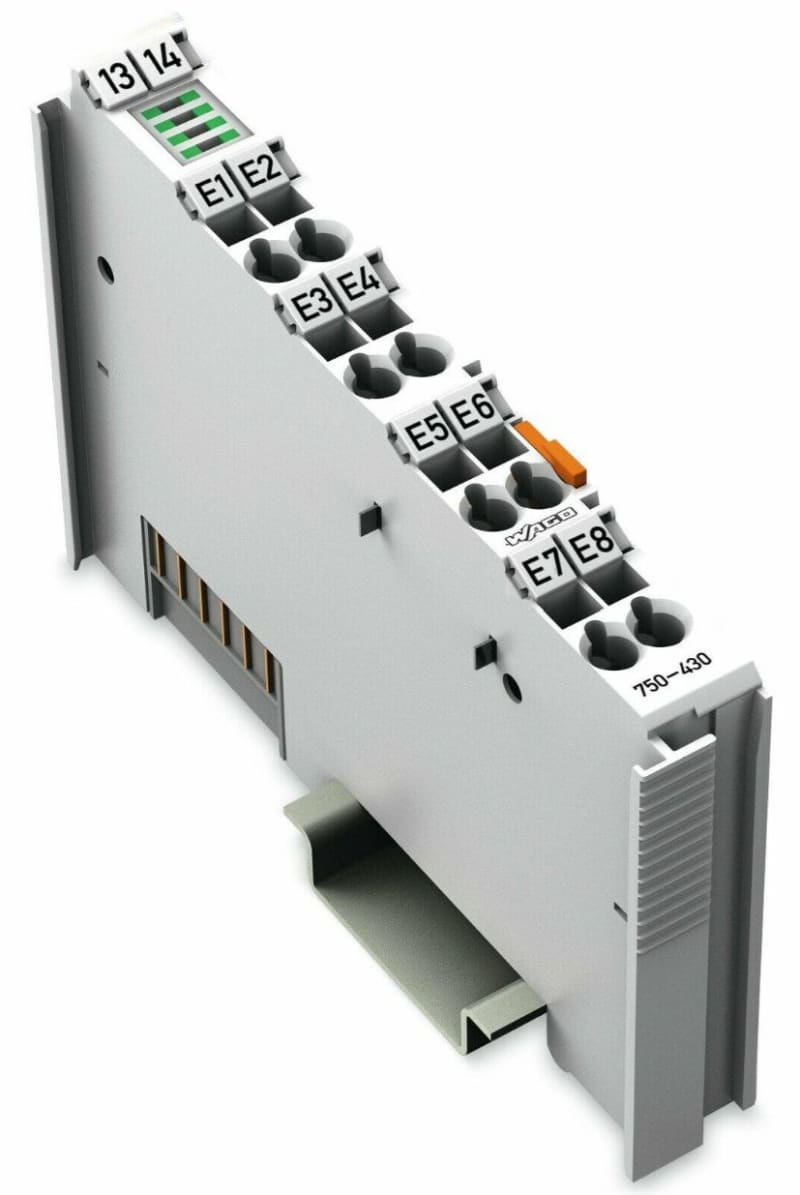

8-Channel digital input; 24 VDC; 3 ms

WAGO 750-430 Manufacturer description: 8-channel digital input; 24 VDC; 3 ms. 8DI 24V DC 3.0MS.

Manufacturer part number (MPN)

750-430

EAN / GTIN

4045454392802

Sales unit

pcs

Number of digital inputs

8

Total number of channels (module)

8

Signal type

Digital

Signal type (voltage)

24 VDC

Sensor connection

8 x (1-wire)

Input characteristic

high-side switching

Input filter

3 ms

Input current per channel for signal (1) typ.

2.8 mA

Voltage range for signal (0)

−3 … +5 VDC

Voltage range for signal (1)

15 … 30 VDC

Input data width (internal) max.

8 Bit

Supply voltage (system)

5 VDC; via data contacts

Current consumption (system supply)

17 mA

Supply voltage (field)

24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact)

Isolation

500 V system/field

Indicators

LED (A-D) green: Status DI 1, DI 3, DI 5

DI 7; LED (E-H) green

Status DI 2, DI 4, DI 6, DI 8

Number of incoming power jumper contacts

2

Number of outgoing power jumper contacts

2

Current carrying capacity (power jumper contacts)

10 A

Connection technology

I/O: 8 x CAGE CLAMP® (inputs)

Connectable conductor materials

Copper

Connection type

Input

Solid conductor

0.08 … 2.5 mm² / 28 … 14 AWG

Fine-stranded conductor

0.08 … 2.5 mm² / 28 … 14 AWG

Strip length

8 … 9 mm / 0.31 … 0.35 inches

Width

12 mm / 0.472 inches

Height

100 mm / 3.937 inches

Depth

67.8 mm / 2.669 inches

Depth from upper-edge of DIN-rail

60.6 mm / 2.386 inches

Mounting type

DIN-35 rail

Pluggable connector

fixed

Color

light gray

Housing material

Polycarbonate; polyamide 6.6

Fire load

1.097 MJ

Weight

47 g

Conformity marking

CE

Ambient temperature (operation)

0 … +55 °C

Ambient temperature (storage)

-40 … +85 °C

Protection type

IP20

Pollution degree

2 per IEC 61131-2

Operating altitude

0 … 2000 m / 0 … 6562 ft

Mounting position

Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom

Relative humidity (without condensation)

95 %

Vibration resistance

4g per IEC 60068-2-6

Shock resistance

15g per IEC 60068-2-27

EMC immunity to interference

per EN 61000-6-2, marine applications

EMC emission of interference

per EN 61000-6-4, marine applications

Exposure to pollutants

per IEC 60068-2-42 and IEC 60068-2-43

Permissible H2S contaminant concentration at a relative humidity 75 %

10 ppm

Permissible SO2 contaminant concentration at a relative humidity 75 %

25 ppm

Product Group

15 (I/O System)

PU (SPU)

1 pcs

Packaging type

Box

Country of origin

DE

Customs tariff number

85176200000

UNSPSC

32,151,705

eCl@ss 10.0

27-24-26-04

eCl@ss 9.0

27-24-26-04

ETIM 9.0

EC001599

ETIM 10.0

EC001599

ECCN

NO US CLASSIFICATION

CAS-No.

1303-86-2 | 1317-36-8 | 7439-92-1

REACH Candidate Strip Substance

Diboron trioxide | Lead | Lead monoxide

RoHS Compliance Status

Compliant,With Exemption

RoHS Exemption

6(c) | 7(a) | 7(c)-I | 7(c)-II

SCIP notification number (Austria)

00d5cb10-9577-49ff-9f8c-4737e239998b

SCIP notification number (Belgium)

00c774e8-6079-49e1-aade-246673171b4f

SCIP notification number (Bulgaria)

79a6e9de-ef3a-472b-9185-74221c6a00f6

SCIP notification number (Czech Republic)

640a6064-7f7e-4223-903a-d2783a1df3f5

SCIP notification number (Denmark)

e82562a7-6aab-4e96-96b2-57918bb6ff18

SCIP notification number (Finland)

7c9760d0-5d72-4c7d-b58e-f5c123ae6a63

SCIP notification number (France)

3d5594d8-7027-40a7-9627-3b7612be3b86

SCIP notification number (Germany)

7d985e60-c571-4c7b-ba0f-c7e9d97c86c5

SCIP notification number (Hungary)

ac027e0e-3493-4a05-8337-2b44a60acf93

SCIP notification number (Italy)

64e6a585-7b76-4924-a05c-aef46547e320

SCIP notification number (Netherlands)

a28ffd06-b67b-4ae9-a7f2-2bc8a81daa8e

SCIP notification number (Poland)

d4241cd3-4511-4f20-9c87-e399f47b0f4d

SCIP notification number (Romania)

42c979a3-cc4a-494a-8732-d697be83ad36

SCIP notification number (Sweden)

58683497-9961-47e3-8bdd-95e2e0fb6ada

Certified for UL hazardous location division 1

Yes

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

Yes

Certified for UL hazardous location group B (hydrogen)

Yes

Certified for UL hazardous location group C (ethylene)

Yes

Certified for UL hazardous location group D (propane)

Yes

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

Yes

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Supply voltage DC

24 V

Voltage type (supply voltage)

DC

Digital inputs configurable

No

Digital outputs configurable

No

Input current at signal 1

2.8 mA

Permitted voltage at input

-3–30 V

Type of voltage (input voltage)

DC

Type of digital output

None

Short-circuit protection, outputs available

No

With optical interface

No

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No

HS Code

8538.90
