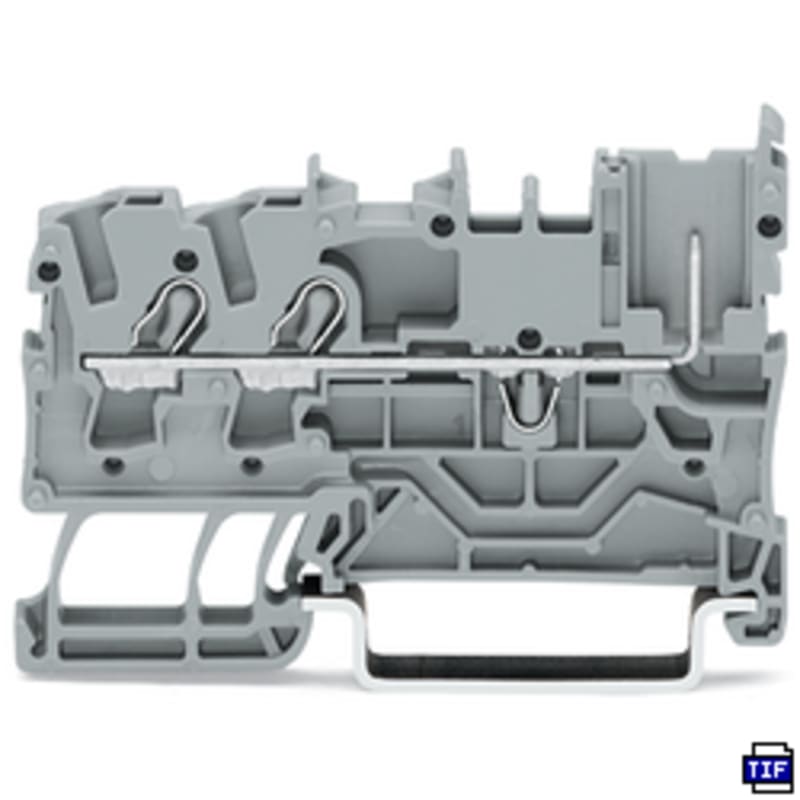

WAGO 2022-1301 2-Conductor Carrier Terminal Block 2.5 mm² Push-in
Pricing
Request a quote
We reply within 24 hours
Product Description
Two-conductor, one-pin carrier terminal block for 35 x 15 or 35 x 7.5 mm DIN rail, 2.5 mm² rated cross-section with Push-in CAGE CLAMP spring connection. Rated 24 A at 690 V for signal and low-power distribution in control panels; solid or stranded conductors from 0.25 to 4 mm² accepted without ferrule. Grey polyamide PA66 housing, UL94 V0 flammability, 5.2 mm grid width for high-density arrays.
Technical Specifications
- Manufacturer part number (MPN)
- 2022-1301
- EAN / GTIN
- 4050821145127
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Clamping units
- 2
- Female plug slots
- 1
- Total number of potentials
- 1
- Number of levels
- 1
- Width
- 5.2 mm / 0.205 inches
- Height
- 59.2 mm / 2.331 inches
- Depth from upper-edge of DIN-rail
- 36.4 mm / 1.433 inches
- Mounting type
- DIN-35 rail
- Marking level
- Center/side marking
- Color
- gray
- Material group
- I
- Insulation material (main housing)
- Polyamide (PA66)
- Flammability class per UL94
- V0
- Fire load
- 0.123 MJ
- Weight
- 6.3 g
- Processing temperature
- -35 … +85 °C
- Continuous operating temperature
- -60 … +105 °C
- Product Group
- 18 (X-COM-System)
- PU (SPU)
- 100 pcs
- Packaging type
- Box
- Country of origin
- CN
- Customs tariff number
- 85366990990
- UNSPSC
- 39,121,410
- eCl@ss 10.0
- 27-14-11-41
- eCl@ss 9.0
- 27-14-11-20
- ETIM 9.0
- EC000897
- ETIM 10.0
- EC000897
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- Conductor cross-section
- 2.5 mm²
- MPN
- 2022-1301
- Suitable for conductor material
- Copper
- Connectable conductor cross section solid-core
- 0.25–4 mm²
- Connectable conductor cross section multi-wired
- 0.25–4 mm²
- Rated current In
- 24 A
- Rated voltage
- 690 V
- Type of electrical connection 1
- Spring clamp connection
- Type of electrical connection 2
- Plug-in connection
- Connection position
- Atop
- Number of clamp positions per level
- 3
- Mounting method
- DIN rail (top hat rail) 35 mm
- Material insulation body
- Thermoplastic
- Operating temperature
- -60–105 °C
- Width/grid dimension
- 5.2 mm
- Depth
- 36.4 mm
- Length
- 59.2 mm
- Explosion-tested version 'Ex e'
- No
- Closing plate required
- Yes
- Colour
- Grey
- Internally connected stages
- No
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 4050821145127
- SAP 1200571623
- Code 82932901
