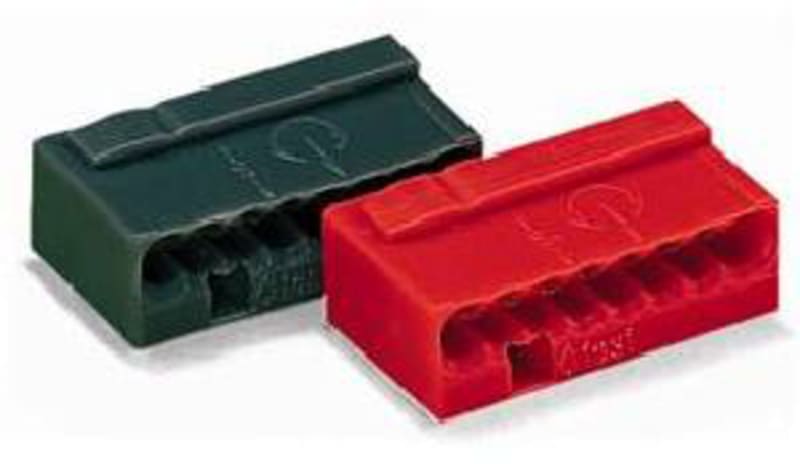

MICRO PUSH WIRE® connector for junction boxes, for solid conductors, max. 0.8 mm Ø, 8-Conductor
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 243-808 Manufacturer description: MICRO PUSH WIRE® connector for junction boxes; for solid conductors; max. 0.8 mm Ø; 8-conductor; light gray cover; Surrounding air temperature: max 60°C; red.
Technical Specifications
- Manufacturer part number (MPN)
- 243-808
- EAN / GTIN
- 4017332546515
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Clamping units
- 8
- Total number of potentials
- 1
- Number of connection types
- 1
- Number of levels
- 1
- Width
- 18.4 mm / 0.724 inches
- Height
- 6.8 mm / 0.268 inches
- Depth
- 10 mm / 0.394 inches
- Color
- red
- Cover color
- light gray
- Fire load
- 0.019 MJ
- Weight
- 1.4 g
- Ambient temperature (operation)
- +60 °C
- Continuous operating temperature
- 105 °C
- PU (SPU)
- 500 (50) pcs
- Packaging type
- box
- Country of origin
- DE
- Customs tariff number
- 85369010000
- UNSPSC
- 39,121,409
- eCl@ss 10.0
- 27-14-11-04
- eCl@ss 9.0
- 27-14-11-04
- ETIM 9.0
- EC000446
- ETIM 10.0
- EC000446
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- EAN
- 4044918502795
- MPN
- 243-808
- Nominal current
- 6 A
- Nominal voltage
- 100 V
- Colour
- Red
- Number of clamp positions
- 8
- Cable diameter
- 0.6–0.8 mm
- Suitable for solid conductors
- Yes
- AWG-range
- 20–22
- Suitable for multi-wire conductors
- No
- Suitable for flexible conductors
- No
- Transparent
- No
- With operation lever
- No
- Type of locking/unlocking
- None
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4017332546515
- SAP 1000195315
- Code 8883697
