WAGO

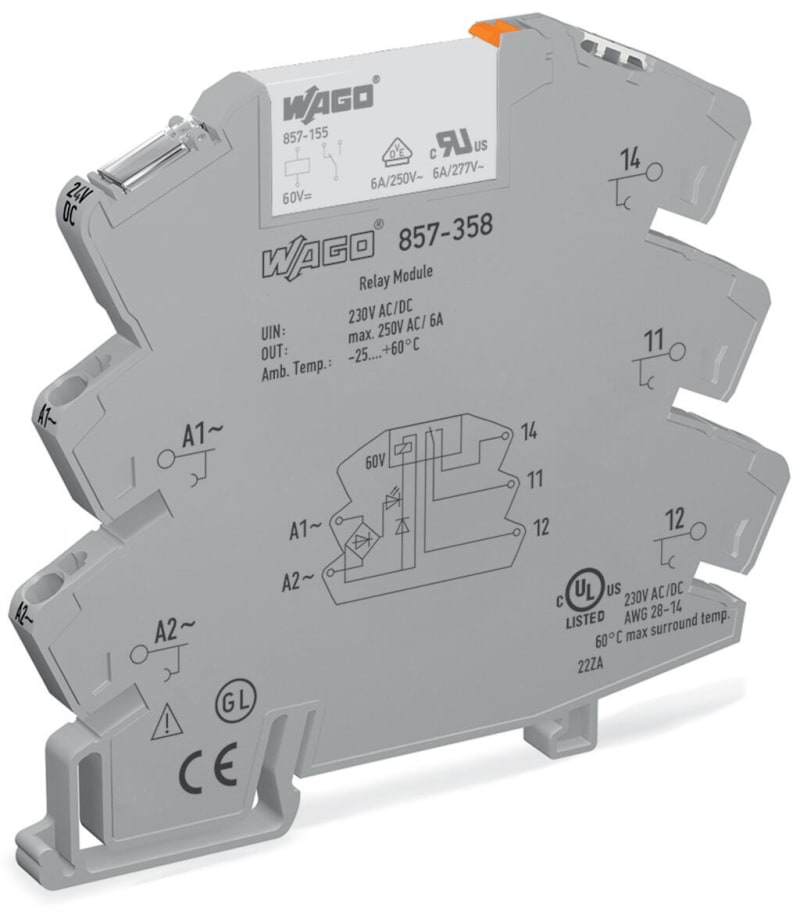

Relay module, Nominal input voltage: 230 V AC/DC, 1 changeover contact, Module width: 6 mm
Part number857-358EAN / GTIN4045454471576HS code8536.49
Control & Automation
Relays & Timers
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 857-358 Manufacturer description: Relay module; Nominal input voltage: 230 V AC/DC; 1 changeover contact; Limiting continuous current: 6 A; Yellow status indicator; Module width: 6 mm; gray. Relay Module;Nominal input voltage: 230 V AC/DC;1 skiftekontakt;grey.
Technical Specifications
- Manufacturer part number (MPN)
- 857-358
- EAN / GTIN
- 4045454471576
- Sales unit
- pcs
- Note
- To protect the relay coils and contacts, inductive loads must be dampened with an effective protection circuit.
- Rated Voltage
- 300 V
- Rated impulse withstand voltage
- 4 kV
- Type of circuits
- Mains circuits
- Overvoltage category
- III
- Pollution degree
- 2
- Dielectric strength (control/load circuit) (AC, 1 min)
- 3.51 kVrms
- Dielectric strength (open contact) (AC, 1 min)
- 1 kVrms
- Insulation type (control/load circuit)
- Reinforced insulation (safe isolation)
- Insulation type (between adjacent devices of the same type)
- Double insulation (safe isolation)
- Insulation type (to adjacent devices of different types)
- Basic insulation
- Protection type
- IP20
- Connection technology
- Push-in CAGE CLAMP®
- Solid conductor
- 0.34 … 2.5 mm² / 22 … 14 AWG
- Fine-stranded conductor
- 0.34 … 2.5 mm² / 22 … 14 AWG
- Fine-stranded conductor; with insulated ferrule
- 0.34 … 1.5 mm² / 22 … 16 AWG
- Strip length
- 9 … 10 mm / 0.35 … 0.39 inches
- Width
- 6 mm / 0.236 inches
- Height
- 94 mm / 3.701 inches
- Depth from upper-edge of DIN-rail
- 81 mm / 3.189 inches
- Mounting type
- DIN-35 rail
- Mounting position
- Horizontal (standing/lying); vertical
- Color
- gray
- Insulation material (main housing)
- Polyamide (PA66)
- Material group
- I
- Flammability class per UL94
- V0
- Fire load
- 0.437 MJ
- Weight
- 32 g
- Ambient temperature (operation at UN)
- -40 … +60 °C
- Ambient temperature (storage)
- -40 … +70 °C
- Processing temperature
- -25 … +50 °C
- Temperature range of connection cable
- ≥ (Tambient + 30 K)
- Relative humidity
- 5 … 85 % (no condensation permissible)
- Operating altitude (max.)
- 2000 m
- Standards/specifications
- EN 61010-2-201 | EN 61810-1 | EN 61373 | UL 508 | ATEX | IECEx | DNV
- WAGO Basic Relay
- 857-155
- Product Group
- 6 (INTERFACE ELECTRONIC)
- PU (SPU)
- 25 (1) pcs
- Packaging type
- box
- Country of origin
- CN
- Customs tariff number
- 85364900990
- UNSPSC
- 39,122,334
- eCl@ss 10.0
- 27-37-16-01
- eCl@ss 9.0
- 27-37-16-01
- ETIM 9.0
- EC001437
- ETIM 10.0
- EC001437
- ECCN
- NO US CLASSIFICATION
- CAS-No.
- 7439-92-1 | 79-94-7
- REACH Candidate Strip Substance
- 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | Lead
- RoHS Compliance Status
- Compliant,With Exemption
- RoHS Exemption
- 7(c)-I
- SCIP notification number (Austria)
- f818d2f9-e068-4960-84e7-051e0bc6770a
- SCIP notification number (Belgium)
- bfbc772b-b4b8-45f5-9d58-8f4ae3f16f3a
- SCIP notification number (Bulgaria)
- 5ba8d05c-eb61-45b3-9c92-3968d6dfc9e9
- SCIP notification number (Czech Republic)
- c7d5a1dd-d979-41b8-a037-6f5ec8c511d1
- SCIP notification number (Denmark)
- b86b3760-7c7c-496f-a91d-2f023fa7a59d
- SCIP notification number (Finland)
- bc4cda41-2ca1-4ab7-a0bb-8bc24dd0bd1e
- SCIP notification number (France)
- 3aa32fc7-30e1-4f51-8dbd-d0e5b3186ba0
- SCIP notification number (Germany)
- 2b324c73-0a67-496a-9f31-4c22143dfc05
- SCIP notification number (Hungary)
- bf421f8d-7984-4114-89f9-2ff6a07a020a
- SCIP notification number (Italy)
- fdd16442-0599-4aba-b9dc-a005abee02b5
- SCIP notification number (Netherlands)
- fa727e75-07da-4fd6-8fec-5f0f3bcf90d9
- SCIP notification number (Poland)
- 33a73284-a6c6-4271-ad16-753ce839b287
- SCIP notification number (Romania)
- e574fe86-0b41-4888-b3ea-6e8428ea33df
- SCIP notification number (Sweden)
- 18b1e73a-d9eb-4bc8-9c02-7ae8fc0831ce
- MPN
- 857-358
- Type of electric connection
- Spring clamp connection
- With detachable clamps
- No
- Nominal current
- 6 A
- Rated control supply voltage AC 50 Hz
- 230 V
- Rated control supply voltage AC 60 Hz
- 230 V
- Rated control supply voltage DC
- 230 V
- Voltage type for actuating
- AC/DC
- Drive, polarization
- Polarity free
- Drive, switching attitude
- Mono stable
- Number of contacts as change-over contact
- 1
- With forced-guided contacts
- No
- Type of switch contact
- Single contact
- Complete with socket
- Yes
- With LED indication
- Yes
- Material of contact surface
- Tin
- Material contact
- Other not-copper alloys
- Degree of protection (IP)
- IP20
- Depth
- 81 mm
Standards & Compliance
- HS Code
- 8536.49
Cross References
- EAN 4045454471576
- SAP 1000267312
- Code 8258032
Product Documentation
Document preview: Relay module, Nominal input voltage: 230 V AC/DC, 1 changeover contact, Module width: 6 mm (857-358) — Specification sheet
