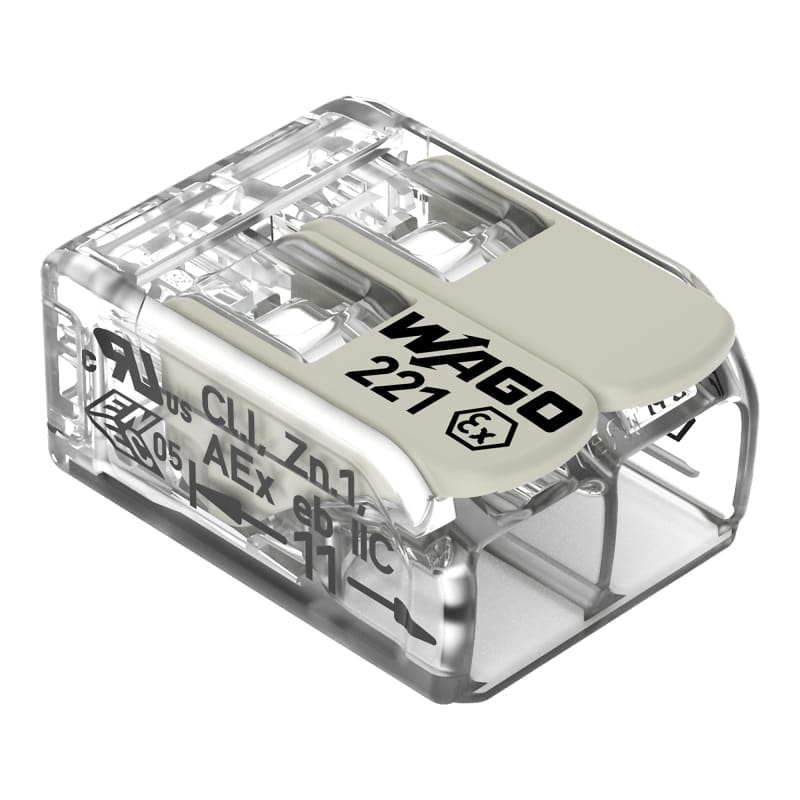

Splicing connector with levers, for all conductor types, max. 4 mm², 2-Conductor (221-482)
Pricing
Request a quote
We reply within 24 hours
Product Description
WAGO 221-482 Manufacturer description: Splicing connector with levers; for all conductor types; for Ex e applications; max. 4 mm²; 2-conductor; transparent housing; Operating temperature (max.): 105 °C; 4,00 mm²; transparent. WAGO 221 4mm2 EX.
Technical Specifications
- Manufacturer part number (MPN)
- 221-482
- EAN / GTIN
- 4055143837422
- Sales unit
- pcs
- Package quantity
- 1000 pcs
- Clamping units
- 2
- Total number of potentials
- 1
- Width
- 13.2 mm / 0.52 inches
- Height
- 8.4 mm / 0.327 inches
- Depth
- 18.6 mm / 0.732 inches
- Color
- transparent
- Material group
- IIIa
- Insulation material (main housing)
- Polycarbonate (PC)
- Flammability class per UL94
- V2
- Fire load
- 0.03 MJ
- Actuator color
- light gray
- Weight
- 1.7 g
- Ambient temperature (storage)
- -40 … +60 °C
- Continuous operating temperature
- -55 … +105 °C
- PU (SPU)
- 1000 (100) pcs
- Packaging type
- box
- Country of origin
- DE
- Customs tariff number
- 85369010000
- UNSPSC
- 39,121,409
- eCl@ss 10.0
- 27-14-11-04
- eCl@ss 9.0
- 27-14-11-04
- ETIM 9.0
- EC000446
- ETIM 10.0
- EC000446
- ECCN
- NO US CLASSIFICATION
- RoHS Compliance Status
- Compliant,No Exemption
- Conductor cross-section
- 4 mm²
- Nominal current
- 24.5 A
- Nominal voltage
- 440 V
- Colour
- Colourless
- Number of clamp positions
- 2
- Suitable for solid conductors
- Yes
- Conductor cross section solid (solid, stranded)
- 0.2–4 mm²
- AWG-range
- 12–24
- Nominal cross section
- 0.2–4 mm²
- Suitable for multi-wire conductors
- Yes
- Suitable for flexible conductors
- Yes
- Transparent
- Yes
- With operation lever
- Yes
- Min. AWG-size
- 24
- Max. AWG-size
- 12
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4055143837422
- SAP 1200297964
- Code 82269877
Product Documentation
More from WAGO
WAGO
Splicing connector with levers, for all conductor types, max. 4 mm², 3-Conductor (221-483)
WAGO
Evoline Express socket Black
8006-099/K000-0011
WAGO

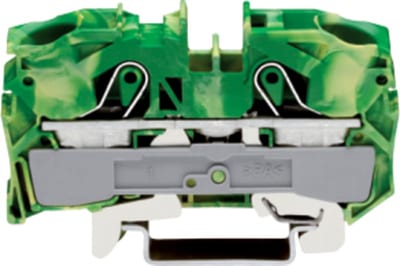

2-Conductor ground terminal block, 16 mm², for DIN-rail 35 x 15 and 35 x 7.5 (2016-1207)
WAGO

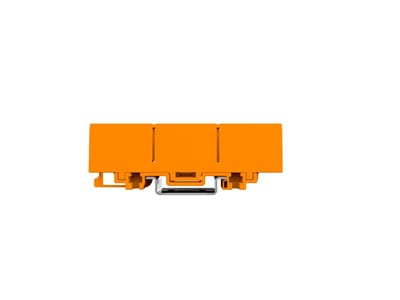

Mounting carrier, 2773 Series, for DIN-35 rail mounting/screw mounting
2773-500
WAGO

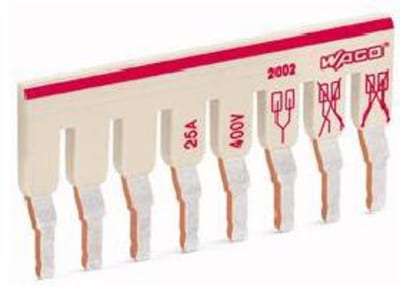

Staggered jumper; 12-Way; insulated; light gray
2002-482
WAGO

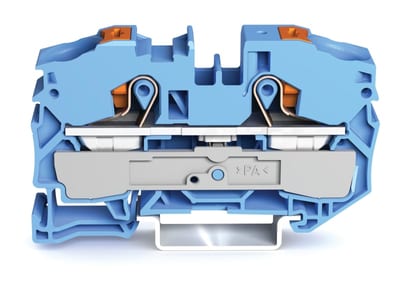

2-Conductor through terminal block, 16 mm², for DIN-rail 35 x 15 and 35 x 7.5 (2216-1204)
WAGO

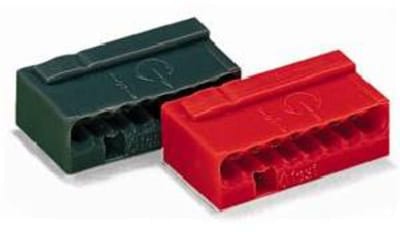

MICRO PUSH WIRE® connector for junction boxes, for solid conductors, max. 0.8 mm Ø, 8-Conductor
243-808
WAGO

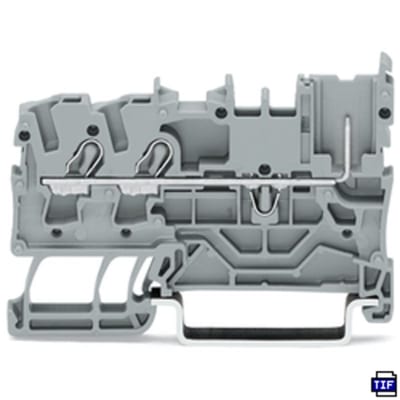

WAGO 2022-1301 2-Conductor Carrier Terminal Block 2.5 mm² Push-in
