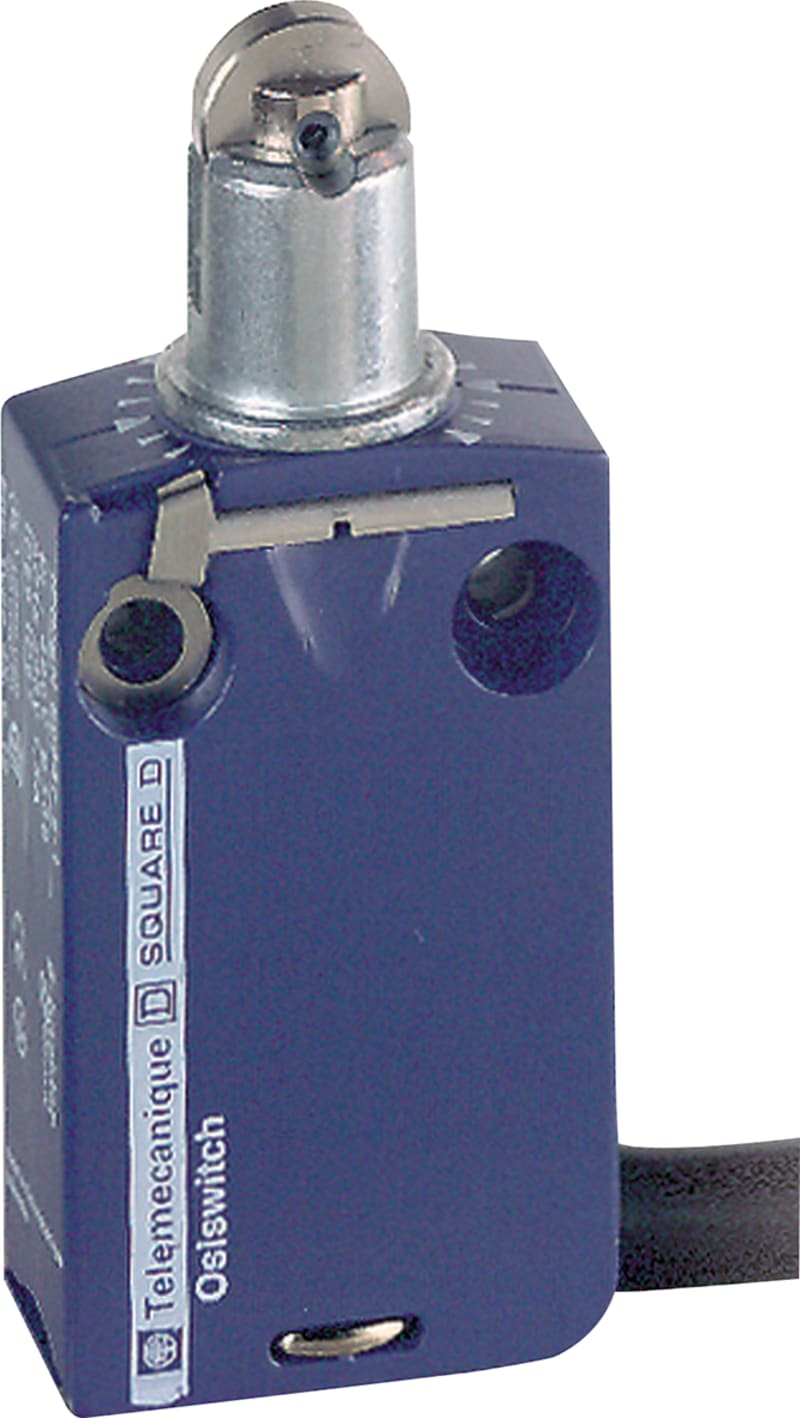

Telemecanique XCMD2125L2 Limit Switch, Metal Roller Plunger, 1 NO + 1 NC
Pricing
Request a quote
We reply within 24 hours
Product Description
Telemecanique XCMD2125L2 limit switch (position switch), metal roller plunger actuator, 1 NO + 1 NC contacts.
Technical Specifications
- Manufacturer part number (MPN)
- XCMD2125L2
- EAN / GTIN
- 3666916093016
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 65 pcs
- Switching function
- Quick-break switch
- Rated operation current Ie at AC-15, 230 V
- 1.5 A
- Rated operation current Ie at DC-13, 230 V
- 0.1 A
- Housing material
- Metal
- Suitable for safety functions
- No
- With status indication
- No
- Type of interface for safety communication
- None
- Type of electric connection
- With cable preassembled
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
- Construction type housing
- Cuboid
- Degree of protection (IP)
- IP67K
- Forced opening
- Yes
- Type of control element
- Roller lever
- Type of interface
- None
- Output electronic
- No
- Width sensor
- 30 mm
- Height of sensor
- 50 mm
- Length of sensor
- 16 mm
- Switching function latching
- No
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 1
- Country of origin
- Indonesia
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3666916093016
- SAP 1000341538
- Code 81106367
Product Documentation
More from Telemecanique
Telemecanique
Telemecanique XUK8TAE2MM12 Photoelectric Distance Sensor, 0–1.5 m, 4–20 mA, M12 Connector
Telemecanique
Telemecanique XCKMR54D2 Limit Switch, Metal Cross Lever, Metal Body, PG cable entry
Telemecanique
Telemecanique ZCMC21L2 Contact Body for XCM Limit Switches, 1 NO + 1 NC, snap action, 2 m cable
Telemecanique
Telemecanique ZB6YA001 Mounting Body for Recessed ZB6 Contact Blocks
Telemecanique
Telemecanique XSAV1562515 Rotation Monitor (Under-Speed Detector) M30, 120–3000 rpm
Telemecanique
Telemecanique Modular 3-Phase voltage control relay, 5 A, 2 CO, 220…480 V AC RM35UB330
Telemecanique
Telemecanique motor voltage and temperature control relay - RM35-T - 24..240 V AC/DC - 2 NO RM35TM250MW
Telemecanique
Telemecanique XZCC43FCP40B Field-Wireable Connector, Female, Angled, Metal
Technical guides
- Limit Switch and Position Switch Finder — by Actuator (Roller Plunger, Roller Lever, Rod Lever, Plunger, Spring Rod) and Contacts — Telemecanique XCK, Siemens 3SE5, Eaton LS, R. Stahl Ex
- Emergency Stop Rope Pull Switches — Covering Conveyors to EN ISO 13850 with XY2C
- Inductive Proximity Sensors — Diameter, Sensing Distance, Flush Mounting, PNP/NPN and NO/NC Explained
Catalogue entry last verified: 2026-10-03. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy XCMD2125L2?
- XCMD2125L2 can be ordered from cballast.com as a Telemecanique catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Telemecanique product?
- The manufacturer part number is XCMD2125L2.
- What is the HS code for XCMD2125L2?
- The customs tariff (HS) code for XCMD2125L2 is 8536.90.
- Who manufactures XCMD2125L2?
- XCMD2125L2 is a Telemecanique product in the Sensors & Instrumentation range.
- Is a datasheet available for XCMD2125L2?
- Yes — the XCMD2125L2 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for XCMD2125L2?
- The minimum order quantity is 1.
- Is XCMD2125L2 available?
- Yes — XCMD2125L2 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
