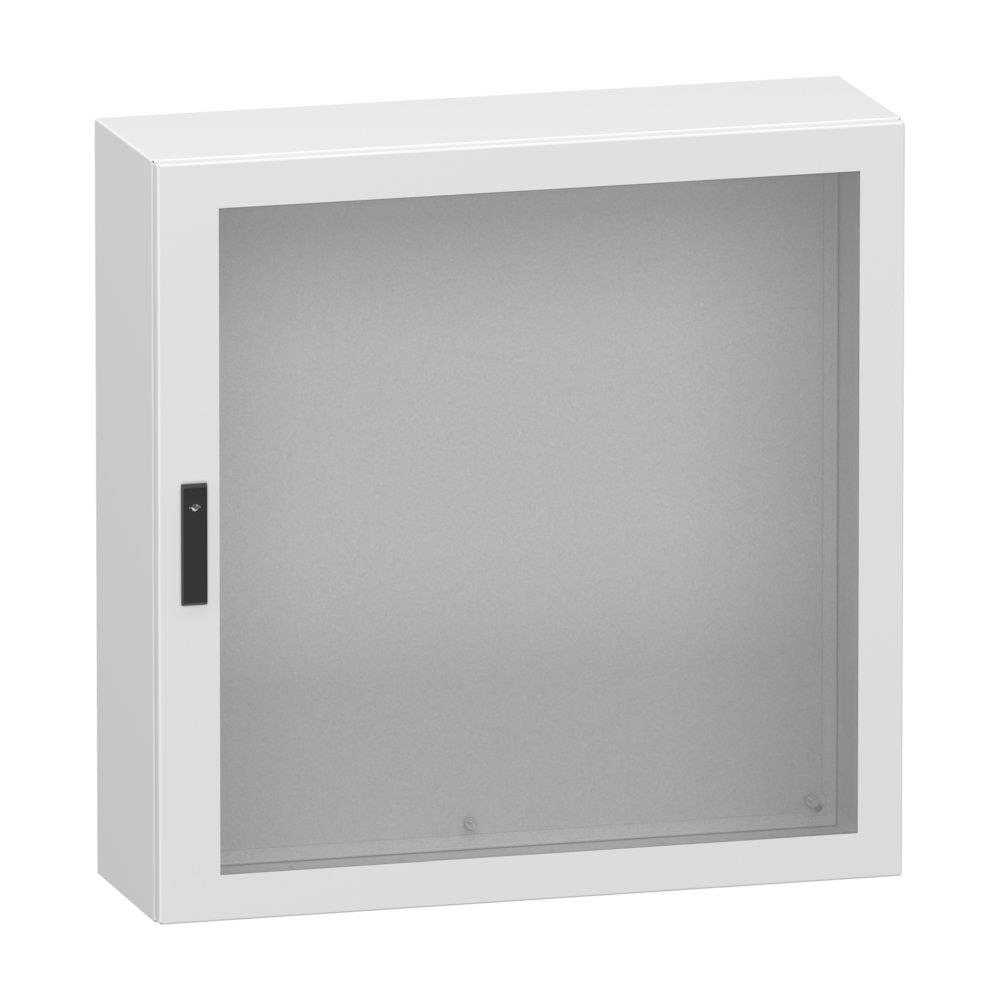

Schneider Spacial CRN Wall cabinet - 1000 x 1000mm, 300mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Spacial CRN Wall cabinet. Wall cabinets (Electrical Engineering / Tables, cabinets, and boxes / Wall and floor cabinets). Principal data: size 1000 x 1000 mm, depth 300 mm. Supplied under manufacturer part number NSYCRN1010300T, EAN 3606485891484, HS code 9403.20, country of origin Spain.
Technical Specifications
- Product type
- Wall cabinets
- Product group
- Tables, cabinets, and boxes
- Size
- 1000 x 1000 mm
- Depth
- 300 mm
- REACH SVHC substance above 0.1%
- Lead
- Carbon footprint (EPD)
- 139.7617 kg CO2e per pcs
- Country of origin
- Spain
- Customs tariff code (EU CN)
- 94032080
- HS code
- 9403.20
- Manufacturer part number
- NSYCRN1010300T
- Range
- PanelSeT
- Product name
- PanelSeT CRN
- Application
- Multi-purpose
- Category
- Compact enclosure
- Enclosure nominal height
- 1000 mm
- Enclosure nominal width
- 1000 mm
- Enclosure nominal depth
- 300 mm
- Installation accessory type
- Wall-mounting
- Device composition
- 1 body; 1 lock; 2 cable gland plate: bottom; 2 door
- Door type
- Glazed
- Mounting plate description
- Without mounting plate
- body type
- Single piece body
- Number of doors
- Front face: 2 door(s)
- Door opening side
- Reversible (120 °)
- Lock type
- 3 points lock, 5 mm double-bar
- Type of gland plate
- Standard
- Accessibility for operation
- Front
- Removable parts
- Door by hinges; Cable gland plate by screws
- Material
- Body: steel; Door: steel and security glass
- Surface finish
- Epoxy-polyester powder
- Colour
- Grey (RAL 7035)
- Standards
- IEC 62208; UL; CUL
- Product certifications
- cUL; UL
- Product weight
- 47 kg
- IP degree of protection
- IP55 conforming to IEC 60529
- IK degree of protection
- IK08 conforming to IEC 62262
- Warranty (in months)
- 18
- EAN
- 3606485891484
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606485891484
- MPN NSYCRN1010300T
More from Schneider Electric
Schneider Electric
Schneider ACTI9 IC60N Circuit breaker - ACTI9 IC60, 32A, 2P, B
A9F03232
Schneider Electric
Schneider Modicon TM5 Expansion Module - 30V, 2
TM5SDO4R
Schneider Electric
Schneider ZB5 Lamp Body with LED - Harmony XB5, white, 400 ACV
ZB5AV5D1
Schneider Electric
Schneider Spacial S3D Door - 600 x 500mm, grey, steel
NSYDS3D65
Schneider Electric
Schneider RESI9 XP RCBO Combination Switch - RESI9 XP, 16A, 3P + N, C
R9D55716
Schneider Electric
Schneider ACTI9 IHP Timer - 230V, 18
CCT15838
Schneider Electric
Schneider GVAU Undervoltage release - TeSys D, 48 ACV
GVAU055
Schneider Electric
Schneider ACTI9 iPC Socket - 16A
A9A15306
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NSYCRN1010300T?
- NSYCRN1010300T can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is NSYCRN1010300T.
- What is the HS code for NSYCRN1010300T?
- The customs tariff (HS) code for NSYCRN1010300T is 9403.20.
- Who manufactures NSYCRN1010300T?
- NSYCRN1010300T is a Schneider Electric product in the Enclosures range.
- Is a datasheet available for NSYCRN1010300T?
- Yes — the NSYCRN1010300T datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NSYCRN1010300T?
- The minimum order quantity is 1.
- Is NSYCRN1010300T available?
- Yes — NSYCRN1010300T is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
