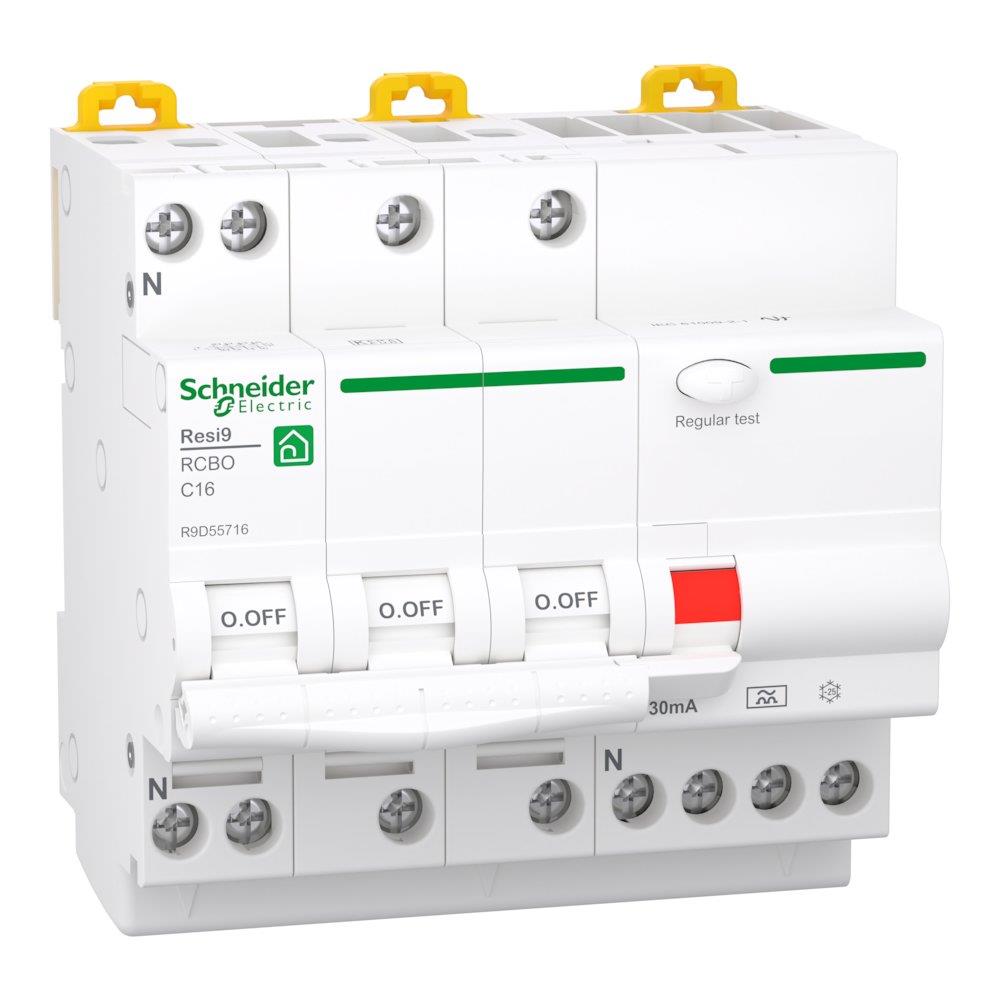

Schneider RESI9 XP RCBO Combination Switch - RESI9 XP, 16A, 3P + N, C

Schneider Resi9 XP RCBO Combination Switch. Circuit breakers (Electrical Engineering / Components for panels and boxes). Principal data: series Resi9 XP, current rating 16 A, number of poles 3P + N, tripping characteristic C. Supplied under manufacturer part number R9D55716, EAN 3606481905246, HS code 8536.20, country of origin Spain.

Product type

Circuit breakers

Product group

Components for panels and boxes

Series

Resi9 XP

Current rating

16 A

Number of poles

3P + N

Tripping characteristic

C

Breaking capacity

30 kA

Width

90 mm

REACH SVHC substance above 0.1%

Lead, Diboron-trioxide, Lead-monoxide

Carbon footprint (EPD)

3.1651 kg CO2e per pcs

Country of origin

Spain

Customs tariff code (EU CN)

85362010

HS code

8536.20

Manufacturer part number

R9D55716

Range

Resi9

Product name

Resi9 RCBO

Product or component type

Residual current breaker with overcurrent protection (RCBO)

Poles description

3P + N

Neutral position

Left

Number of protected poles

3

[In] rated current

16 A

Network type

AC

Trip unit technology

Thermal-magnetic

Curve code

C

Earth-leakage sensitivity

30 mA

Earth-leakage protection time delay

Instantaneous

Earth-leakage protection class

Type A

Quality labels

KEMA

Device location in system

Outgoer

Network frequency

50 Hz

[Ue] rated operational voltage

400 V AC 50 Hz

Magnetic tripping limit

5...10 x In

Residual current tripping technology

Voltage independent

[Ui] rated insulation voltage

400 V

[Uimp] rated impulse withstand voltage

4 kV

Surge current

250 A

Contact position indicator

Yes

Control type

Toggle

Local signalling

ON/OFF indication

mounting mode

Clip-on

Mounting support

DIN rail

Connection pitch

9 mm between phase and neutral; 18 mm between phases

9 mm pitches

10

Height

91 mm

Depth

72.5 mm

Product weight

500 g

Colour

White

Mechanical durability

20000 cycles

Electrical durability

7500 cycles

Connections - terminals

Tunnel type terminals (top or bottom) - 1...16 mm² - rigid; Tunnel type terminals (top or bottom) - 1...10 mm² - flexible; Tunnel type terminals (top or bottom) - 1...10 mm² - flexible with ferrule

Wire stripping length

13 mm for top or bottom connection

Tightening torque

2 N.m top or bottom

Earth-leakage protection

Integrated

Standards

EN/IEC 61009-2-1; EN/IEC 61009-1

IP degree of protection

IP20

Pollution degree

2

Overvoltage category

III

Ambient air temperature for operation

-25…60 °C

Number of Units in Package 1

1

Number of Units in Package 2

16

Warranty (in months)

18

EAN

3606481905246

HS Code

8536.20

• EAN 3606481905246
• MPN R9D55716
