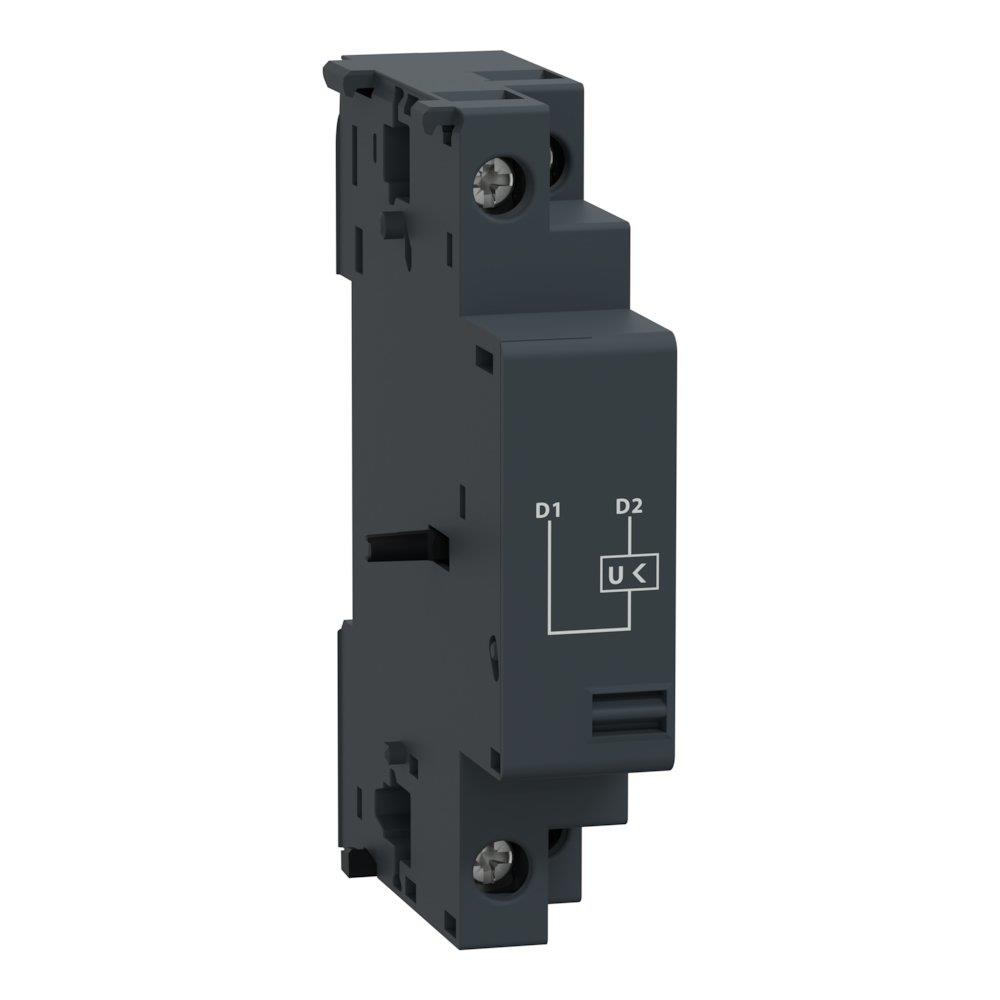

Schneider GVAU Undervoltage release - TeSys D, 48 ACV
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider GVAU Undervoltage release. Motor protection and accessories (Electrical Engineering / Components for panels and boxes). Principal data: series TeSys D, voltage 48 V AC. Supplied under manufacturer part number GVAU055, EAN 3389110345872, HS code 8536.30, country of origin Czechia.
Technical Specifications
- Product type
- Motor protection and accessories
- Product group
- Components for panels and boxes
- Series
- TeSys D
- Voltage
- 48 V AC
- Carbon footprint (EPD)
- 0.8958 kg CO2e per pcs
- Country of origin
- Czechia
- Customs tariff code (EU CN)
- 85363090
- HS code
- 8536.30
- Manufacturer part number
- GVAU055
- Range
- TeSys; TeSys Deca
- Product or component type
- Undervoltage release
- Device short name
- GVAU
- [Uc] control circuit voltage
- 48 V AC 50 Hz
- Range compatibility
- TeSys GV2ME; TeSys GV2LE; TeSys GV2L; TeSys GV2P; TeSys GV3L; TeSys GV3P; TeSys Deca
- Control circuit voltage limits
- 0.85...1.1 Un
- [Ui] rated insulation voltage
- 690 V AC conforming to IEC 60947-1; 600 V AC conforming to UL 60947-4-1; 600 V AC conforming to CSA C22.2 No 60947-4-1
- Threshold tripping voltage
- 0.7...0.35 Un
- Inrush power in VA
- 12 VA AC
- Inrush power in W
- 8 W
- Hold-in power consumption in VA
- 3.5 VA AC
- Hold-in power consumption in W
- 1.1 W
- Operating time
- 10...15 ms conforming to IEC 60947-1
- On-load factor
- 100 %
- Connections - terminals
- Screw clamp terminals 1 cable(s) 1…2.5 mm²solid; Screw clamp terminals 2 cable(s) 1…2.5 mm²solid; Screw clamp terminals 1 cable(s) 0.75…2.5 mm²flexible without cable end; Screw clamp terminals 2 cable(s) 0.75…2.5 mm²flexible without cable end; Screw clamp terminals 1 cable(s) 0.75…1.5 mm²flexible with cable end; Screw clamp terminals 2 cable(s) 0.75…1.5 mm²flexible with cable end
- Tightening torque
- < 1.4 N.m on screw clamp terminals
- Mechanical durability
- 10000 cycles with GV3P and GV3L; 30000 cycles with GV2ME and GV2P
- Quantity per set
- Set of 10
- Height
- 89 mm
- Width
- 18 mm
- Depth
- 66 mm
- Product weight
- 0.105 kg
- Colour
- Dark grey
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 48
- Number of Units in Package 3
- 768
- Warranty (in months)
- 18
- EAN
- 3389110345872
Standards & Compliance
- HS Code
- 8536.30
Cross References
- EAN 3389110345872
- MPN GVAU055
