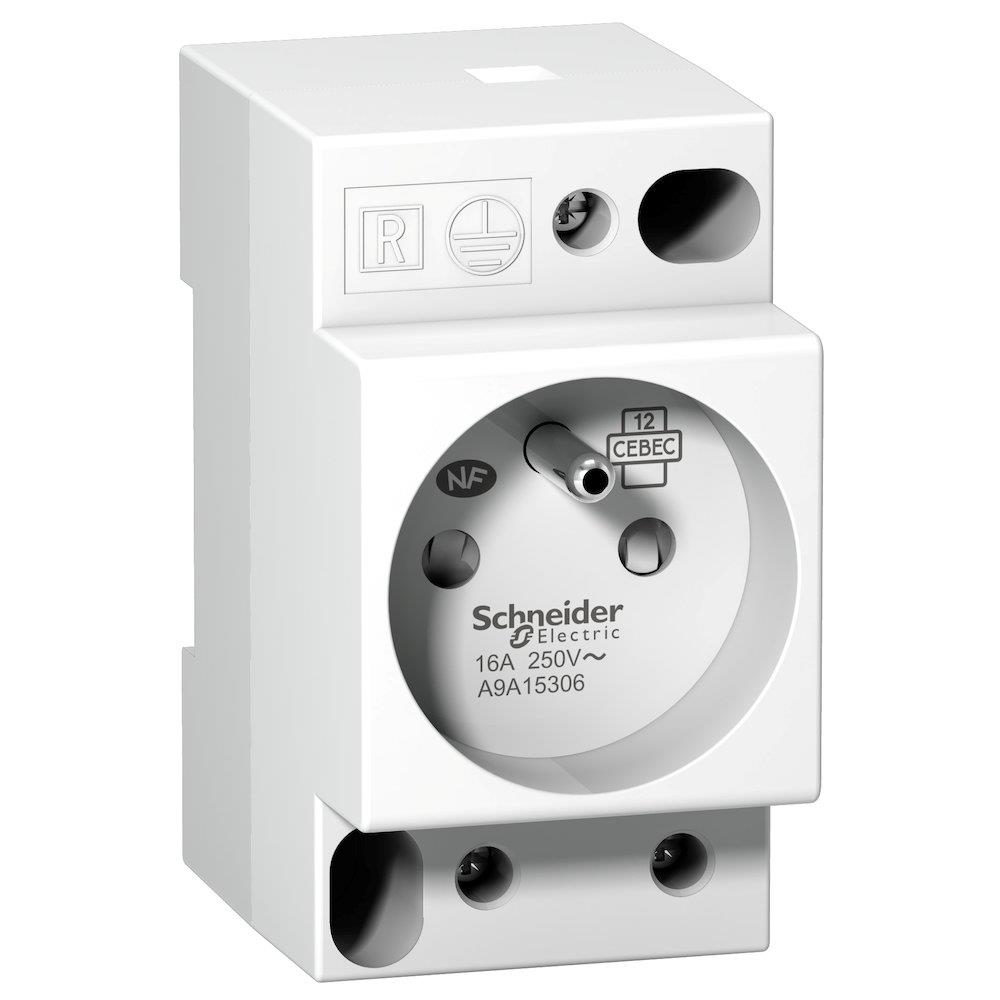

Schneider ACTI9 iPC Socket - 16A

Schneider Acti9 iPC Socket. Accessories for electrical cabinets and boxes (Electrical Engineering / Tables, cabinets, and boxes). Principal data: ampere 16 A. Supplied under manufacturer part number A9A15306, EAN 3606480097768, HS code 8536.69, country of origin Belgium.

Product type

Accessories for electrical cabinets and boxes

Product group

Tables, cabinets, and boxes

Ampere

16 A

Carbon footprint (EPD)

0.6580 kg CO2e per pcs

Country of origin

Belgium

Customs tariff code (EU CN)

85366990

HS code

8536.69

Manufacturer part number

A9A15306

range of product

Acti9

Product name

Acti9 iPC

Product or component type

Modular socket-outlet

Device short name

iPC

Poles description

2P + E

Outlet standard

French

[In] rated current

16 A

[Ue] rated operational voltage

250 V AC 50/60 Hz

mounting mode

Fixed

Mounting support

Symmetrical DIN rail

9 mm pitches

5

Height

84 mm

Width

45 mm

Depth

60 mm

Product weight

98 g

Colour

White

Connections - terminals

Tunnel type terminal1 cable(s) 6 mm² flexible; Tunnel type terminal1 cable(s) 10 mm² rigid

Wire stripping length

13 mm

Tightening torque

1.2 N.m

Standards

IEC 60884-1; NF C 15-100; NF C 61-314

IP degree of protection

IP20 conforming to IEC 60529; IP40 (modular enclosure) conforming to IEC 60529

IK degree of protection

IK03

Tropicalisation

2 conforming to IEC 60068-1

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…80 °C

Number of Units in Package 1

1

Number of Units in Package 2

5

Number of Units in Package 3

75

Warranty (in months)

18

EAN

3606480097768

HS Code

8536.69

• EAN 3606480097768
• MPN A9A15306
