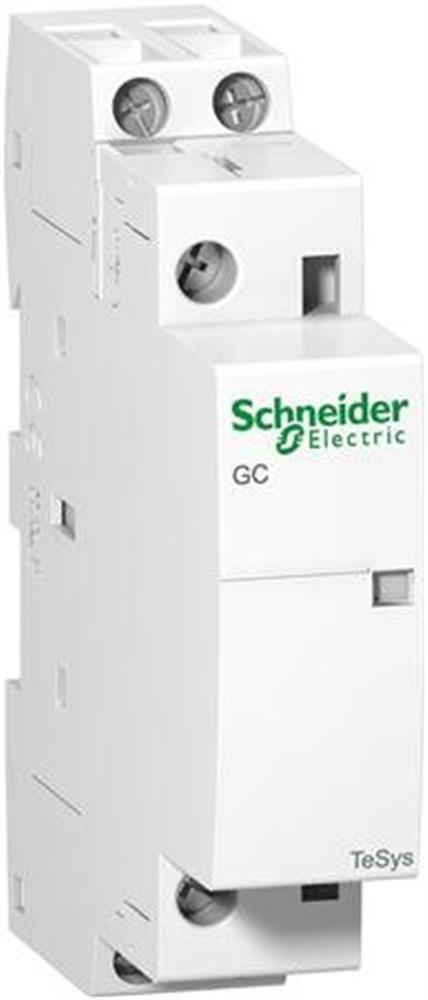

Schneider GC2 Modular contactor - 25A, 2P, 2NO, 24V, 17.5

Schneider GC2 Modular contactor. Modular contactor (Electrical Engineering / Components for panels and boxes). Principal data: current 25 A, number of poles 2P, contact type 2NO, voltage 24 V. Supplied under manufacturer part number GC2520B5, EAN 3389110641424, HS code 8536.41, country of origin France.

Product type

Modular contactor

Product group

Components for panels and boxes

Current

25 A

Number of poles

2P

Contact type

2NO

Voltage

24 V

Module size

17.5

REACH SVHC substance above 0.1%

Lead, Triphenyl phosphate

Carbon footprint (EPD)

0.5180 kg CO2e per pcs

Country of origin

France

Customs tariff code (EU CN)

85364190

HS code

8536.41

Manufacturer part number

GC2520B5

Range

TeSys

Product name

TeSys GC

Product or component type

Modular contactor

Device short name

GC25

Contactor application

Motor control; Heating; Lighting

Utilisation category

AC-7B; AC-7A

Poles description

2P

power pole contact composition

2 NO

[Ue] rated operational voltage

<= 250 V AC

[Ie] rated operational current

25 A AC-7A; 8.5 A AC-7B

Operating position

30°/vertical

Control circuit type

AC at 50 Hz

[Uc] control circuit voltage

24 V AC 50 Hz

[Uimp] rated impulse withstand voltage

4 kV

[Ith] conventional free air thermal current

25 A (at 50 °C) for power circuit

Irms rated making capacity

68 A at 400 V AC for power circuit conforming to IEC 61095

Rated breaking capacity

68 A at 400 V for power circuit conforming to IEC 61095

[Icw] rated short-time withstand current

200 A 40 °C - 10 s for power circuit; 62 A 40 °C - 30 s for power circuit

Associated fuse rating

25 A gL at <= 440 V for power circuit

Average impedance

2.5 mOhm - Ith 25 A 50 Hz for power circuit

[Ui] rated insulation voltage

500 V conforming to IEC 61095; 500 V conforming to VDE 0110

Electrical durability

AC-7A: 100000 cycles; AC-7B: 100000 cycles

Power dissipation per pole

1.6 W

Control type

Remote control

mounting mode

Clip-on

Mounting support

DIN rail

Standards

IEC 61095; IEC 60947-5

Connections - terminals

Control circuit: screw clamp terminals 1 cable(s) 2.5 mm²flexible without cable end; Control circuit: screw clamp terminals 2 cable(s) 2.5 mm²flexible without cable end; Control circuit: screw clamp terminals 1 cable(s) 2.5 mm²flexible with cable end; Control circuit: screw clamp terminals 2 cable(s) 1.5 mm²flexible with cable end; Control circuit: screw clamp terminals 1 cable(s) 1.5 mm²solid without cable end; Control circuit: screw clamp terminals 2 cable(s) 1.5 mm²solid without cable end; Power circuit: screw clamp terminals 1 cable(s) 6 mm²flexible without cable end; Power circuit: screw clamp terminals 2 cable(s) 4 mm²flexible without cable end; Power circuit: screw clamp terminals 1 cable(s) 6 mm²flexible with cable end; Power circuit: screw clamp terminals 2 cable(s) 1.5 mm²flexible with cable end; Power circuit: screw clamp terminals 1 cable(s) 6 mm²solid without cable end; Power circuit: screw clamp terminals 2 cable(s) 4 mm²solid without cable end

Tightening torque

Control circuit: 0.8 N.m - on screw clamp terminals; Power circuit: 0.8 N.m - on screw clamp terminals

Operating time

10...25 ms opening; 10...30 ms closing

Mechanical durability

1000000 cycles

Maximum operating rate

300 cyc/h 50 °C

Control circuit voltage limits

Drop-out: 0.2...0.75 Uc at 50 Hz (at <50 °C); Operational: 0.85...1.1 Uc at 50 Hz (at <50 °C)

Inrush power in VA

15 VA 50 Hz (at 20 °C)

Hold-in power consumption in VA

3.8 VA 50 Hz (at 20 °C)

Heat dissipation

1.3 W at 50/60 Hz

IP degree of protection

IP40 conforming to VDE 0106 (in enclosure); IP20 conforming to VDE 0106

Protective treatment

TC

Ambient air temperature for operation

-5…50 °C

Ambient air temperature for storage

-40…70 °C

Operating altitude

<= 3000 m

Mechanical robustness

Shocks contactor open: 10 Gn for 11 ms; Shocks contactor closed: 15 Gn for 11 ms; Vibrations contactor open: 2 Gn, 5...300 Hz; Vibrations contactor closed: 3 Gn, 5...300 Hz

Total number of 18 mm modules

1

Height

81 mm

Width

17.5 mm

Depth

62.5 mm

Product weight

0.11 kg

Quantity per set

Set of 12

Colour

White

Number of Units in Package 1

1

Number of Units in Package 2

12

Number of Units in Package 3

96

Warranty (in months)

18

EAN

3389110641424

HS Code

8536.41

• EAN 3389110641424
• MPN GC2520B5
