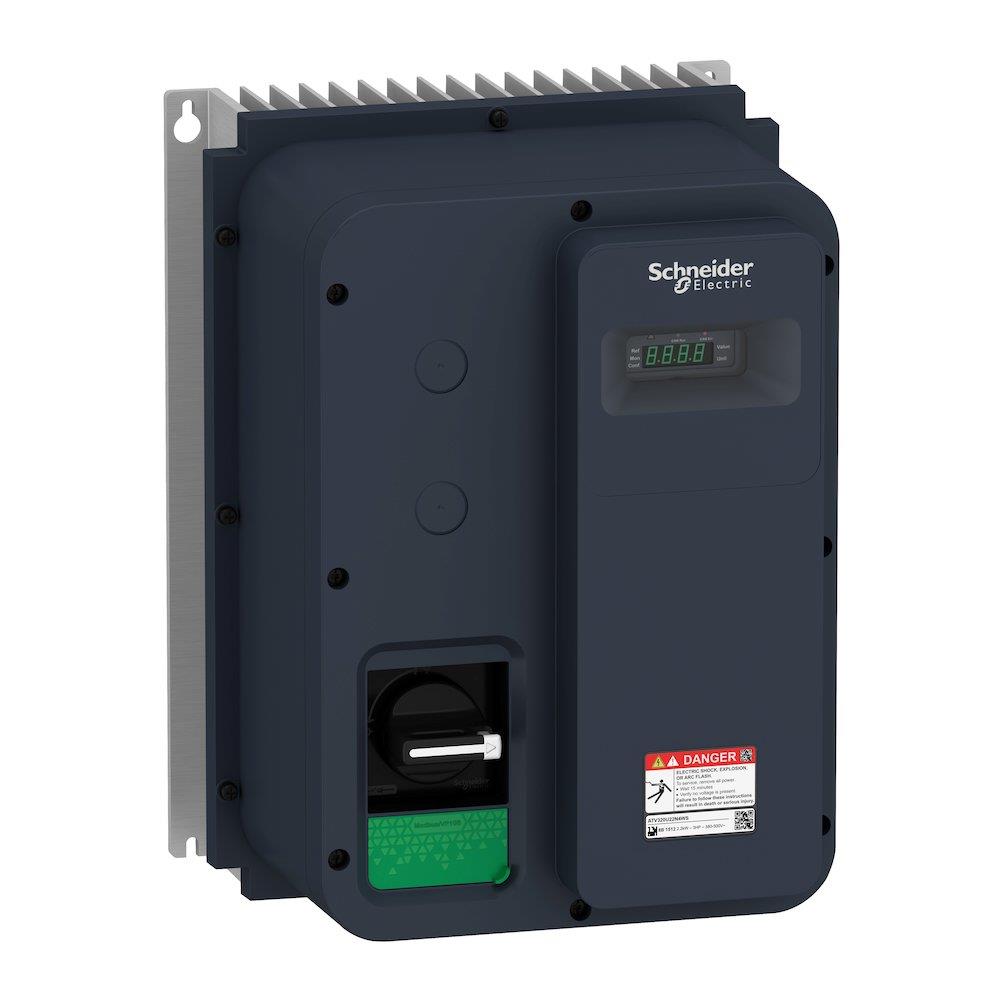

Schneider ATV320 Frequency Converter with switch - IP 65, 240V, 1.1kW

Schneider ATV320 Frequency Converter with switch. Frequency converters (Electrical Engineering). Principal data: protection class (ip) IP 65, voltage 240 V, power 1.1 kW. Supplied under manufacturer part number ATV320U11M2WS, EAN 3606489548605, HS code 8504.40, country of origin Indonesia.

Product type

Frequency converters Protection class (IP): IP 65 Voltage: 240 V Power: 1.1 kW REACH SVHC substance above 0.1%: Lead, Diboron-trioxide, Lead tetroxide, Lead-monoxide, 1-methyl-2-pyrrolidone, 119344-86-4, 2.4, 6-tri-tert-butylphenol, 2-ethoxyethyl acetate, Bumetrizole, Diarylmethane, Dicumyl peroxide, Lead-titanium-trioxide, Melamine, Octrizole, Phenol, methylstyrenated Carbon footprint (EPD): 160.2196 kg CO2e per pcs Country of origin: Indonesia Customs tariff code (EU CN): 85044095 HS code: 8504.40 Manufacturer part number: ATV320U11M2WS Range of product: Altivar Machine ATV320 Product or component type: Variable speed drive Product specific application: Complex machines Variant: With disconnect switch Format of the drive: Enclosed mounting mode: Wall mount Communication port protocol: Modbus serial; CANopen Option card: Communication module, CANopen; Communication module, EtherCAT; Communication module, Profibus DP V1; Communication module, PROFINET; Communication module, Ethernet Powerlink; Communication module, EtherNet/IP; Communication module, DeviceNet [Us] rated supply voltage: 200...240 V - 15...10 % nominal output current: 6.9 A Motor power kW: 1.1 kW for heavy duty Motor power hp: 1.5 hp EMC filter: Class C2 EMC filter integrated IP degree of protection: IP65 Discrete input number: 7 Discrete input type: STO safe torque off, 24 V DC, impedance: 1.5 kOhm; DI1...DI6 logic inputs, 24 V DC (30 V); DI5 programmable as pulse input: 0…30 kHz, 24 V DC (30 V) Discrete input logic: Positive logic (source); Negative logic (sink) Discrete output number: 3 Discrete output type: Open collector DQ+ 0…1 kHz 30 V DC 100 mA; Open collector DQ- 0…1 kHz 30 V DC 100 mA Analogue input number: 3 Analogue input type: AI1 voltage: 0...10 V DC, impedance: 30 kOhm, resolution 10 bits; AI2 bipolar differential voltage: +/- 10 V DC, impedance: 30 kOhm, resolution 10 bits; AI3 current: 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration), impedance: 250 Ohm, resolution 10 bits Analogue output number: 1 Analogue output type: Software-configurable current AQ1: 0...20 mA impedance 800 Ohm, resolution 10 bits; Software-configurable voltage AQ1: 0...10 V DC impedance 470 Ohm, resolution 10 bits Relay output type: Configurable relay logic R1A 1 NO electrical durability 100000 cycles; Configurable relay logic R1B 1 NC electrical durability 100000 cycles; Configurable relay logic R1C; Configurable relay logic R2A 1 NO electrical durability 100000 cycles; Configurable relay logic R2C Maximum switching current: Relay output R1A, R1B, R1C on resistive load, cos phi = 1: 3 A at 250 V AC; Relay output R1A, R1B, R1C on resistive load, cos phi = 1: 3 A at 30 V DC; Relay output R1A, R1B, R1C, R2A, R2C on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 250 V AC; Relay output R1A, R1B, R1C, R2A, R2C on inductive load, cos phi = 0.4 and L/R = 7 ms: 2 A at 30 V DC; Relay output R2A, R2C on resistive load, cos phi = 1: 5 A at 250 V AC; Relay output R2A, R2C on resistive load, cos phi = 1: 5 A at 30 V DC minimum switching current: Relay output R1A, R1B, R1C, R2A, R2C: 5 mA at 24 V DC Method of access: Slave CANopen 4 quadrant operation possible: True Asynchronous motor control profile: Voltage/frequency ratio, 5 points; Flux vector control without sensor, standard; Voltage/frequency ratio - Energy Saving, quadratic U/f; Flux vector control without sensor - Energy Saving; Voltage/frequency ratio, 2 points Synchronous motor control profile: Vector control without sensor Maximum output frequency: 0.599 kHz Acceleration and deceleration ramps: Linear; U; S; CUS; Ramp switching; Acceleration/deceleration ramp adaptation; Acceleration/deceleration automatic stop with DC injection Motor slip compensation: Automatic whatever the load; Adjustable 0...300 %; Not available in voltage/frequency ratio (2 or 5 points) Switching frequency: 2...16 kHz adjustable; 4...16 kHz with derating factor Nominal switching frequency: 4 kHz Braking to standstill: By DC injection Brake chopper integrated: True Line current: 13.7 A at 200 V (heavy duty); 11.5 A at 240 V (heavy duty) Maximum input current: 13.7 A Maximum output voltage: 240 V Apparent power: 2.8 kVA at 240 V (heavy duty) Network frequency: 50...60 Hz Relative symmetric network frequency tolerance: 5 % Prospective line Isc: 1 kA Base load current at high overload: 3.9 A Power dissipation in W: Self-cooled: 61 W at 200 V, switching frequency 4 kHz with safety function Safely Limited Speed (SLS): True with safety function Safe brake management (SBC/SBT): False with safety function Safe Operating Stop (SOS): False with safety function Safe Position (SP): False with safety function Safe programmable logic: False with safety function Safe Speed Monitor (SSM): False with safety function Safe Stop 1 (SS1): True with sft fct Safe Stop 2 (SS2): False with safety function Safe torque off (STO): True with safety function Safely Limited Position (SLP): False with safety function Safe Direction (SDI): False Protection type: Input phase breaks: drive; Overcurrent between output phases and earth: drive; Overheating protection: drive; Short-circuit between motor phases: drive; Thermal protection: drive Width: 250 mm Height: 340 mm Depth: 235.0 mm Product weight: 7.8 kg Transient overtorque: 170…200 % of nominal motor torque Operating position: Vertical +/- 10 degree Product certifications: CE; ATEX; NOM; GOST; EAC; RCM; KC Marking: CE; ATEX; UL; CSA; EAC; RCM Standards: IEC 61800-5-1 Electromagnetic compatibility: Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2; Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3; Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4; 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5; Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6; Voltage dips and interruptions immunity test conforming to IEC 61000-4-11 Environmental class (during operation): Class 3C3 according to IEC 60721-3-3; Class 3S2 according to IEC 60721-3-3 Maximum acceleration under shock impact (during operation): 150 m/s² at 11 ms Maximum deflection under vibratory load (during operation): 1.5 mm at 2...13 Hz Permitted relative humidity (during operation): Class 3K5 according to EN 60721-3 Overvoltage category: III Regulation loop: Adjustable PID controller Speed accuracy: +/- 10 % of nominal slip 0.2 Tn to Tn Pollution degree: 3 Ambient air transport temperature: -25…70 °C Ambient air temperature for operation: -10…40 °C without derating; 40…60 °C with derating factor Ambient air temperature for storage: -25…70 °C Number of Units in Package 1: 1 Warranty (in months): 18 EAN: 3606489548605

HS Code

8504.40

• EAN 3606489548605
• MPN ATV320U11M2WS
