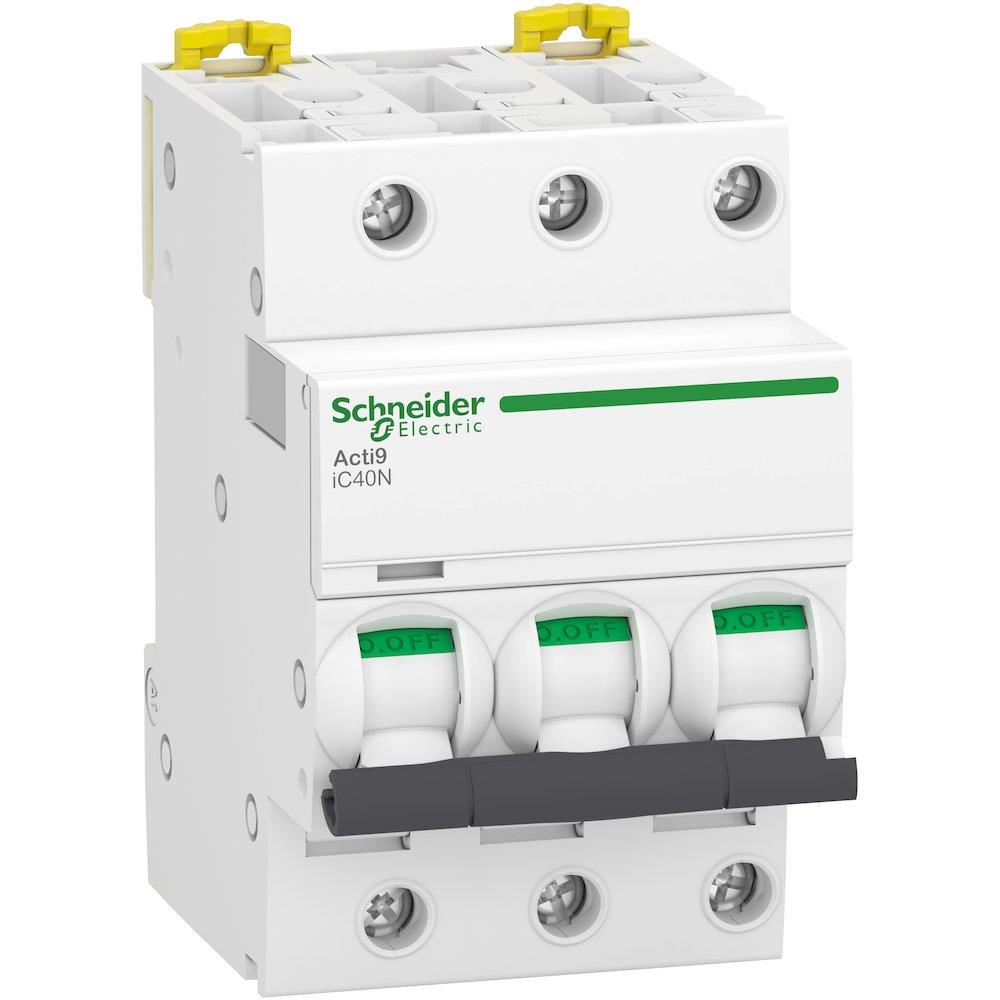

Schneider ACTI9 IC40N Circuit breaker - ACTI9 IC40, 20A, 3P, D
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Acti9 iC40N Circuit breaker. Circuit breakers (Electrical Engineering / Components for panels and boxes). Principal data: series Acti9 iC40, current rating 20 A, number of poles 3P, tripping characteristic D. Supplied under manufacturer part number A9P64320, EAN 3606481325785, HS code 8536.20, country of origin Hungary.
Technical Specifications
- Product type
- Circuit breakers
- Product group
- Components for panels and boxes
- Series
- Acti9 iC40
- Current rating
- 20 A
- Number of poles
- 3P
- Tripping characteristic
- D
- Breaking capacity
- 6/10 kA
- Width
- 54 mm
- REACH SVHC substance above 0.1%
- Lead
- Carbon footprint (EPD)
- 2.2300 kg CO2e per pcs
- Environmental declaration
- PEP ECO Passport
- Country of origin
- Hungary
- Customs tariff code (EU CN)
- 85362010
- HS code
- 8536.20
- Manufacturer part number
- A9P64320
- Range
- Acti9
- Product name
- Acti9 iC40
- Product or component type
- Miniature circuit-breaker
- Device short name
- iC40N
- Device application
- Distribution
- Poles description
- 3P
- Number of protected poles
- 3
- [In] rated current
- 20 A
- Network type
- AC
- Trip unit technology
- Thermal-magnetic
- Curve code
- D
- Suitability for isolation
- Yes conforming to EN/IEC 60947-2
- Quality labels
- AENOR
- Network frequency
- 50/60 Hz
- [Ue] rated operational voltage
- 400 V AC 50/60 Hz
- Magnetic tripping limit
- 10...14 x In conforming to EN/IEC 60898-1; 12 x In +/- 20 % conforming to EN/IEC 60947-2
- [Ics] rated service breaking capacity
- 6000 A 100 % x Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1; 7.5 kA 75 % x Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60947-2
- [Ui] rated insulation voltage
- 440 V AC 50/60 Hz conforming to EN/IEC 60947-2
- [Uimp] rated impulse withstand voltage
- 4 kV conforming to EN/IEC 60947-2
- Contact position indicator
- Yes
- Control type
- Toggle
- Local signalling
- ON/OFF indication; Trip indicator
- mounting mode
- Clip-on
- Mounting support
- DIN rail
- 9 mm pitches
- 6
- Height
- 85 mm
- Depth
- 74 mm
- Product weight
- 340 g
- Colour
- White
- Mechanical durability
- 20000 cycles
- Electrical durability
- 20000 cycles
- Locking options description
- Padlocking device
- Connections - terminals
- Tunnel type terminals top or bottom 1…10 mm² flexible; Tunnel type terminals top or bottom 1…16 mm² rigid
- Wire stripping length
- 14 mm for top or bottom connection
- Tightening torque
- 2 N.m top or bottom
- Earth-leakage protection
- Separate block
- Standards
- EN/IEC 60898-1; EN/IEC 60947-2
- Product certifications
- CE; BV; RINA; DNV
- IP degree of protection
- IP20 conforming to IEC 60529; IP40 (modular enclosure) conforming to IEC 60529
- Pollution degree
- 3 conforming to EN/IEC 60947-2
- Relative humidity
- 95 % at 55 °C
- Operating altitude
- 2000 m
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -40…85 °C
- Warranty (in months)
- 18
- EAN
- 3606481325785
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 3606481325785
- MPN A9P64320
