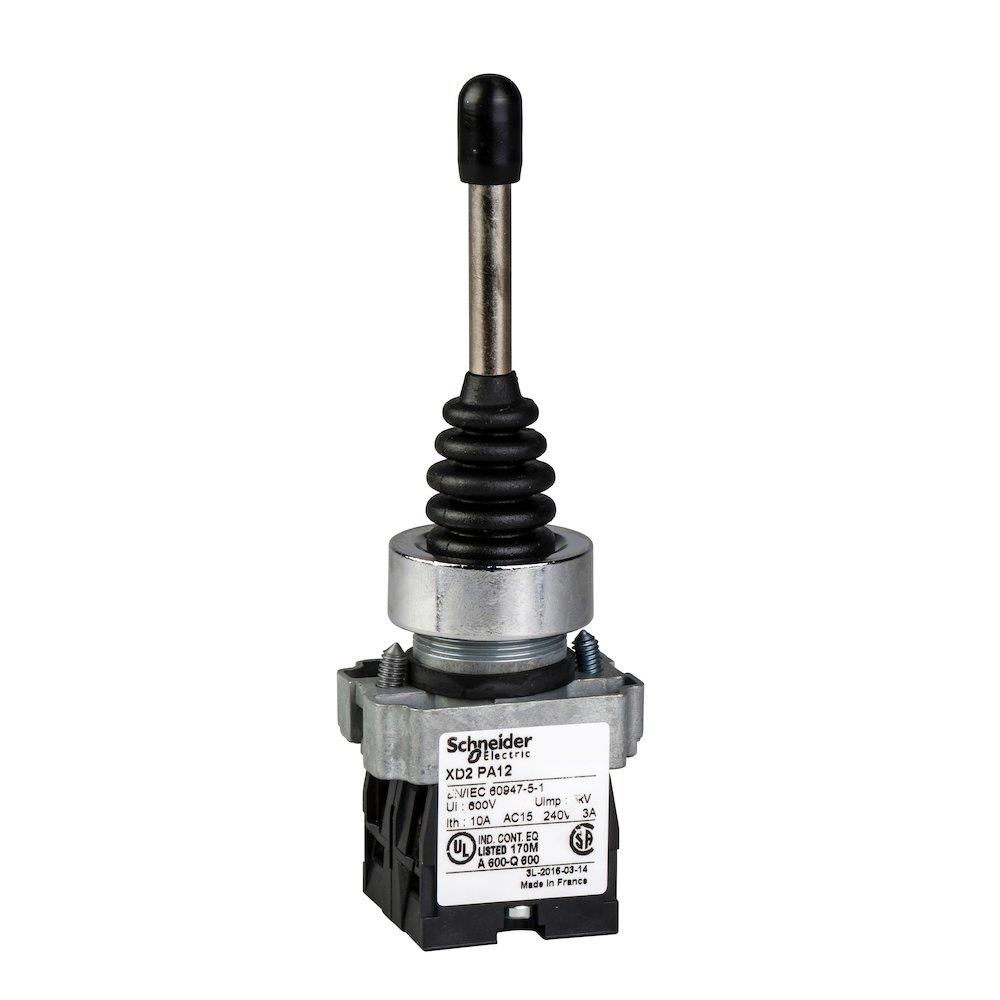

Schneider XD2 Joystick - Harmony XD2, 4 directions without spring-return, 4NO, 4PCS

Schneider XD2 Joystick. Potentiometer and joystick (Electrical Engineering / Push buttons and signal units). Principal data: series Harmony XD2, operation 4 directions without spring-return, contact type 4NO, number of posts 4 pcs. Supplied under manufacturer part number XD2PA14, EAN 3389110611526, HS code 8536.50, country of origin France.

Product type

Potentiometer and joystick

Product group

Push buttons and signal units

Series

Harmony XD2

Operation

4 directions without spring-return

Contact type

4NO

Number of posts

4 pcs

REACH SVHC substance above 0.1%

Lead

Carbon footprint (EPD)

0.8961 kg CO2e per pcs

Country of origin

France

Customs tariff code (EU CN)

85365080

HS code

8536.50

Manufacturer part number

XD2PA14

Range of product

Harmony XD2

Product or component type

Complete joystick controller

Device short name

XD2

Mounting diameter

22 mm

Bezel material

Chromium plated metal

[Ui] rated insulation voltage

500 V (pollution degree 3) conforming to EN/IEC 60947-1; 600 V (pollution degree 3) conforming to UL 508; 600 V (pollution degree 3) conforming to CSA C22.2 No 14

[Uimp] rated impulse withstand voltage

6 kV conforming to EN/IEC 60947-1

Operator position information

All positions

Notch per direction

1

Operator direction information

4 directions

Contacts type and composition

1 NO for time delayed

Short-circuit protection

10 A gG (gl) Neozed cartridge fuse conforming to EN/IEC 60947-5-1

Connections - terminals

Captive screw clamp terminals, 2 x 1.5 mm² with or without cable end; Captive screw clamp terminals, 1 x 0.5 mm² with or without cable end; Captive screw clamp terminals, 1 x 2.5 mm² with or without cable end

Electrical durability

1000000 cycles, AC-15 at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C; 1000000 cycles, AC-15 at 127 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C; 1000000 cycles, DC-13 at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C; 1000000 cycles, DC-13 at 48 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C; 1000000 cycles, DC-13 at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C; 1000000 cycles, AC-15 at 48 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C

Contact code designation

A600-Q600

Overvoltage category

Class I conforming to IEC 61140

Mechanical durability

1000000 cycles

fixing center

85 x 85 mm

Return

without

Height

146 mm

Depth

40 mm

Product weight

0.145 kg

[Ie] rated operational current

0.27 A at 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-1; 3 A at 240 V, AC-15, A300

Standards

EN/IEC 60947-5-1

Product certifications

CSA; UL; LROS (Lloyds register of shipping)

Protective treatment

TC

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-25…70 °C

Vibration resistance

5 gn (f= 40…500 Hz) conforming to IEC 60068-2-6

Shock resistance

20 gn conforming to IEC 60068-2-27

Number of Units in Package 1

1

Number of Units in Package 2

48

Warranty (in months)

18

EAN

3389110611526

HS Code

8536.50
