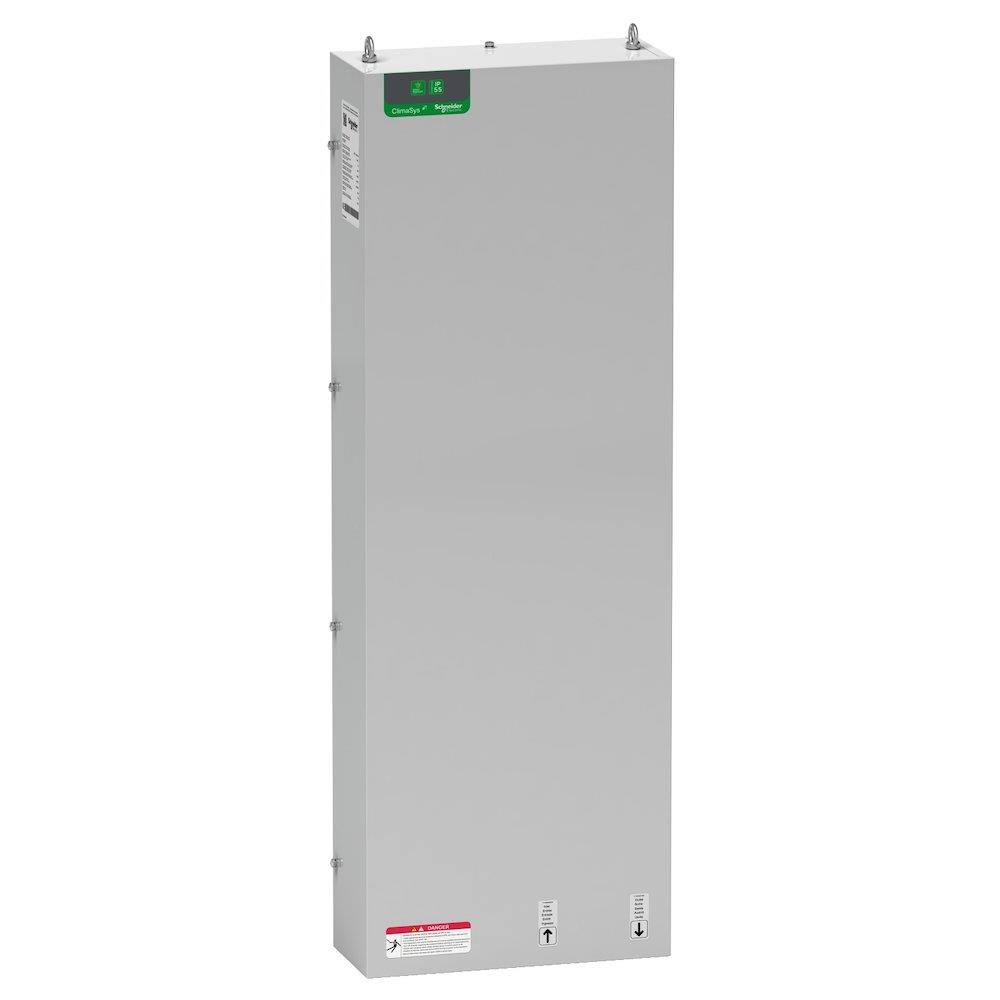

Schneider ClimaSys CE Cooling Unit - 230V, 3,5kW, NSYCEW3K5
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider ClimaSys CE Cooling Unit. Climate control (Electrical Engineering / Tables, cabinets, and boxes / Wall and floor cabinets). Principal data: supply voltage 230 V, cooling capacity 3.5 kW, type NSYCEW3K5. Supplied under manufacturer part number NSYCEW3K5, EAN 3606480620737, HS code 8419.50, country of origin Italy.
Technical Specifications
- Product type
- Climate control
- Product group
- Tables, cabinets, and boxes
- Supply voltage
- 230 V
- Cooling capacity
- 3.5 kW
- Type
- NSYCEW3K5
- REACH SVHC substance above 0.1%
- None
- Carbon footprint (EPD)
- 213.8444 kg CO2e per pcs
- Country of origin
- Italy
- Customs tariff code (EU CN)
- 84195080
- HS code
- 8419.50
- Manufacturer part number
- NSYCEW3K5
- Range
- ClimaSys
- Product name
- ClimaSys CE
- Product or component type
- Air-water exchanger
- mounting type
- Sides of enclosure
- Cooling power
- 3500 W
- Pressure
- 5 bar for water
- Pressure drop
- 0.2 bar
- Water flow
- Internal circuit: 500 l/h
- Flow rate
- External circuit: 1050 m3/h
- Control type
- Thermostat
- Temperature setting range
- 20…46 °C
- Ambient air temperature for operation
- 1…70 °C outside the enclosure: ; 20…60 °C inside the enclosure:
- Controlled fluid
- Water
- Fluid connection type
- G 1/2 (female)
- Input voltage
- 230 V 50/60 Hz
- [In] rated current
- 0.55 A
- Power consumption in W
- 130 W
- Height
- External: 1148 mm
- Width
- External: 398 mm
- Depth
- External : 163 mm
- Product weight
- 29 kg
- Noise level
- 64 dB conforming to EN/ISO 3746
- Protection type
- Thermal protection: T 2 A
- Material
- Steel
- Colour
- Grey (RAL 7035)
- IP degree of protection
- IP55 conforming to IEC 60529 (on the internal circuit); IP55 conforming to IEC 60529 (on the external circuit)
- Product certifications
- CE
- Directives
- 2006/42/EC - machinery; 2004/108/EC - electromagnetic compatibility; 2006/95/EC - low voltage directive
- Standards
- EN 60335-2-40; EN/ISO 12100; EN 60204-1; EN 60335-1
- Warranty (in months)
- 18
- EAN
- 3606480620737
Standards & Compliance
- HS Code
- 8419.50
Cross References
- EAN 3606480620737
- MPN NSYCEW3K5
