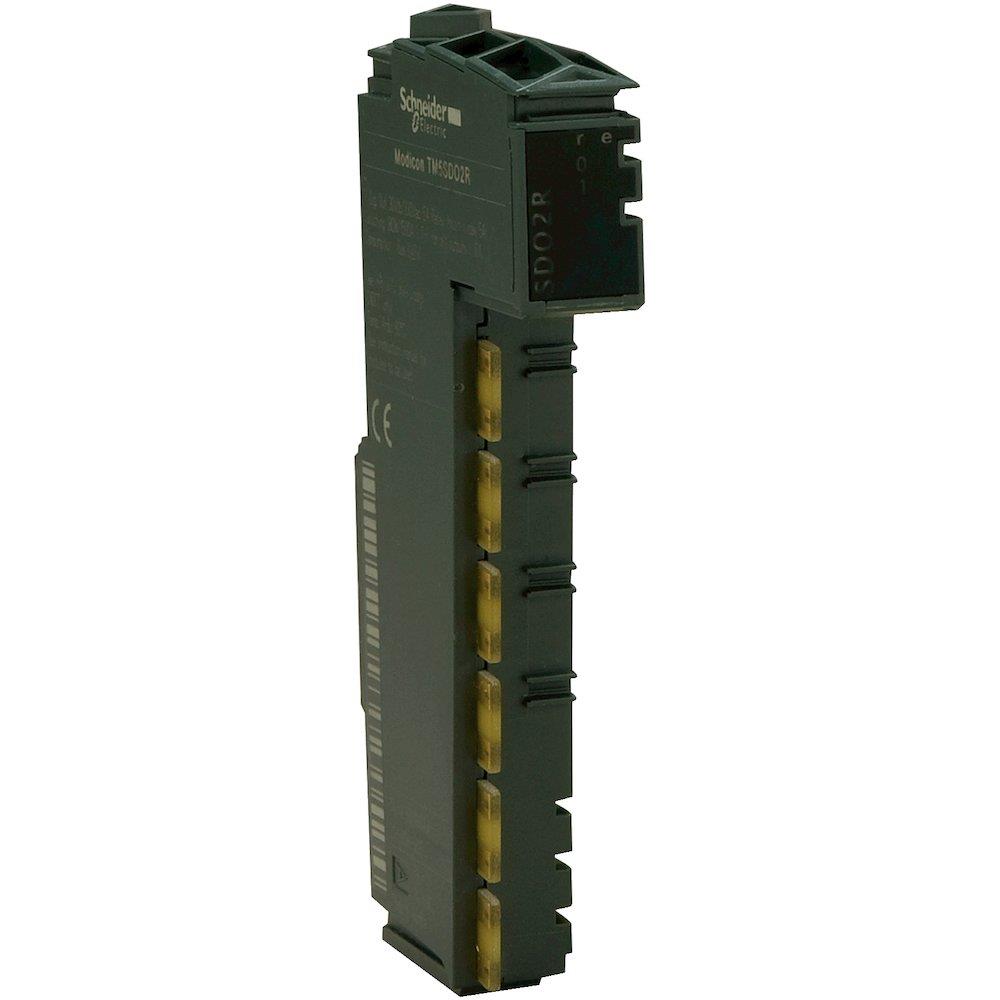

Schneider Modicon TM5 Expansion Module - 30V, 2

Schneider Modicon TM5 Expansion Module. Distributed I/O (Electrical Engineering / Industry and automation). Principal data: supply voltage 30 V, number of digital outputs 2. Supplied under manufacturer part number TM5SDO4R, EAN 3595864074696, HS code 8538.90, country of origin Austria.

Product type

Distributed I/O

Product group

Industry and automation

Supply voltage

30 V

Number of digital outputs

2

Carbon footprint (EPD)

0.4011 kg CO2e per pcs

Country of origin

Austria

Customs tariff code (EU CN)

85389099

HS code

8538.90

Manufacturer part number

TM5SDO4R

Range of product

Modicon TM5

Product or component type

Discrete output module

Product compatibility

PacDrive LMC Pro 2; PacDrive LMC Eco; PacDrive LMC Pro

Range compatibility

PacDrive LMC motion controller

Discrete output number

4

Discrete output voltage

230 V AC (184...276 V) for relay; 30 V DC (24...36 V) for relay

Current per channel

5 A

Maximum current per output common

10 A

Mechanical durability

20000000 cycles

Electrical durability

500000.0 cycles 5 A

Typical current consumption

160 mA at 5 V DC

Electrical connection

Plug-in

Power dissipation in W

2.3 W

Height

99 mm

Width

12.5 mm

Depth

75 mm

Product weight

0.025 kg

Electromagnetic compatibility

Electrostatic discharge immunity test, 4 kV on contact conforming to IEC 61000-4-2; Electrostatic discharge immunity test, 8 kV in air conforming to IEC 61000-4-2; Susceptibility to electromagnetic fields, 1 V/m 2...2.7 GHz conforming to IEC 61000-4-3; Susceptibility to electromagnetic fields, 10 V/m 80...2000 MHz conforming to IEC 61000-4-3; Electrical fast transient/burst immunity test, 1 kV I/O conforming to IEC 61000-4-4; Electrical fast transient/burst immunity test, 1 kV shielded cable conforming to IEC 61000-4-4; Electrical fast transient/burst immunity test, 2 kV power lines conforming to IEC 61000-4-4; 1.2/50 µs shock waves immunity test, 0.5 kV differential mode conforming to IEC 61000-4-5; 1.2/50 µs shock waves immunity test, 1 kV common mode conforming to IEC 61000-4-5; Conducted RF disturbances conforming to IEC 61000-4-6; Conducted and radiated emissions conforming to CISPR 11

IP degree of protection

IP20

Marking

CE

Product certifications

CSA; CULus; GOST-R; C-Tick

Standards

CSA C22.2 No 213; UL 508; IEC 61131-2; CSA C22.2 No 142

Ambient air temperature for operation

-10…55 °C without derating (horizontal installation); -10…60 °C with derating factor (horizontal installation); -10…50 °C (vertical installation)

Ambient air temperature for storage

-40…70 °C

Relative humidity

5…95 % without condensation

Operating altitude

0...2000 m

Pollution degree

2

Vibration resistance

1 gn (f = 8.4…150 Hz) on DIN rail; 3.5 mm (f = 5…8.4 Hz) on DIN rail

Shock resistance

15 gn for 11 ms

Warranty (in months)

18

EAN

3595864074696

HS Code

8538.90

• EAN 3595864074696
• MPN TM5SDO4R
