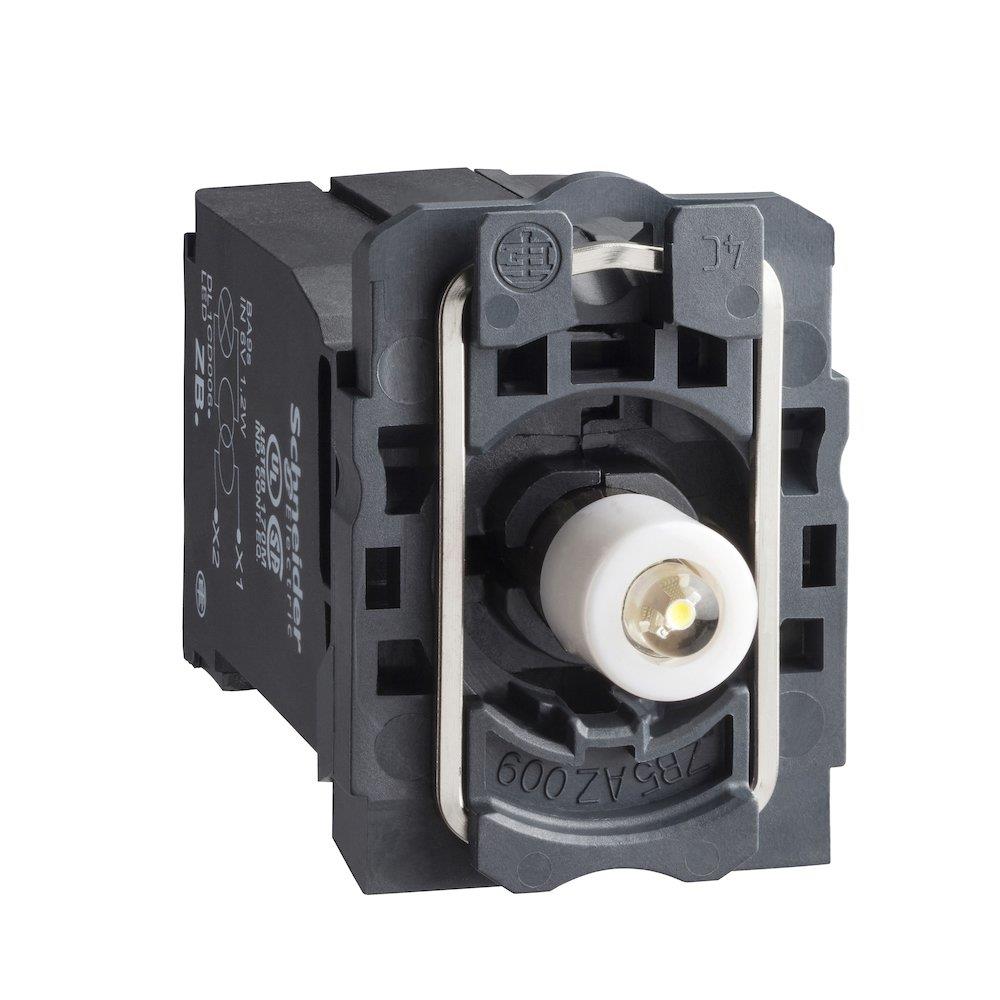

Schneider ZB5 Lamp Body with LED - Harmony XB5, white, 400 ACV

Schneider ZB5 Lamp Body with LED. Indicator lights (Electrical Engineering / Push buttons and signal units / Push buttons). Principal data: series Harmony XB5, color White, voltage 400 V AC. Supplied under manufacturer part number ZB5OF5D1, EAN 3389110908237, HS code 8531.80, country of origin France.

Product type

Indicator lights

Product group

Push buttons and signal units

Series

Harmony XB5

Color

White

Voltage

400 V AC

REACH SVHC substance above 0.1%

Diboron-trioxide, Lead-monoxide

Carbon footprint (EPD)

1.0974 kg CO2e per pcs

Country of origin

France

Customs tariff code (EU CN)

85318070

HS code

8531.80

Manufacturer part number

ZB5AV5D1

Range of product

Harmony XB5

Product or component type

Complete body/light block assembly

Device short name

ZB5

Fixing collar material

Plastic

Sale per indivisible quantity

1

Connections - terminals

Screw clamp terminals, = 1 x 0.22 mm² without cable end conforming to IEC 60947-1

Light source

LED

Bulb base

BA 9s

Light block supply

Via integral transformer 1.2 VA 6 V

Light source colour

White

CAD overall width

30 mm

CAD overall height

42 mm

CAD overall depth

55 mm

Terminals description ISO n°1

(X1-X2)PL

Product weight

0.102 kg

Tightening torque

0.8…1.2 N.m conforming to IEC 60947-1

Shape of screw head

Cross compatible with Philips no 1 screwdriver; Cross compatible with pozidriv No 1 screwdriver; Slotted compatible with flat Ø 4 mm screwdriver; Slotted compatible with flat Ø 5.5 mm screwdriver

[Ui] rated insulation voltage

600 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1

Signalling type

Steady

[Us] rated supply voltage

400 V AC at 50/60 Hz

Mounting of block

Front mounting

Electrical composition code

P4; M9

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Electrical shock protection class

Class II conforming to IEC 60536

Standards

JIS C8201-5-1; UL 508; IEC 60947-5-4; IEC 60947-1; IEC 60947-5-1; CSA C22.2 No 14; JIS C8201-1

Product certifications

CSA; DNV; BV; LROS (Lloyds register of shipping); UL listed

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Number of Units in Package 1

1

Number of Units in Package 2

50

Warranty (in months)

18

EAN

3389110908237

HS Code

8531.80

• EAN 3389110908237
• MPN ZB5AV5D1
