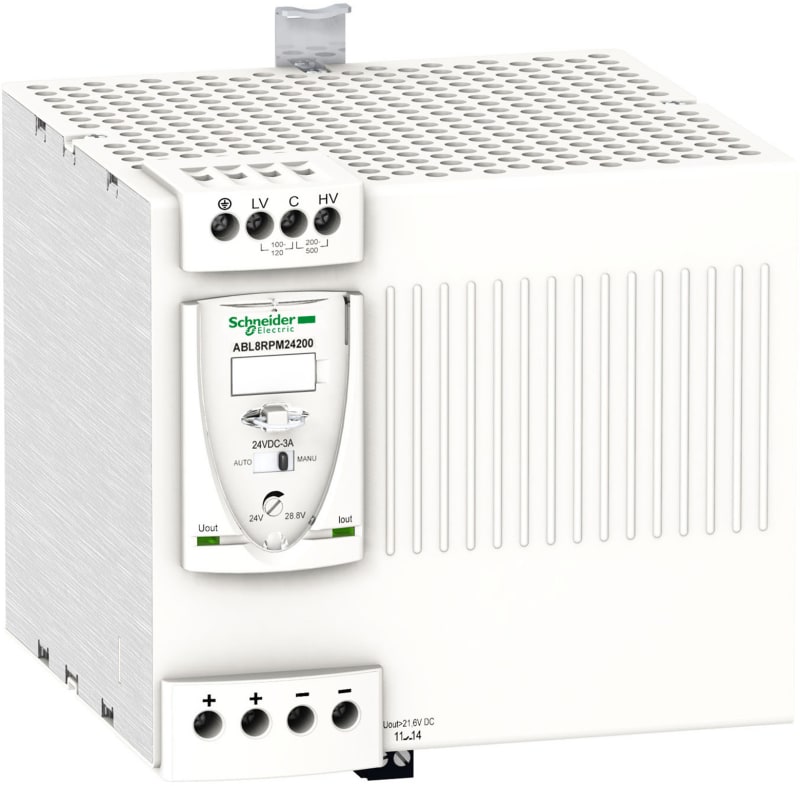

Schneider Electric regulated SMPS - 1 or 2-Phase - 100..240 V - 24 V - 20 A ABL8RPM24200

Schneider Electric ABL8RPM24200 Universal. Phaseo Universal Power Supplies covers effekter from 72 for 960W at 24V AC/DC and fits well for majoriteten of applications as requires power supplyer.

Manufacturer part number (MPN)

ABL8RPM24200

EAN / GTIN

3389119405638

Sales unit

pcs

Voltage

24 V DC

Rated current

20 A

Range of product

Modicon Power Supply

Product or component type

Power supply

Power supply type

Regulated switch mode

Nominal input voltage

100...120 V AC single phase, terminal(s): N-L1; 200...240 V AC phase to phase, terminal(s): L1-L2

Rated power in W

480 W

Output voltage

24 V DC

Power supply output current

20 A

Permissible temporary current boost

1.5 x In (for 4 s)

Anti-harmonic filter

Low frequency harmonic currents

Input voltage limits

85...132 V AC; 170...264 V AC

Inrush current

30 A

Power factor

0.68 at 240 V AC; 0.69 at 120 V AC

Efficiency

88 %

Output voltage adjustment

24...28.8 V adjustable

Power dissipation in W

57.6 W

Provided equipment

Power factor correction filter conforming to IEC 61000-3-2

Output protection type

Against overload, protection technology: manual or automatic reset; Against overvoltage, protection technology: 30...32 V, manual reset; Against short-circuits, protection technology: manual or automatic reset; Against undervoltage, protection technology: tripping if U < 21.6 V; Thermal, protection technology: automatic reset

Connections - terminals

Removable screw terminal block: 2 x 2.5 mm², for diagnostic relay; Screw type terminals: 3 x 0.5...3 x 4 mm², (22 AWG...12 AWG) for input connection; Screw type terminals: 1 x 0.5...1 x 4 mm², (22 AWG...12 AWG) for input ground connection; Screw type terminals: 4 x 0.5...4 x 4 mm², (22 AWG...12 AWG) for output connection

Status LED

1 LED (green and red) output voltage; 1 LED (green, red and orange) output current

Depth

145 mm

Height

125 mm

Width

146 mm

Product weight

1.6 kg

Output coupling

Series; Parallel

Marking

CE

Mounting support

35 x 7.5 mm symmetrical DIN rail; 35 x 15 mm symmetrical DIN rail

Operating position

Vertical

Supply

SELV conforming to IEC 60950-1; SELV conforming to IEC 60204-1; SELV conforming to IEC 60364-4-41

Dielectric strength

2500 V with between input and ground; 3000 V with between input and output; 500 V with between output and ground

Standards

CSA C22.2 No 60950-1; UL 508; EN/IEC 62368-1

Product certifications

CCSAus; EAC; KC; RCM; UL

Environmental characteristic

EMC conforming to IEC 61000-6-1; EMC conforming to IEC 61000-6-3; EMC conforming to EN 55024; EMC conforming to IEC 61000-6-4; EMC conforming to EN/IEC 61204-3; Safety conforming to IEC 60950-1; Safety conforming to EN/IEC 61204-3

Operating altitude

2000 m

IP degree of protection

IP20 conforming to IEC 60529; IP10

Ambient air temperature for operation

50…60 °C with derating factor mounting position A < 2000 m; -25…50 °C without derating mounting position A < 2000 m

Number of Units in Package 1

1

Number of Units in Package 2

36

Country of origin

PH

Warranty (in months)

18

Voltage type (supply voltage)

AC/DC

Max. output current 1

20 A

Nominal value output voltage 1

24 V

Nominal value output current 1

20 A

Power output

480 W

Type of electric connection

Screw connection

Wall mounting possible

No

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Degree of protection (IP)

IP20

HS Code

8537.10
