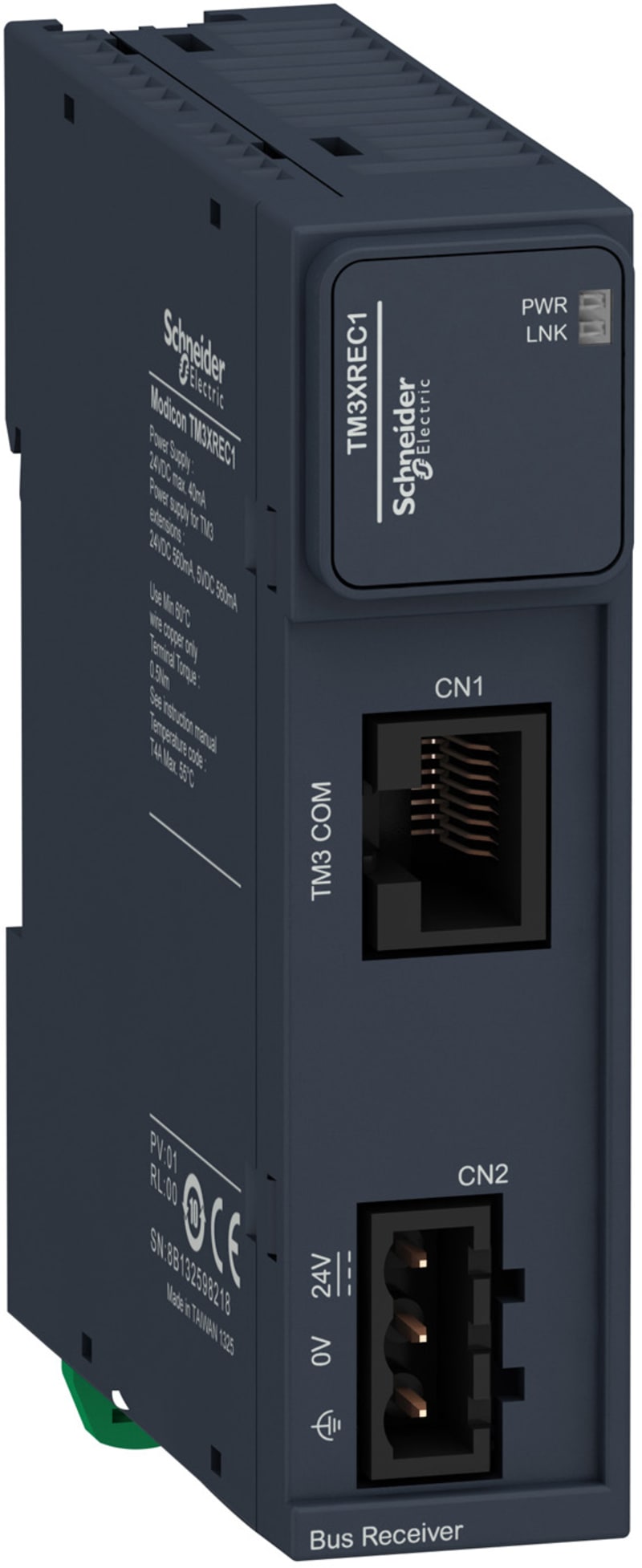

Schneider Electric TM3XREC1 Modicon TM3 - Remote receiver module

Schneider Electric TM3XREC1 Modicon TM3 - Remote receiver module is listed under Control & Automation / PLCs & Industrial Networking. Sales unit: pcs; Package quantity: 18 pcs; Range of product: Modicon TM3; Product or component type: Remote receiver module; [Us] rated supply voltage: 24 V DC by external supply (- 15...20 %); Current consumption: 40 mA at 24 V DC via bus connector.

Manufacturer part number (MPN)

TM3XREC1

EAN / GTIN

3606480611247

Sales unit

pcs

Package quantity

18 pcs

Range of product

Modicon TM3

Product or component type

Remote receiver module

Range compatibility

Modicon M221; Modicon M251; Modicon M241; Modicon M262

Maximum number of I/O expansion module

7

[Us] rated supply voltage

24 V DC by external supply (- 15...20 %)

Power supply output current

560 mA 5 V for expansion bus; 560 mA 24 V for expansion bus

Current consumption

40 mA at 24 V DC via bus connector

Maximum power dissipation in W

1 W

Cable distance between devices

0.5…5 mm extension cable with 2 RJ45 conductor between receiver and transmitter

Electrical connection

RJ45 connector for connecting the bus transmitter; removable screw terminal block, 3 terminal(s) for connecting the 24 V DC power supply

Local signalling

1 LED green for power supply; 1 LED green for Link (Link Status)

Electromagnetic emission

Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to IEC 55011; Radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230…1000 MHz conforming to IEC 55011

Mounting support

Top hat type TH35-15 rail conforming to IEC 60715; Top hat type TH35-7.5 rail conforming to IEC 60715; plate or panel with fixing kit

Height

90 mm

Width

23.65 mm

Depth

73.3 mm

Product weight

0.075 kg

IP degree of protection

IP20

Marking

CE

Product certifications

Merchant Navy; GOST; C-Tick; CSA HazLoc; CE; UKCA; RCM; EAC; CULus

Standards

CSA C22.2 No 213 Class I Division 2 Group A; CSA C22.2 No 213 Class I Division 2 Group B; CSA C22.2 No 213 Class I Division 2 Group C; CSA C22.2 No 213 Class I Division 2 Group D; UL 1604 Class 1 Division 2; CSA C22.2 No 142; IEC 61131-2; UL 508

Ambient air temperature for operation

-10…55 °C (horizontal installation); -10…50 °C (vertical installation)

Ambient air temperature for storage

-40…70 °C

Relative humidity

5…95 % without condensation

Operating altitude

0...2000 m

Pollution degree

2

Vibration resistance

3.5 mm (f = 5…8.4 Hz) on DIN rail; 3 gn (f = 8.4…150 Hz) on DIN rail; 3.5 mm (f = 5…8.4 Hz) on panel mounting; 3 gn (f = 8.4…150 Hz) on panel mounting

Shock resistance

15 gn for 11 ms

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

7.414 cm

Package 1 Width

10.483 cm

Package 1 Length

12.587 cm

Package 1 Weight

160.0 g

Unit Type of Package 2

S03

Number of Units in Package 2

18

Package 2 Height

30 cm

Package 2 Width

30 cm

Package 2 Length

40 cm

Package 2 Weight

3.631 kg

Unit Type of Package 3

P12

Number of Units in Package 3

144

Package 3 Height

75 cm

Package 3 Width

60 cm

Package 3 Length

80 cm

Package 3 Weight

40 kg

Country of origin

ID

Warranty (in months)

18

Power consumption

1.1 W

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Number of HW-interfaces other

1

With optical interface

No

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

No

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

Redundancy

No

Type of data transmission

Module rack extension

With potential separation

No

SIL according to IEC 61508

None

Suitable for safety functions

No

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

No

Explosion safety category for gas

None

Explosion safety category for dust

None

HS Code

8538.90
